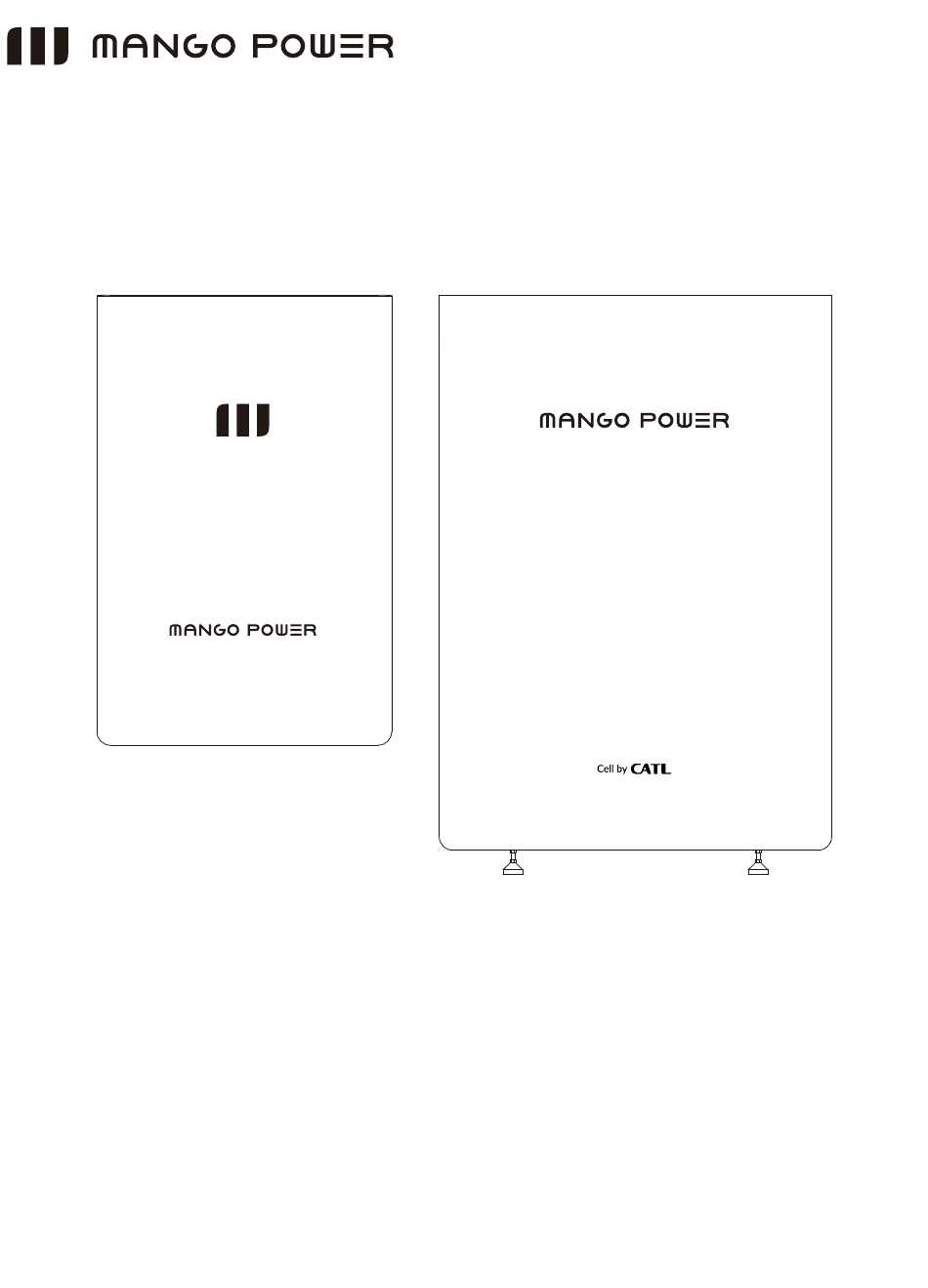

  • Page 1 MANGO POWER M User Manual...
  • Page 3 Do not clean the MANGO POWER M with any detergent or expose it to any flammable or irritating chemical substances or vapors. Do not apply a coating on any parts of the MANGO POWER M - including internal or external components such as the enclosure.

  • Page 5: Table Of Contents

    8.4 Connection Between M Hybrid Inverter 12kw And Multiple M Cabinets 8.4.1 M Hybrid Inverter Parallel System Connection 8.4.2 Wiring between a single M Hybrid Inverter and multiple M Cabinets 8.4.3 Wiring multiple M Hybrid Inverters to a single M Cabinet 8.4.4 Wiring between 10 M Hybrid Inverters and 40 M Cabinets...
  • Page 6 12.2.1 Notes On Indicator Lamps: 12.2.2 Troubleshooting 12.3 Troubleshooting According To M Smart Screen 12.3.1 States Indicated By M Hybrid Inverter Leds 12.3.2 Faults Display On M Smart Screen 12.3.3 Alarms Displayed On M Smart Screen 12.4 Replacement Of Inverter Fan 13 Appendix: Technical Data 13.1 Remote Start-Up/Stop Of Inverter And Alteration Of Parameter Settings...

  • Page 7: Product Introduction

    99.90% ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.
  • Page 8 10 years after the date of completion of installation and commissioning ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.
  • Page 9 15.4inches(390.0mm) ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.
  • Page 10 23.7inches(606.0mm) ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 11: What's In The Box

    M Smart Screen ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.
  • Page 12 User Manual ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 13: Installation Tools And Materials

    3.2inches(81.5mm) ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.
  • Page 14 DRY (NO/NC): Reserved ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 15: M Battery 5Kwh

    1.5s ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 16: M Cabinet

    ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 17: Wall Mounting

    “Instructions on Installation”. Installation should be carried out accurately and safely as described below. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 18: M Hybrid Inverter 12K Wall Mounting

    fix the wall-mounted bracket onto the wall. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 19: M Cabinet Wall Mounting

    ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 20: Installation Of M Battery 5Kwh And M Cabinet

    ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 21: Wiring

    M Cabinet and M Battery prior to removing the one between the M Hybrid Inverter and M Cabinet. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen,...

  • Page 22: Overview Of System Wiring

    fireproofing clay. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 23: Pv Connection

    Face the same direction ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 24: M Cabinet Connection

    To prevent damage to the inverter, avoid connecting the anode and cathode cables in reverse polarity. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen,...

  • Page 25: Grid & Backup Load Connection

    Lead capacity(Ah) ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.
  • Page 26 1/0~2/0AWG(55~70mm ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.
  • Page 27 ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.
  • Page 28 GRID ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 29: Generator System Connection

    Backup Panel ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.
  • Page 30 SoC. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 31: Ac Coupling Connection

    ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 32: Connection Between M Battery 5Kwh And M Cabinet

    ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.
  • Page 33 ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 34: Connection Between M Hybrid Inverter 12Kw And Multiple M Cabinets

    When the inverter is faulted, the user can toggle the loads to utility power. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen,...
  • Page 35 Generator ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.
  • Page 36 Lead capacity(Ah) ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.
  • Page 37 Toggle ON the CAN communication pin of the first and the last inverters. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.
  • Page 38 ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 39: Wiring Between A Single M Hybrid Inverter And Multiple M Cabinets

    ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.
  • Page 40 ④ ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 41: Wiring Multiple M Hybrid Inverters To A Single M Cabinet

    Have the other end of the combiner box connected to the household distribution box. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen,...

  • Page 42: Wiring Between 10 M Hybrid Inverters And 40 M Cabinets

    L1 and L2 in parallel with the Generator/BACKUP/On-Grid. The reading should be zero. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen,...

  • Page 43: Installation And Wiring Of M Smart Screen

    When the inverter is faulted, the user can toggle the loads to utility power. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen,...

  • Page 44: Charge First Mode

    Device info. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 45: Peak Load Shifting Of Grid

    The voltage in PV panels will drop to below 30V within 30 seconds. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 46: M Smart Screen

    BACKUP output. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 47: Parameter Settings

    Tapping the gear icon at the bottom allows you to access parameter settings of inverters. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen,...
  • Page 48 Device info. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.
  • Page 49 PV Arc fault clear ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 50: Start And Stop Inverters

    Inspect inverters every 6 months for anomalies in operation, heat, or noise parameters. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 51: M Battery Troubleshooting

    (e.g. SoC, cycles, protection records, etc.) will remain unchanged. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 52: Troubleshooting According To M Smart Screen

    ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 53: Alarms Displayed On M Smart Screen

    Para multi BM set ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.
  • Page 54 Check if the RSD switch is pressed. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 55: Replacement Of Inverter Fan

    /www.mangopower.com/us/support/download/index, or scan the QR code on the final page. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 56: Set Parameters As Per Rule21

    ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 57: Specified Power Factor (Spf)

    Under Excited ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.

  • Page 58: Constant Reactive Power Mode

    When setting the protection time, it needs to be converted into the number of cycles of the corresponding frequency. ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen,...

  • Page 59: Voltage-Watt (Vw)

    0.10% ©2023 MANGO POWER. All rights reserved. MANGO POWER, the MANGO POWER logo, MANGO POWER M, M Hybrid Inverter 12kW, M Battery 5kWh, M Smart Screen, MANGO POWER mPanel Smart, MANGO POWER App, and other trademarks or service names are the trademarks of MANGO POWER, inc. Date subject to change.
  • Page 60 Please scan this QR code for more product information...
