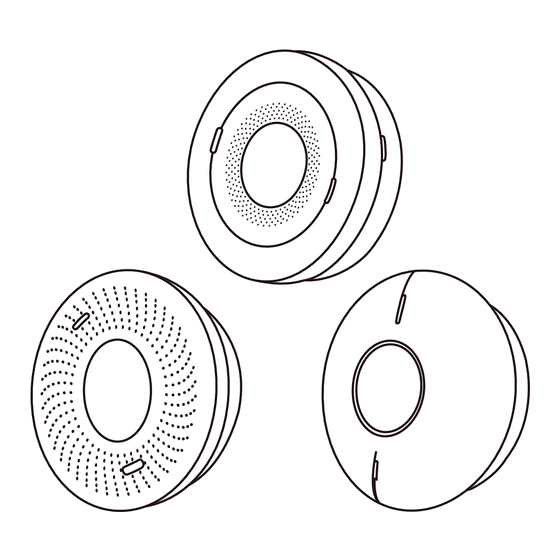

Combination Photoelectric

Smoke and Carbon

Monoxide Alarm

Model:AJ-730;AJ-731;

AJ-732;AJ-933;

AJ-938;AJ-939.

P/N 191111001-00 Rev.30

IMPORTANT!

PLEASE READ CAREFULLY AND SAVE

This user's manual contains important information about

your smoke and cO alarm's operation. lf you are

installing this smoke and CO alarm for use by others, you

must leave this manual or a copy of it with the end user.

Photoelectric alarms are generally more eﬀective at

detecting slow, smoldering ﬁres that smolder for hours

before bursting into ﬂame. Sources of these ﬁres may

include cigarettes burning in couches or bedding.

lonization alarms are generally more eﬀective at detecting

fast, ﬂaming ﬁres that consume combustible materials

rapidly and spread quickly.Sources of these ﬁres may

include ﬂammable liquids or paper burning in a waste

container.

For maximum protection, it is recommended to install

- 1 -

Table of Contents

Need help?

Do you have a question about the AJ-730 and is the answer not in the manual?

Questions and answers

Summary of Contents for Anka AJ-730

Page 1 Monoxide Alarm Monoxide Alarm Monoxide Alarm Monoxide Alarm Monoxide Alarm Monoxide Alarm Monoxide Alarm Model:AJ-730;AJ-731; AJ-732;AJ-933; AJ-938;AJ-939. P/N 191111001-00 Rev.30 IMPORTANT! PLEASE READ CAREFULLY AND SAVE This user's manual contains important information about your smoke and cO alarm's operation. lf you are installing this smoke and CO alarm for use by others, you must leave this manual or a copy of it with the end user.
Page 2: Table Of Contents
both ionization and photoelectric alarm. We provide two tags with important information about what to do in the case of co alerts.After installation, place one label next to the alarm and another label near a fresh air source, such as a door or window. CONTENTS 1.FUNCTION DESCRIPTION 2.IMPORTANT SAFETY INFORMATION...
Page 3: Important Safety Information
1. 5 Trouble: 2 beeps with 2 red ﬂashes,60 seconds pause, Please replace alarm. 1. 6 End of life: 2 chirps with 1 yellow led ﬂash,60 seconds pause.Deactivate and replace alarm. Test Press and hold the test bu to.lf the alarm is normal, 1.
Page 4 licensed, qualiﬁed electrician. Observe and follow all local and national electrical and building codes for installation. 2. 4 This smoke and CO alarm lS NOT designed to be the PRIMARY protection for buildings that require complete ﬁre alarm systems.Buildings of this type include hotels, motels, dormitories, hospitals, nursing homes, and group homes.This is true even if they were once single family homes.
Page 5: Where To Locate
detect combustion particles in the air.They do not sense heat, ﬂame, or gas.This smoke and CO alarm is designed to give audible warning of a developing ﬁre.However, many ﬁres are fast-burning, explosive, or intentional. Others are caused by carelessness or safety hazards.
Page 6 and CO alarm should be installed on the ground ﬂoor between the staircase and any rooms in which a ﬁre might start and on each story in circulation areas which form part of escape route (normally hallways and landings). Additional alarms should be installed in bedrooms in anticipation of ﬁres originating here, caused by faulty wiring, lights, appliances, smokers or other hazards.
Page 7 CAUTION: Research indicates that substantial increases in warning time can be obtained with each properly installed, additional alarm. It is strongly recommended that advice in 3.3 above be followed to ensure maximum protection. - 7 -...
Page 8 IMPORTANT: These alarms are intended to primarily for single-occupancy private dwellings.For use in other applications the manufacturer's advice must be sought. THIS EQUIPMENT SHOULD BE INSTALLED IN ACCORDANCE WITH THE NATIONAL FIRE PROTECTION AssOCIATION'S STANDARD 72 (National Fire Protection Association, Batterymarch Park, Quincy, MA 02269). ●For your information, the National Fire Alarm and Signaling Code,NFPA72, reads as follows: ●29.5.1 *Required Detection.
Page 9: Locations To Avoid
4.LOCATIONS TO AVOID DO NOT locate smoke and CO alarms: 4. 1 In turbulent air from fans, heaters, doors, windows, etc., which could draw smoke away from the alarm. 4. 2 ln high humidity area such as bathrooms and shower rooms, or where the temperature exceeds 37.8°C(100°F) or falls below 4.4°C(40°F), as high humidity can trigger nuisance alarm,...
Page 10 5. 1 Taking the bracket from the detector. Draw a horizontal or vertical line 6 inches (10cm) 5. 2 long on the area of ceilings or walls where this smoke and cO alarm is intended to locate (see Section 3 WHERE TO LOCATE) 5.
Page 11: Deactivation Of Alarm
OVER-TIGHT THE SCREWs, this will distort the mounting bracket. Attach the alarm to the mounting bracket and turn clockwise to lock into place. Test the smoke and cO alarm. See Section 8 TESTING THE smoke and CO alarm. When the alarm is ﬁrst installed on the mounting board, itwill automatically start the alarm.Once activated, the battery will power the alarm under normal conditions and will last for 10 years.
Page 12 1)Excessive spillage or reverse venting of fuel burning appliances caused by: i) Outdoor ambient conditions such as wind direction and/or velocity, including high gusts of wind; heavy air in the vent pipes(cold/humid air with extended periods between cycles). ii) Negative pressure diﬀerential resulting from the use of exhaust fans.
Page 13 young children and household pets may be the ﬁrst eﬀected.Familiarization with the eﬀects of each level isimportant. 8.TESTING THE SMOKE AND CO ALARM WARNING ●Test each smoke and CO alarm to be sure it is installed correctly and operating properly. ●The test button accurately tests all functions.
Page 14: Maintenance And Cleaning
9.MAINTENANCE AND CLEANING To ensure your alarm works normally, reach the service life that predicts, safeguard your life property safety, you should undertake cleanness according to the following speciﬁcation and maintain. 9.1 Test your alarm at least once a week. 9.2 Clean your alarm at least once a year;...
Page 15: What To Do When The Alarm Sounds
an alternate exit if the door is hot.INSTRUCT THEM NOT TO OPEN THE DOOR IF THE DOOR IS HOT, 10.4 Teach household members to crawl along the ﬂoor to stay below dangerous smoke, fumes, and gases. 10.5 Determine a safe meeting place for all members outside the building.
Page 16 11.2 WHEN THE CO ALARM SOUNDS WARNING! Actuation of your CO alarm indicates the presence of carbon monoxide (CO) which can KILL YOU.lf alarm signal sounds: 1)Operate reset/silence button; 2)Call your emergency services (Telephone Number [ﬁre department or 911]; 3) lmmediately move to fresh air - outdoors or by an open door/window.
Page 17 4)After following steps 1 - 3, if your alarm reactivates within a 24 hour period, repeat steps 1 - 3 and call a qualiﬁed appliance technician (Telephone Number ) to investigate for sources of CO from fuel burning equipment and appliances, and inspect for proper oper ation of this equipment.
Page 18: Limitations Of Smoke And Co Alarm
12.LIMITATIONS OF SMOKE AND CO ALARM Smoke and CO alarms have played a key role in reducing deaths resulting from home ﬁres worldwide. However, like any warning device, smoke and cO alarms can only work if they are properly located, installed , and maintained , and if smok ereaches the Alarms.They are not foolproof.
Page 19 electronic device, smoke and CO alarms are made of components that can wear out or fail at any time. You must test the unit weekly to ensure your continued protection. smoke and CO alarms cannot prevent or extinguish ﬁres.They are not a substitute for property or life insurance.
Page 20: Limited Warranty
AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO APERIOD OF TEN YEARS FOR THE smoke and CO alarm FROM PURCHASE DATE. ANKA Sci-Tech Co.,Ltd. 4th Floor, Building J, No.1, North District, Shangxue Technology Park, Bantian Street, Longgang District, Shenzhen, Guangdong, China.
