DENAS PCM 6 Operating Manual
  1. Manuals
  2. Brands
  3. DENAS Manuals
  4. Personal Care Products
  5. PCM 6
  6. Operating manual

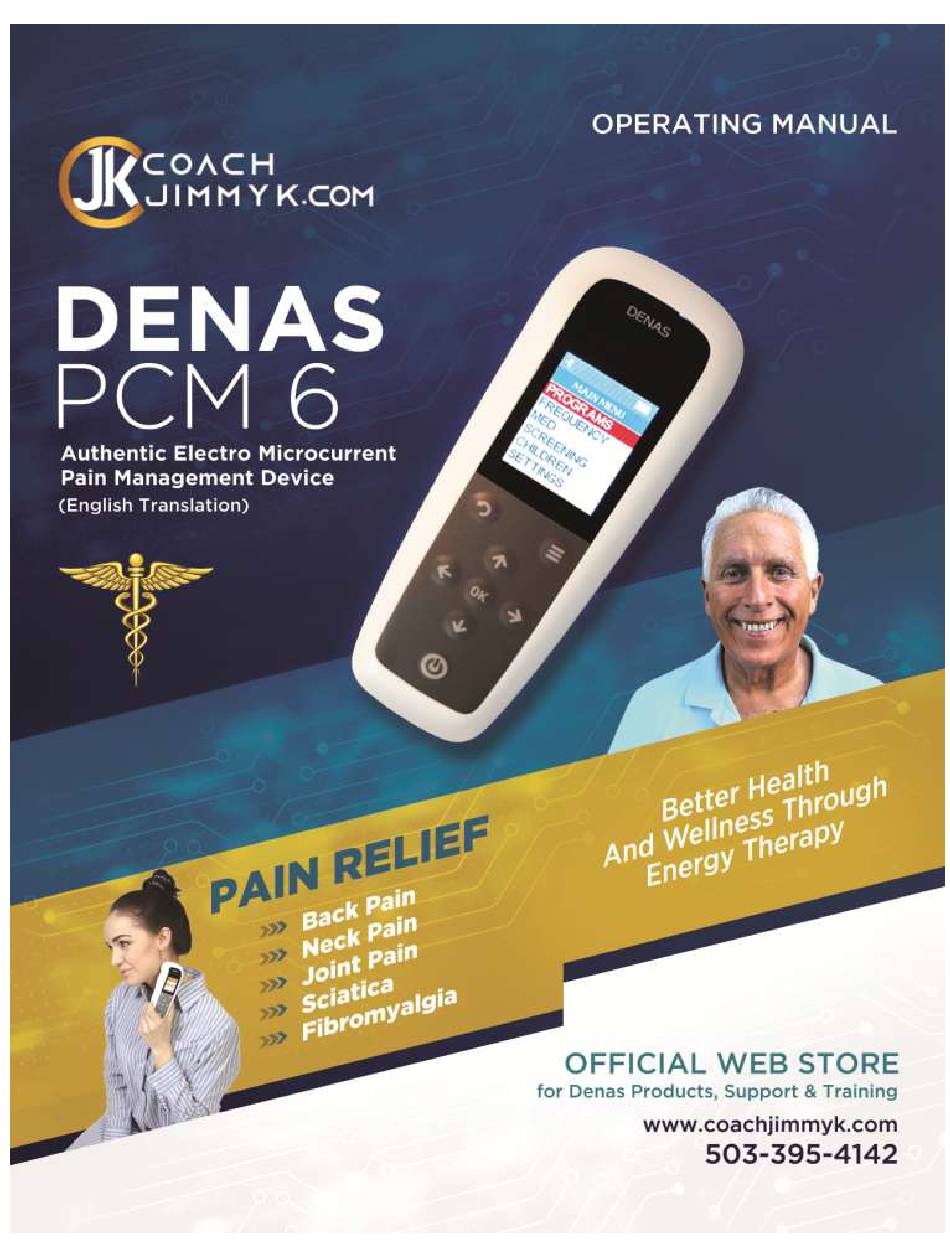

DENAS PCM 6 Operating Manual

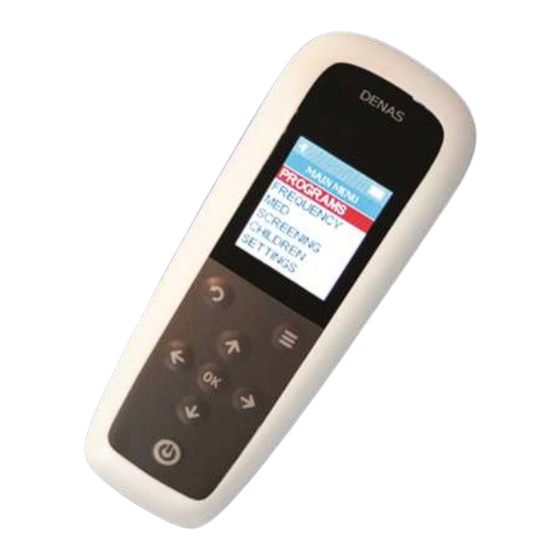

Authentic electro microcurrent pain management device
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCM 6 and is the answer not in the manual?

Questions and answers

Laura Gaspari
May 6, 2025

Hallo, would you Kindly answer to the following question please? Is the device effective in treatments of skin mycoses? If yes, can you please explain how? I mean program and/or frequency? Thank you so much !

0

Summary of Contents for DENAS PCM 6

  • Page 2: Table Of Contents

    – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training TABLE OF CONTENT Part 1. Technical Passport Part 2. Application instructions 1. Safety rules ..............1. Conducting treatment procedures ........ 2. Purpose............... Annex A. Accessories 3. Technical parameters ..........

  • Page 3: Purpose

    DENAS-PCM device can be used at healthcare centers and at home according to doctor’s instructions. The device should only be connected to external electrodes produced by the manufacturer (see Annex A).
  • Page 4 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training 3. SPECIFICATIONS 3.1 Electric impulse of the device have following output parameters : 3.1.1 Without load = 20 KOhm Minimum* Maximum** Capacity (in standard units) ≤ 40 ≤...
  • Page 5 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training R1 56±5% kOhm R2 470±5% kOhm C1 6200±20% pF 3.2 The device allows setting the following impulse frequencies, Hz : 3.2.1 Range 1 : 1.0 to 9.9 with pitch of 0.1±0.05.
  • Page 6 3.9 Electromagnetic Radiation Test Conformity to IEC 60601-1-2 Conditions of Use Radiofrequency Class B DENAS-PCM Electrical Stimulator can be used in all types of institutions and at home as well radiation CISPR 11 Group 1 DENAS-PCM emits very little radio-frequency radiation that cannot lead to failure of electronic equipment located nearby 3.10 Resistance to radio-frequency radiation...

  • Page 7: Elements Of The Device

    3.13.2 DENAS-PCM device uses electromagnetic power for its internal functions only; therefore, the device emits minimum radiation and does not affect the electronic equipment located nearby.
  • Page 8 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Figure 2 — DENAS-PCM device (bottom view) The device can be connected to external therapeutic electrodes of manufacturer’s model 27 range (see Annex ). Attention! External therapeutic electrodes can only be used for Frequency and Programs modes In order to improve the contact you can moisture skin with water or with Malavtilin cream or with Baby-DENS cream for children before applying the electrodes.
  • Page 9 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training 5.1.3 Clock and Alarm Clock Settings 5.1.4 Stimulation Mode 5.1.5 Intensity level settings 5.1.6 MED and Screening Modes DiaDENS PCM 6 2017 – Operating Manual Shop at -...

  • Page 10: Sequences Using The Device

    – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training 6. SEQUENCES USING THE DEVICE 6.1 Switching on. Press button . After playing the sound signal and startup screen the device shows: - Main Menu if Last Settings Recording Function is disabled;...
  • Page 11 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Choose the necessary program by using keys in the opened section. 1.1.1 The device will show the chosen mode. On the display will appear recommended zone for application.
  • Page 12 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Minimum effective dose (MED) Select MED mode in Main Menu by using navigation keys confirm your choice by pressing The device will show MED mode. Set the necessary intensity with and keys.
  • Page 13 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training The device has a function of limiting the intensity for sessions with the children. Set the child’s age by using keys and confirm your choice by pressing .
  • Page 14 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Brightness Menu (Display Brightness adjustment) Select Settings section in Main Menu by using navigation keys and confirm your choice by pressing Select Brightness in Settings Menu by using...
  • Page 15 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Last Settings Recording Menu (Recording of last settings) Select Settings section in Main Menu by using keys and confirm your choice by pressing Select Recording in Settings Menu by using...
  • Page 16 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Alarm Clock Menu (Alarm Clock Settings) Select Settings section in Main Menu by using keys and confirm your choice by pressing Select Alarm Clock in Settings Menu by using...
  • Page 17 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training 6.7.1 The user interface of the device is available in five languages: Russian, English, German, Italian, and French. Use keys to select the necessary language in Language Menu and confirm your choice by pressing key.

  • Page 18: Maintenance

    – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Timer Menu Timer Function is necessary when it is not possible to control the time of stimulation (in case of electrical stimulation of hard-to-reach zones) or when the time of stimulation is strictly specified.

  • Page 19: Troubleshooting

    – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training 10. TROUBLESHOOTING DEFECT PROBABLE REASON REMEDY Place a new set of batteries (see Section 9, 1) The device does not Batteries are missing Battery Replacement Procedure)

  • Page 20: Manufacturer's Warranty

    – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training 12) The device does not Children’s Doctor Function is Disable Children’s Doctor Function (see item 7.2 provide intensity more than 5 Children’s Doctor Function). enabled. units.

  • Page 21: Part 2. Application Instructions

    – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training PART 2 – Application Instructions 1. CONDUCTING TREATMENT PROCEDURES 1.1 General information Stimulation of reflexogenic zones and points with impulse current for prevention, treatment and recovery of body functions is an efficient method of health improvement.
  • Page 22 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training 1.3 Conditions for Treatment Sessions. No special conditions for treatment needed. You can conduct the sessions on your own or with the help of an operator who will stimulate those zones and points which cannot be reached and treated on one’s own.
  • Page 23 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training 1.4.3.2 Comfort level — sensations are above the sensitivity threshold. There is painless vibration, prickly sensation or light burning sensation under the electrodes. This intensity level is used more often.
  • Page 24 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training HYPOTONIA Neck and collar area 2nd cervical vertebra area HEAD Neck and collar area Hands, head area according to Su Jok Hands, head area according to Su Jok...
  • Page 25 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Administration of Treatment Modes Mode, Frequency, Intended Use 1,0…9,9 Frequency range of 1.0–4.0 Hz is used for direct stimulation of lymphoid, bone and connective tissues. Frequency range of 4.0 up to 7.0 Hz is used for direct stimulation of autonomic nervous system.
  • Page 26 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Sequences Using the Menu keys to select Screening in Main Menu and press The device is ready for operation. For getting started, apply the electrodes on the skin. The device will start operating when the electrodes contact the skin.
  • Page 27 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training ANNEX A – Accessories External zonal therapeutic electrodes Designed for therapeutic non-invasive treatment of pains, lesion focuses, and stimulation of reflexogenic zones (where skin is not damaged).
  • Page 28 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training ANNEX B – Zone Atlas for Using Programs Menu Rules of using the Atlas Attention! This Manual contains zones and modes of the common illnesses and diseases. You can find additional information about treatment and prevention capacities of dynamic electrical nerve stimulation devices in Practical Guidance for Electrical Nerve Stimulation.
  • Page 29 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training ALPHABETICAL INDEX OF PROGRAMS Abdominal pain ........34 Diarrhea ..........Joints ..........Allergy ..........Dystonia ..........Kidneys ..........Asphyxia ..........Gynecological pain ......Muscles ..........Back ...........
  • Page 30 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training ALLERGY Program PAIN program INTENSE PAIN program DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 31 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training DYSTONIA program (vegetative dystonia) BLOATING program GYNECOLOGICAL PAIN program DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 32 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training GYNECOLOGY program HYPERTENSION program HYPOTONIA program DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 33 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training HEAD program THROAT program DIARRHEA program DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 34 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training ABDOMINAL PAIN program (stomachache) CONSTIPATION program COUGH program DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 35 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training MUSCLES program COLD program POTENCY program DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 36 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training KIDNEYS program BACK program JOINTS program DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 37 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training www.coachjimmyk.com...
  • Page 38 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training NAUSEA program TRAUMA program ASPHYXIA program DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 39 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training ANNEX C – ZONE ATLAS FOR USING FREQUENCY MENU Attention! The treatment methods described in the Atlas are given for reference only and they cannot substitute a consultation with a medical specialist.
  • Page 40 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Additional zones TRACHEITIS, BRONCHITIS, PNEUMONIA Main zones Additional zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 41 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training BRONCHIAL ASTHMA Main zones Additional zones LARYNGITIS, PHARYNGITIS, TONSILLITIS, ANGINA (sore throat, hoarse voice) Main zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 42 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Additional zones EARACHE (otitis), LOSS OF HEARING (sensorineural hearing loss) Main zones Additional zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 43 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training NAUSEA, VOMITING, BLOATING, STOMACHACHE Main zones Additional zones CONSTIPATION Main zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 44 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training www.coachjimmyk.com...
  • Page 45 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Additional zones DIARRHEA Main zones Additional zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 46 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training HEMORRHOIDS Main zones Additional zones PAIN IN THE JOINTS (arthritis, arthrosis) Main zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 47 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Additional zones NECK PAIN AND BACKACHE (vertebral osteochondrosis, diskogenic radiculopathy, lumbodynia, ischias) Main zones Additional zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 48 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training MICRO-RUPTURES (tension) OF LIGAMENTS, TENDONS, AND MUSCLES, JOINT DISLOCATIONS, MENISCUS INJURIES Main zones Additional zones WOUNDS, CUTS, GRAZES, BURNS Main zones DiaDENS PCM 6 2017 – Operating Manual...
  • Page 49 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Additional zones NEPHROCOLICA, FREQUENT AND PAINFUL URINATION (pyelonephritis, cystitis, urethritis) Main zones Additional zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 50 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training MENSTRUAL DISORDER, INFERTILITY Main zones Additional zones LOWER ABDOMINAL PAIN (algodismenorrhea, inflammatory diseases of femal reproductive organs) Main zones DiaDENS PCM 6 2017 – Operating Manual...
  • Page 51 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Additional zones PLUGGED DUCT, LACTATIONAL MASTITIS Main zones Additional zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 52 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training LOWER ABDOMINAL PAIN AND GENITALS PAIN (prostatitis, urethritis, orchitis, algodismenorrhea) Main zones Additional zones MALE SEX FUNCTION DISORDER, PROSTATITIS Main zones DiaDENS PCM 6 2017 – Operating Manual...
  • Page 53 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Additional zones SKIN DISEASES (psoriasis, eczema, neurodermatitis, dermatitis, allergy) Main zones Additional zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 54 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training ESTHETICS, FACIAL CARE Main zones Additional zones CELLULITE, OBESITY Main zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 55 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Additional zones HEADACHE, GIDDINESS Main zones Additional zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 56 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training FACE PAIN (trifacial neuralgia, Bell’s palsy) Main zones Additional zones LOGONEUROSIS, STAMMERING Main zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 57 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Additional zones NEUROSIS, NEUROSIS-LIKE CONDITIONS, ANXIETY, STRESS Main zones Additional zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 58 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training HEARTACHE (cardialgia, myocardiodystrophy, coronary heart disease) Main zones Additional zones ARTERIAL HYPERTENSION (hypertensive disease) Main zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 59 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Additional zones ARTERIAL HYPOTENSION Main zones Additional zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 60 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training HEAVY LEGS, EDEMA, VARICOSE VEINS (chronic venous insufficiency syndrome, varicose lower limbs disease) Main zones Additional zones LEG PAIN, INTERMITTENT LAMENESS (lower limbs artherosclerotic vascular disease), DIABETIC ANGIOPATHY, VIBRATION SYNDROME (Peripheral arterial...
  • Page 61 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training EYE OVERSTRAIN, REFRINGENCE DISORDER (astigmatism, spasm of accommodation, short sight, long sight), GLAUCOMA, CATARACT, INFLAMMATORY EYE CONDITIONS Main zones Additional zones DiaDENS PCM 6 2017 – Operating Manual...
  • Page 62 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training TOOTHACHE, STOMATITIS, PERIODONTITIS Main zones Additional zones THYROID GLAND DISEASES Main zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 63 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training Additional zones LOSS OF CONSCIOUSNESS (faint, shock, uncertain situation) Main zones Additional zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 64 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training FEVER (body fever heat) Main zones Additional zones DiaDENS PCM 6 2017 – Operating Manual Shop at -...
  • Page 65 – www.denaspainreliefstore.com – Phone 503-395-4142 Official Web Stores for DENAS Products, Support & Training DiaDENS PCM 6 2017 – Operating Manual Shop at -...
