Summary of Contents for FIRST LOVE E17

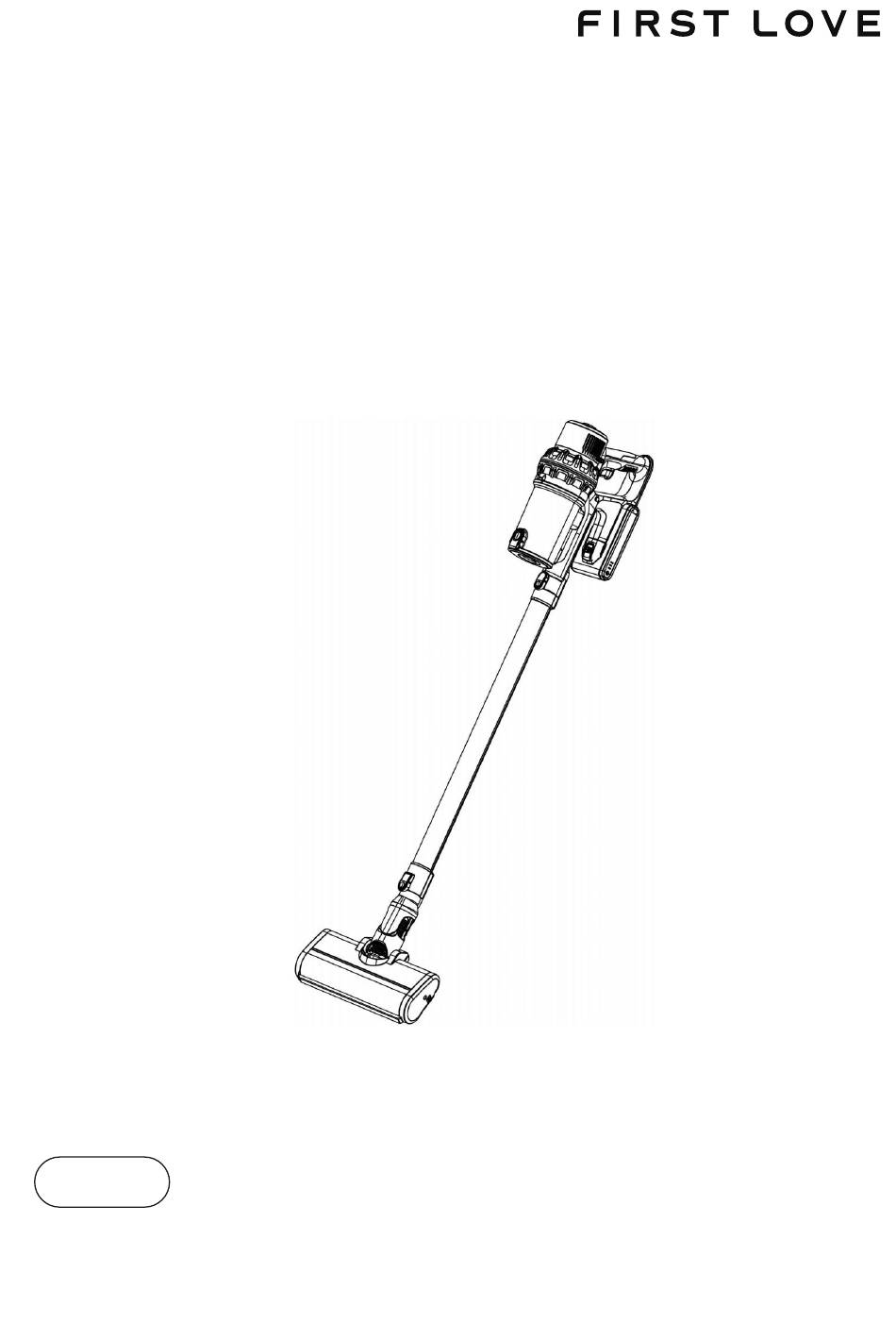

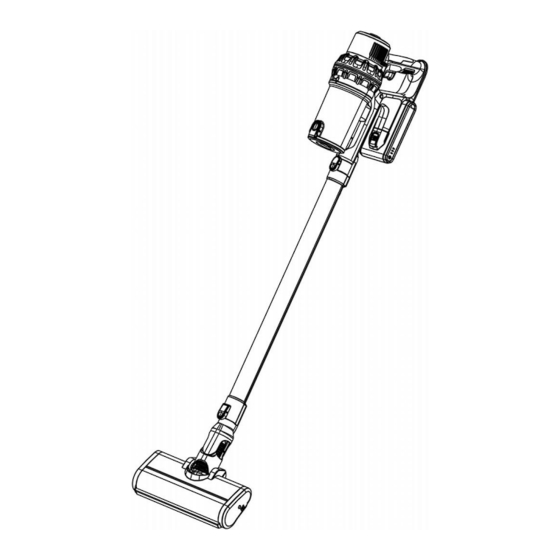

- Page 1 Wireless Handheld Vacuum Cleaner User Manual Please read the instructions carefully before using the appliance.
- Page 2 This user manual involves how to use the appliance safely and correctly，please read it carefully before using to get an ideal operating result. This user manual is updating till printing，brand FIRST LOVE .reserves the right of revising and explaining.We will continue to improve the appliance and the right of revising this manual without any notice.
-
Page 3: Table Of Contents
Contents 1. Cautions ---------------------------------------- 1 2. Parts name --------------------------------------- 2 3. What's in box ------------------------------------ 2 4. Parts connection ---------------------------------- 3、4 5. How to use -------------------------------------- 4 6. Cleaning and parts replacement -----------------------5、6 7. Q&A -------------------------------------------- 7 8. Technical parameters ------------------------------- 7 9. -
Page 4: Cautions
1. Cautions Before use, carefully read all the contents in this manual book. This is a dry type rechargeable handheld vacuum cleaner. It can not be used to vacuum water, detergent, and other liquids, and wet surface articles. Liquids will damage the cleaner, such as short current or motor burning down. -
Page 5: What's In Box
1. dust cup 2. dust cup release button 3. tube release button 4. conductive tube 5. brush release button 6. electric brush 7. motor and dust cup release button 8. trigger button 9. max speed switch 10. battery pack 11. battery pack release button 12. -
Page 6: Parts Connection
4. Parts connection 4-1 Battery pack assembly 4-2 Motor and dust cup assembly Insert the battery pack into the bottom of the Clamp the hook at the bottom of the motor dust body until you hear a "click" locking sound. Pay cup assembly into the corresponding part of the attention to direction (as shown) . -
Page 7: How To Use
4-6 Attachment connection to handheld components Insert the attachment into the interface of the handheld component until you hear a "click" locking sound. (As shown in the figure) 4-7 Use of wall mount 1. Take out the hanger and secure it to the wall. 2. -
Page 8: Cleaning And Parts Replacement
2. Insert the 2-in-1 flat suction into the suction port of the host machine, and then push the brush head back to the end to clean the bed, curtain, sofa surface and other places. 5-3 Use of accessories (use of crevice brush) Insert the crevice brush into the suction mouth of the host machine to clean the cracks of the sofa and the skirting line of the wall. - Page 9 6-2 Clean the dust cup 1. Press the release button of dust cup 2. Hold the dust cup with one hand and the bottom cover to open the dust cup bottom motor assembly with the other hand and rotate cover, you can dump the garbage in the dust counterclockwise until the dust cup assembly cup.
-
Page 10: Q&A
6-3 Clean the electric floor brush 1. Push down the left slide button of the ground brush and lift the roller brush handle to remove the roller brush. (As shown in the figure) 2. Remove and clean the roller brush, and then assemble it in the opposite order to disassemble it. Reset the handle of the roller brush. -
Page 11: Technical Parameters
8. Technical parameters Model Rated voltage 22.2Vdc Rated input power 200W Battery capacity 2200mAh Working time 20-40 min Vacuum 25Kpa 9. Circuit diagram Battery pack Coupling seat Electric Adapter brush motor Charge and discharge motherboard Coupling seat Motor...
