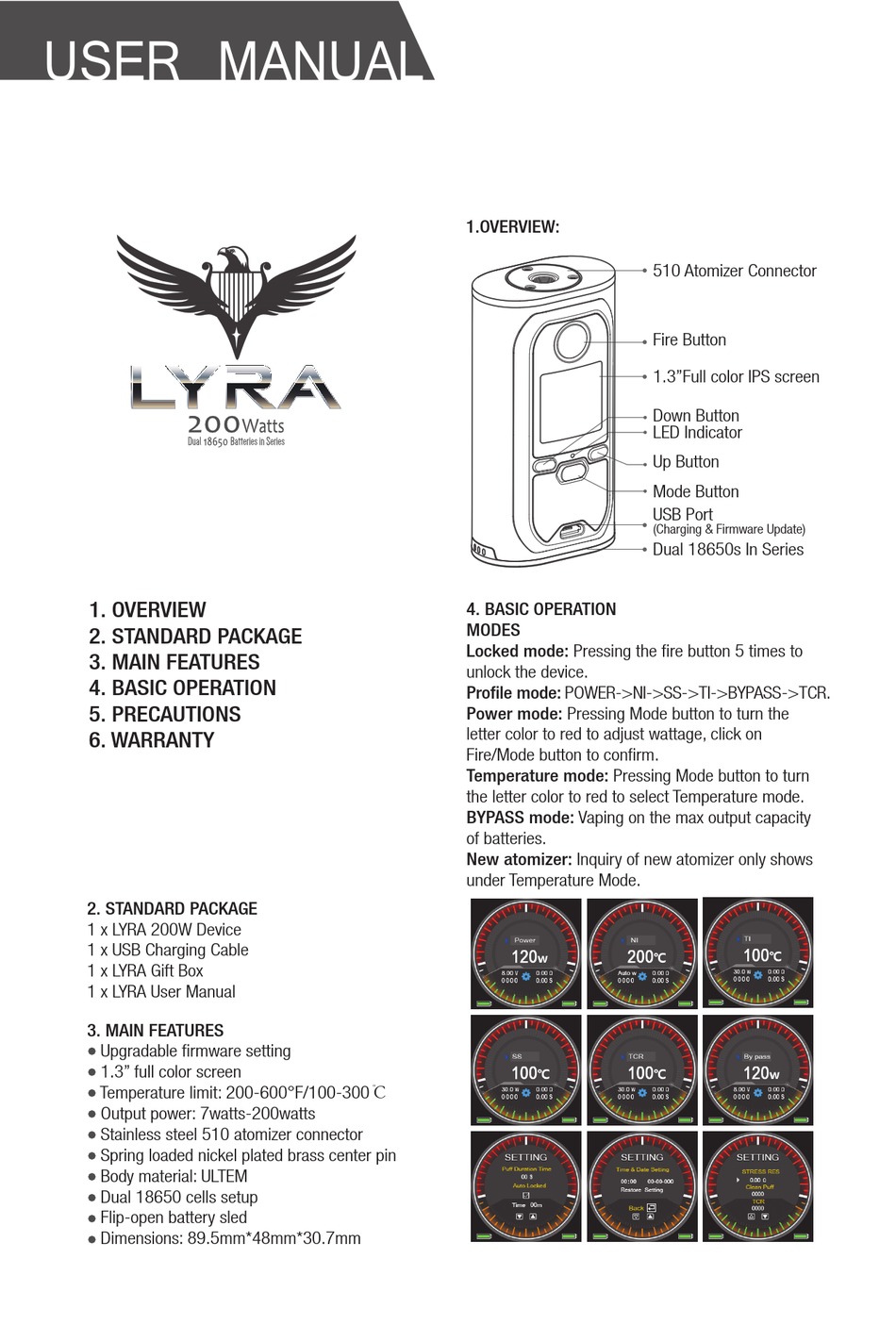

USER MANUAL
1. OVERVIEW
2. STANDARD PACKAGE
3. MAIN FEATURES
4. BASIC OPERATION
5. PRECAUTIONS
6. WARRANTY
2. STANDARD PACKAGE
1 x LYRA 200W Device
1 x USB Charging Cable
1 x LYRA Gift Box
1 x LYRA User Manual
3. MAIN FEATURES
Upgradable firmware setting
1.3" full color screen
Temperature limit: 200-600°F/100-300℃
Output power: 7watts-200watts
Stainless steel 510 atomizer connector
Spring loaded nickel plated brass center pin
Body material: ULTEM
Dual 18650 cells setup
Flip-open battery sled
Dimensions: 89.5mm*48mm*30.7mm
1.OVERVIEW:
4. BASIC OPERATION
MODES
Locked mode: Pressing the fire button 5 times to
unlock the device.
Pro le mode: POWER->NI->SS->TI->BYPASS
Power mode: Pressing Mode button to turn the
letter color to red to adjust wattage, click on
Fire/Mode button to confirm.
Temperature mode: Pressing Mode button to turn
the letter color to red to select Temperature mode.
BYPASS mode: Vaping on the max output capacity
of batteries.
New atomizer: Inquiry of new atomizer only shows
under Temperature Mode.
510 Atomizer Connector
Fire Button
1.3"Full color IPS screen
Down Button
LED Indicator
Up Button
Mode Button
USB Port
(Charging & Firmware Update)
Dual 18650s In Series
->TCR.
