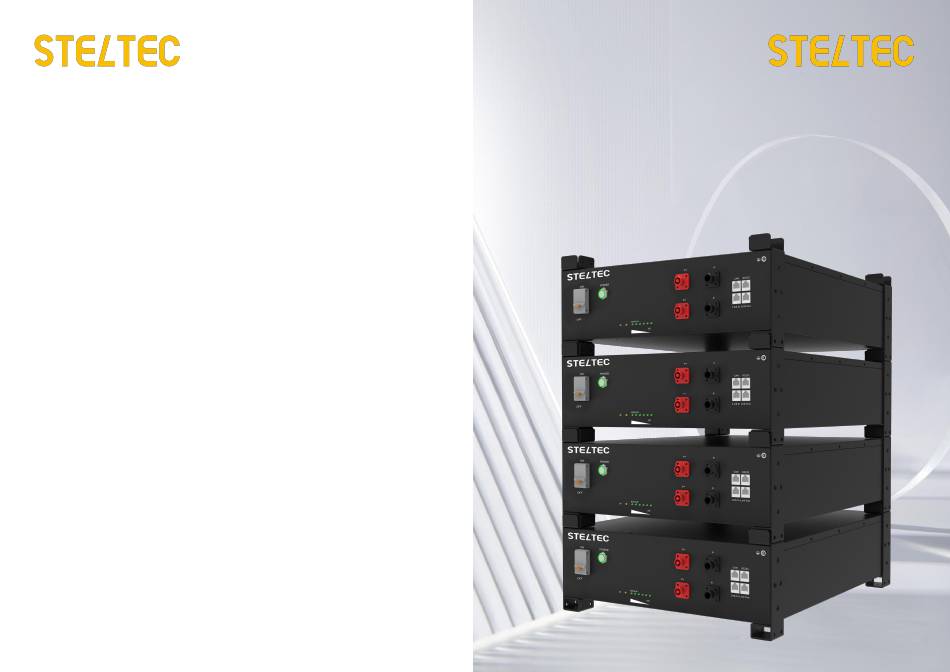

- Page 1 Shanghai Steltec Energy Technology CO.,LTD Address:Room J4986, Floor1, NO.185, Moyu Road , Anting Town, Jiading District, Shanghai China www.steltec-ess.com V1.0-2023-03-06...
-
Page 2: Table Of Contents
Basic-L1 Operation Manual This Manual introduces Basic-L1 from STELTEC. Basic-L1 is a Low-voltage Lithium-ion Phosphate Battery storage system. Please read this manual before you install the battery and follow the instruction carefully during the installation process. Any confusion, please contact STELTEC immediately for advice and clarification. - Page 3 Shanghai Steltec Energy Technology CO.,LTD Product Type Basic-L1 1.Technical Specication Technical Specification Battery Model BU 5220 Battery System Capacity 5.22kWh Cell Technology Li-ion(LFP) Battery Cell Capacity 102Ah Configuration 1P16S Nominal Voltage 51.2 V Operating Voltage Range 45.6~56.2V 440*550*130(mm) Dimension (W*D*H) 17.32*21.65*5.12(inch)
-
Page 4: Safety Information
Shanghai Steltec Energy Technology CO.,LTD 2.Safety Information Do not place battery in an area accessible by children or pets. 2 . 1 General Safety Do not touch the energized battery, the temperature of the battery enclosure Please carefully read the manual safety precautions and observe all the safety instructions may increase during operation. -
Page 5: Transportation Safety
Shanghai Steltec Energy Technology CO.,LTD Electrical Safety Environment Safety Ensure the battery is installed in a dry and well-ventilated location. Before installation, ensure that the equipment is intact. Otherwise, electrics hocks or fire may occur. The installation position must be away from direct sunlight and rain. -
Page 6: Product Overview
Basic-L1 has built-in BMS (Battery Management System), which can manage Turn on a single Basic-L1, turn on the air switch, then press the circular button and monitor cells information including voltage, current and temperature. (more than 3 seconds) on / off button, the LED flashes and the battery works Besides that, BMS can balance cells charging to extend cycle life. -
Page 7: Led Indicator Definition
Press the circular button of the master battery for more than 3 seconds, and then Status Discharge release the button. When all slave battery are closed, the master battery will be Battery Level Indicator closed (sleep mode). For a single Basic-L1, turn off the circular button. For multiple ● ● ● ●... -
Page 8: Installation Guide
Shanghai Steltec Energy Technology CO.,LTD 4.INSTALLATION GUIDE Installation flow chart Check Before Prepare Determine The Start Installation Installation Tools Installation Position Electrical Install Wall Install Battery Connection Bracket 4.1 Checking Before Installation 4.1.1 Checking Outer Packing Materials Packing materials and components may be damaged during transportation. -
Page 9: Tools
Shanghai Steltec Energy Technology CO.,LTD 4.2 Tools 4.4 Installation Instructions Model Tools 4.4.1 Dimensions Knife Measuring tape Socket wrench （10/16mm） Installation Rubber mallet Cross Screwdriver Hammer drill（10mm） ESD gloves Safety goggles Anti-dust respirator Protection Safety shoes 4.3 Installation environment requirements •... -
Page 10: Installation Procedure（Rack Mounted
Shanghai Steltec Energy Technology CO.,LTD 4.4.2 Installation Procedure（Rack Mounted） STEP 3 STEP 1 The battery with the Stacking brackets is stacked like below. Remove the Handles from the battery. Stacking brackets Handle STEP 2 Install Stacking brackets at the four corners of the battery. -
Page 11: Wiring Steps
Shanghai Steltec Energy Technology CO.,LTD 4.4.3 Wiring Steps STEP 4 When multiple batteries are connected in parallel, follow the STEP 1 following wiring mode. Connected to ground. to PCS CAN Port CAN RS232 MASTER Link In Link Out STEP 2 CAN RS232 Connecting power cables. -
Page 12: Commissioning Procedure
Shanghai Steltec Energy Technology CO.,LTD 6.MAINTENANCE 6.1 Recharge Requirements During Normal Storage Battery should be stored in an environment with temperature range between -10°C ~+45°C, and maintained regularly according to following table with 0.5C (50A) current till 50% SOC after long storage time.
