WARNING:
This Unit employs Components that tend to produce arcs or sparks – To
prevent fire or explosion, do not install in compartments containing
batteries or flammable materials - SHOCK HAZARD. DO NOT OPEN.
CAUTION:
OUTPUT NON-SINUSOIDAL REFER TO MANUAL - Provided with integral
protection against overloads. To Prevent fire, do not cover or obstruct
ventilation openings. Do not mount in Zero-Clearance compartment.
Overheating may result. For continued protection against risk of fire,
replace only with the same type and fuse rating: 8A
Notice :
The output of this device is not sinusoidal. It has a total harmonic distortion
of 30% percent and maximum single harmonic of 8 percent
Toll Free 1 866 295 6775
www.PowerBright.com
Printed in China

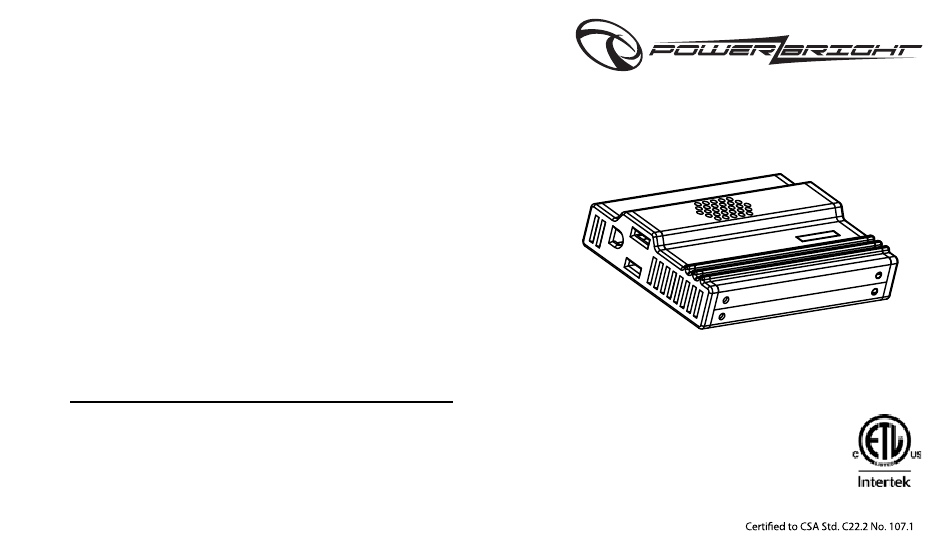

XR175
Owner's Guide
3149458
Conforms to UL Std. 458，
Advertisement
Table of Contents
Related Manuals for Power Bright XR175
Summary of Contents for Power Bright XR175
- Page 1 Notice : The output of this device is not sinusoidal. It has a total harmonic distortion of 30% percent and maximum single harmonic of 8 percent Toll Free 1 866 295 6775 XR175 www.PowerBright.com Owner's Guide 3149458 Printed in China...
-
Page 2: Important Safety Information
AC outlet and USB port. Read this guide before connecting or using the XR175 and save it for future reference. We hope you enjoy using your XR175 and if you require any assistance, please contact our help desk: www.PowerBright.com or toll free: 1.866.295.6775... - Page 3 Do not use the XR175 in the presence of flammable fumes or gases, such as in the bilge of a gasoline powered boat, or near propane tanks. Do not use the XR175 in an enclosure containing automotive-type, lead-acid batteries.
- Page 4 CAUTION: Risk of Fire. Do not replace any vehicle fuse with a rating higher than recommended by the Vehicle Manufacturer. Ensure that the electrical system in your vehicle can supply this product without causing the vehicle fusing to open. This can be determined by making sure the fuse in the vehicle which protects the outlet is rated higher than 8 amperes.
- Page 5 CAUTION Do not connect live AC power to the XR175's AC outlets. This will damage the inverter, and the damage is not covered by warranty. Do not connect any AC load that has its neutral...
-
Page 6: Additional Safety Guidelines
Failure to follow these safety guidelines may cause personal injury and/or damage to the XR175 It may also void your product warranty. 3 Safety Features These advanced safety features are built into the XR175 • Overload protection with automatic shutdown •... -
Page 7: Inverter Features

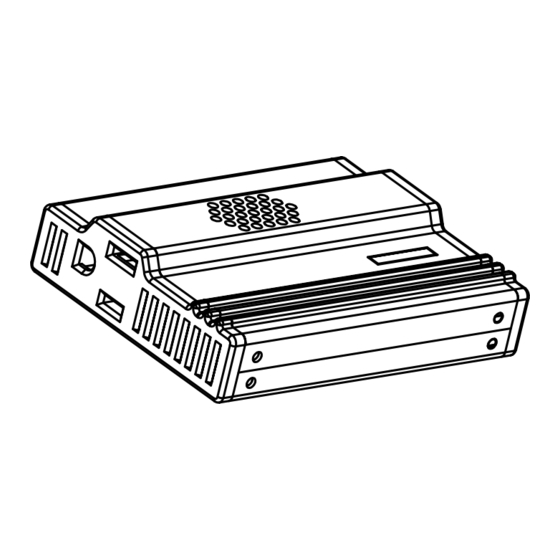

4 Inverter Features PowerBright® XR175 Power/Fault light ON/OFF switch DC cable Port USB port Ventilation openings AC Outlet Figure 1 Features and Accessories... -
Page 8: Using The Inverter
5 Using the Inverter Through its AC outlet, the XR175 is capable of powering most 120V AC products that use 175W or less. The XR175 can also power or charge most consumer electronics that have USB power ports. The XR175 ’s AC output waveform, called “modified sine wave”... - Page 9 Plug a DC cable into a DC cable port on the XR175 and connect to a 12V battery. Observe correct polarity. See figure 2. Plug the device you want to operate into the...
-
Page 10: Inverter Operation
• As the bat tery is used, its voltage begi ns to fall. When th e XR175 senses that the voltage at its DC input has droppe d to 10.5V, the inverter aut omatically shuts down and the light glows RED, indicating a fault. - Page 11 Vehicle batteries are designed to provide brief periods of very high current needed for engine starting. They are not intended for constant deep discharge. Regularly operating the XR175 from a vehicle battery until low-voltage shutdown occurs will shorten the life of the battery.
-
Page 12: Battery Operating Time
The XR175 can operate while the engine is running, but the normal voltage drop that occurs during starting of the engine may trigger the... - Page 13 Buzzing sound in audio systems and radios Some inexpensive stereo systems and AM-FM radios have inadequate internal power supply filtering and will “buzz” slightly when powere d by the XR175 . Generally, the only solution is an audio product with a higher quality filter.
-
Page 14: Troubleshooting
7 Troubleshooting PROBLEM: AC product will not operate; no inverter lights are Possible cause Solution Battery is defective. Check battery and replace if required. Loose connections. Check connections. PROBLEM: Measured inverter output is too low. Possible cause Solution Standard “average- Inverter’s “modified sine reading”... - Page 15 Possible cause Solution Battery voltage is too low. Recharge battery. PROBLEM: AC product will not operate, RED FAULT light ON. Possible cause Solution AC product(s) connected Use a product with a power are rated at more than the rating less than the inverter’s inverter’s continuous continuous power rating.
-
Page 16: Specifications
8 Specifications Specifications are subject to change without notice. AC Power Outpu t 120VAC/60Hz 175W AC output voltage (nominal) 175W Continuous AC output power 350W Peak AC output power AC output frequency 60 ± 1Hz AC output waveform Modified sine wave USB Power Outpu t DC output voltage 5V DC... - Page 17 DC Power DC input voltage range 13.8V DC, 17.5A Max Battery drain with no AC load 0.33A (at 12 V input) Efficiency (maximum) Low battery shutdown point (nominal) 10.5V High battery shutdown point 15.5V (nominal) Physical Dimensions (L × W × H) 4 x 2.8 x 0.9 (inches) .
-
Page 18: Warranty And Return
What does this warranty cover? This Limited Warranty is provided by PowerBright ("PowerBright") and covers defects in workmanship and materials in your XR175. This warranty period lasts for 24 months from the date of purchase at the point of sale to you, the original end user customer. - Page 19 shipment to the customer, whichever is greater. All replaced products and all parts removed from repaired products become the property of PowerBright. PowerBright covers both parts and labor necessary to repair the product, and return shipment to the customer via a PowerBright selected non-expedited surface freight within the contiguous United States and Canada.
- Page 20 What does this warranty not cover? This Limited Warranty does not cover normal wear and tear of the product or costs related to the removal, installation, or troubleshooting of the customer's electrical systems. This warranty does not apply to, and PowerBright will not be responsible for, any defect in or damage to: the product if it has been misused, neglected, improp- erly installed, physically damaged or altered, either...
- Page 21 Warning: Limitations On Use Please refer to your product manual for limitations on uses of the product. XR175 SPECIFICALLY, PLEASE NOTE THAT THE SHOULD NOT BE USED IN CONNECTION WITH LIFE SUPPORT SYSTEMS OR OTHER MEDICAL EQUIPMENT OR DEVICES.
-
Page 22: Return Material Authorization Policy
Return Material Authorization Policy Before returning a product directly to PowerBright you must obtain a Return Material Authorization (RMA) number and the correct factory "Ship To" address. Products must also be shipped prepaid. Product shipments will be refused and returned at your expense if they are unauthorized, returned without an RMA number clearly marked on the outside of the shipping box, if they are shipped collect, or if they are shipped to the wrong location. -
Page 23: Return Procedure
Return Procedure Package the unit safely, preferably using the original box and packing materials. Please ensure that your product is shipped fully insured in the original packaging or equivalent. This warranty will not apply where the product is damaged due to improper packaging.
