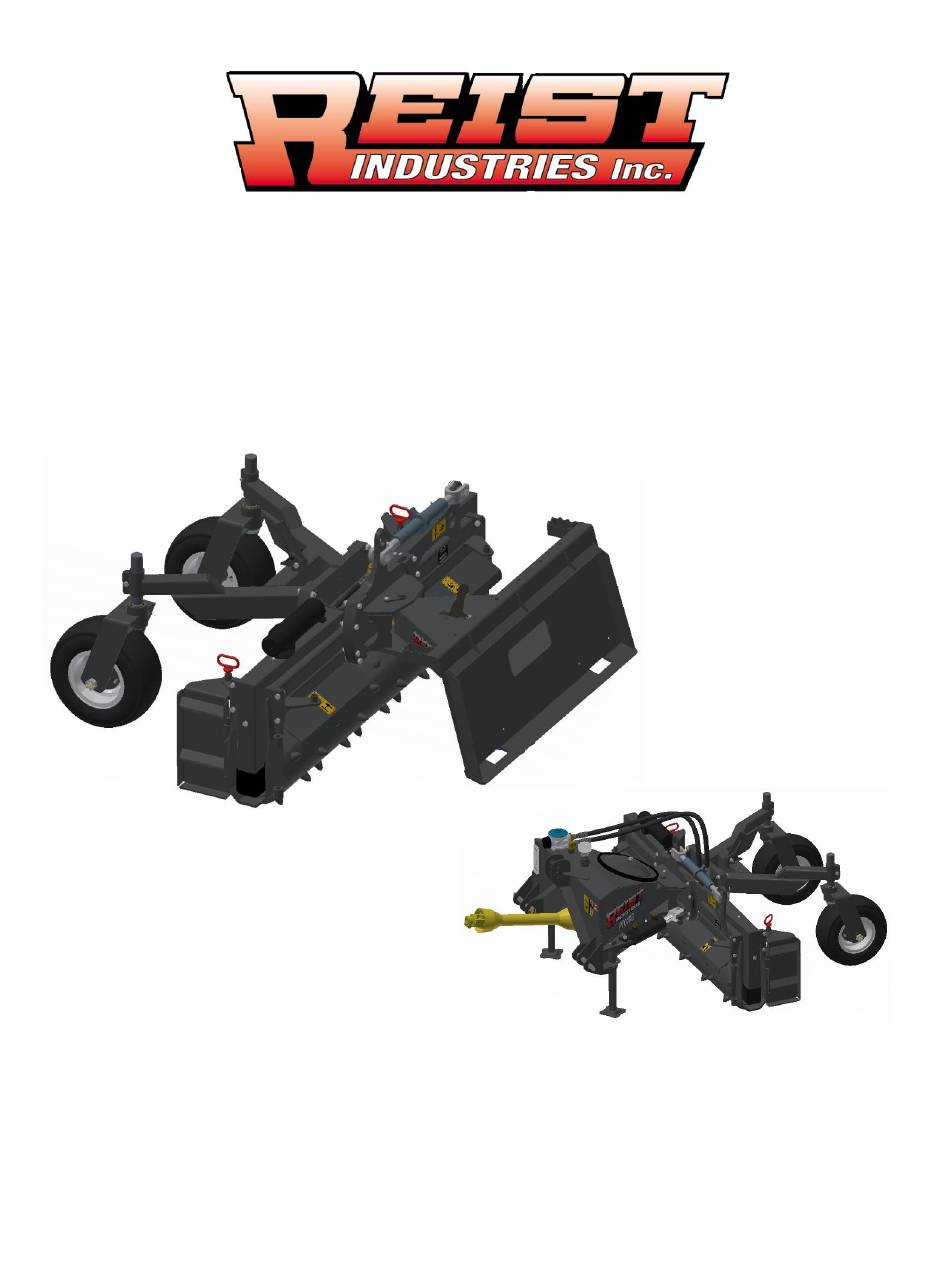

- Page 1 INNOVATION WORKING FOR YOU RR60 RR60PTO18G & Roto-Rake Operator and Parts Manual REIST Industries Inc. Phone: 519-669-1501 100 Union Street Toll Free: 1-877-467-3478 Elmira, Ontario, Canada www.reistindustries.com N3B 3L7 Effective Serial Number Y4401...
-
Page 3: Table Of Contents
Contents INTRODUCTION ......................... 2 PRODUCT CONFIGURATION ....................3 GENERAL SAFETY PRECAUTIONS ..................4 OPERATION AND TRANSPORTATION ON PUBLIC ROADS AND AREAS ......6 SAFETY DECALS ........................7 MAINTENANCE .......................... 8 ADDITIONAL MAINTENANCE FOR THE PTO18G SERIES ............8 PTO18G OIL FILTER MAINTENANCE ..................9 STANDARD SETUP INSTRUCTIONS .................. -
Page 4: Introduction
REIST Industries at the telephone number or address below. Keep this manual available for reference whenever this product is being handled or used and we recommend that it is reviewed periodically and before seasonal use. -
Page 5: Product Configuration
1 & 2 1350 Exceeding the recommended specifications can result in damage to the equipment and will void all REIST Industries warranties. The following references are used throughout this Operator’s and Parts Manual: Attachment, Refers to the ROTO-RAKE whether attached or separate from the prime... -
Page 6: General Safety Precautions
• Wear the protective equipment specified by the tool manufacturer • Use care when working on hydraulic systems and understand how to check for and release trapped hydraulic pressure REIST Industries Inc. © (revised April 2022) Page 4... - Page 7 • Know how to quickly stop the equipment and all rotating parts in the case of an emergency • Stop the prime mover, lower implements and turn off the engine before dismounting • Refer to the prime mover’s Operator’s Manual for additional information REIST Industries Inc. © (revised April 2022) Page 5...
-
Page 8: Operation And Transportation On Public Roads And Areas
Select a safe ground speed when transporting from one area to another. When operating, or driving on roadways, travel in such a way that faster moving vehicles may pass you safely. REIST Industries Inc. © (revised April 2022) Page 6... -
Page 9: Safety Decals
SAFETY DECALS Contact REIST Industries if replacement decals are required. DECAL PART NUMBERS Item Part Number Description RD107 REIST Decal RD115 Made in Canada Decal RD132 RotoRake Decal RD134 RR60 Decal Serial Serial Number Decal WD111 WARNING Rotating Knives & Spikes... -
Page 10: Maintenance
1. Check oil level in sight glass. Use a Universal hydraulic oil if top up is required. 2. Change filter as instructed on the Oil Filter Maintenance page (9). 3. Grease PTO crosses if applicable daily (or 8 hours of operation) with EP2 REIST Industries Inc. © (revised April 2022) Page 8... -
Page 11: Pto18G Oil Filter Maintenance
PTO18G OIL FILTER MAINTENANCE REIST Industries Inc. © (revised April 2022) Page 9... -
Page 12: Standard Setup Instructions
• For leveling control, you want the weight on the wheels of the Roto-Rake • Tip the bucket cylinders of the skid steer until tips of rotor are at desired depth. REIST Industries Inc. © (revised April 2022) Page 10... -
Page 13: Pto18G Setup Instructions
• Travel speed is governed by the condition of the surface being graded. • The deeper the cut and harder the material the more power is required and the speed has to be adjusted according. REIST Industries Inc. © (revised April 2022) Page 11... -
Page 14: Float Setup Instructions
• The float position allows 5” of up and down movement as the Roto Rake travels across uneven ground. • The Wheel Attachment may be left either engaged or disengaged at the discretion of the operator. Rigid Position Float Position REIST Industries Inc. © (revised April 2022) Page 12... -
Page 15: Rr60 - Standard Features Assembly
RR60 - STANDARD FEATURES ASSEMBLY REIST Industries Inc. © (revised April 2022) Page 13... -
Page 16: Rr60 Roto Rake - Assembly
RR60 ROTO RAKE - ASSEMBLY REIST Industries Inc. © (revised April 2022) Page 14... -
Page 17: Rr60 Wheel Assembly
RR60 WHEEL ASSEMBLY REIST Industries Inc. © (revised April 2022) Page 15... -
Page 18: Standard 15 Degree Swivel Frame Assembly
STANDARD 15 DEGREE SWIVEL FRAME ASSEMBLY REIST Industries Inc. © (revised April 2022) Page 16... -
Page 19: Rr60 + 15 Degree Base Swivel Frame Assembly
RR60 + 15 DEGREE BASE SWIVEL FRAME ASSEMBLY REIST Industries Inc. © (revised April 2022) Page 17... -
Page 20: Optional On The Fly Hydraulic Valve Block
OPTIONAL ON THE FLY HYDRAULIC VALVE BLOCK REIST Industries Inc. © (revised April 2022) Page 18... -
Page 21: Optional Hydraulic Valve Block Details
OPTIONAL HYDRAULIC VALVE BLOCK DETAILS REIST Industries Inc. © (revised April 2022) Page 19... -
Page 22: Optional Hydraulic Valve Block Details
OPTIONAL HYDRAULIC VALVE BLOCK DETAILS REIST Industries Inc. © (revised April 2022) Page 20... -
Page 23: Optional Valve Block Wiring Harnesses
OPTIONAL VALVE BLOCK WIRING HARNESSES Use wiring harnesses starting with part number EWKV#### to connect the Valve Manifold to the prime mover. Showing 14 Pin Plug REIST Industries Inc. © (revised April 2022) Page 21... -
Page 24: Optional Divertor Valve
OPTIONAL DIVERTOR VALVE REIST Industries Inc. © (revised April 2022) Page 22... -
Page 25: Optional Divertor Valve Assembly Details
OPTIONAL DIVERTOR VALVE ASSEMBLY DETAILS REIST Industries Inc. © (revised April 2022) Page 23... -
Page 26: Optional Divertor Valve Details & Schematic
OPTIONAL DIVERTOR VALVE DETAILS & SCHEMATIC REIST Industries Inc. © (revised April 2022) Page 24... -
Page 27: Current Wiring Harnesses
Use wiring harnesses starting with part number EWKD#### to connect the Walvoil 6 Way Solenoid Control Sectional Divertor Valve to the prime mover. Use the wired remote manual toggle switch (part number RRMTS01) to operate the divertor valve from the prime mover. REIST Industries Inc. © (revised April 2022) Page 25... -
Page 28: Rr60Pto18G - Assembly
RR60PTO18G - ASSEMBLY REIST Industries Inc. © (revised April 2022) Page 26... -
Page 29: Pto18G - Exploded View
PTO18G – EXPLODED VIEW REIST Industries Inc. © (revised April 2022) Page 27... -
Page 30: Pto18G - Parts List
PTO18G – PARTS LIST REIST Industries Inc. © (revised April 2022) Page 28... -
Page 31: Optional Side Cutters - Rrsck
Note: Item #4 120359-Spacer Bushing can be placed above or below the Plow Attachments depending on the depth of cut desired. Side gates and optional side cutters can be exchanged depending on direction of travel. REIST Industries Inc. © (revised April 2022) Page 29... -
Page 32: Optional Plow Attachment Assembly
OPTIONAL PLOW ATTACHMENT ASSEMBLY REIST Industries Inc. © (revised April 2022) Page 30... -
Page 33: Warranty Information
12 calendar months from the date of delivery to an end user, such defective part or parts will be repaired or replaced by REIST Industries Inc. It is the responsibility of the buyer, at his expense, to transport the machine or equipment to the manufacturer service shop or to an authorized service depot or, alternatively, to reimburse REIST for any travel or transportation expense involved in fulfilling this warranty. - Page 34 REIST Industries Inc. 100 Union Street Elmira, Ontario, Canada N3B 3L7 REIST Industries Inc. © (revised April 2022) Page 32...
