Do not connect power yet, 1
•
Plug the included AC adapter. (110/240 V AC to 12V DC)
•
Confirm that all 2/4 Red LED lights in front of this unit are double blinking
•
Confirm that STATUS LED light turns ON
•

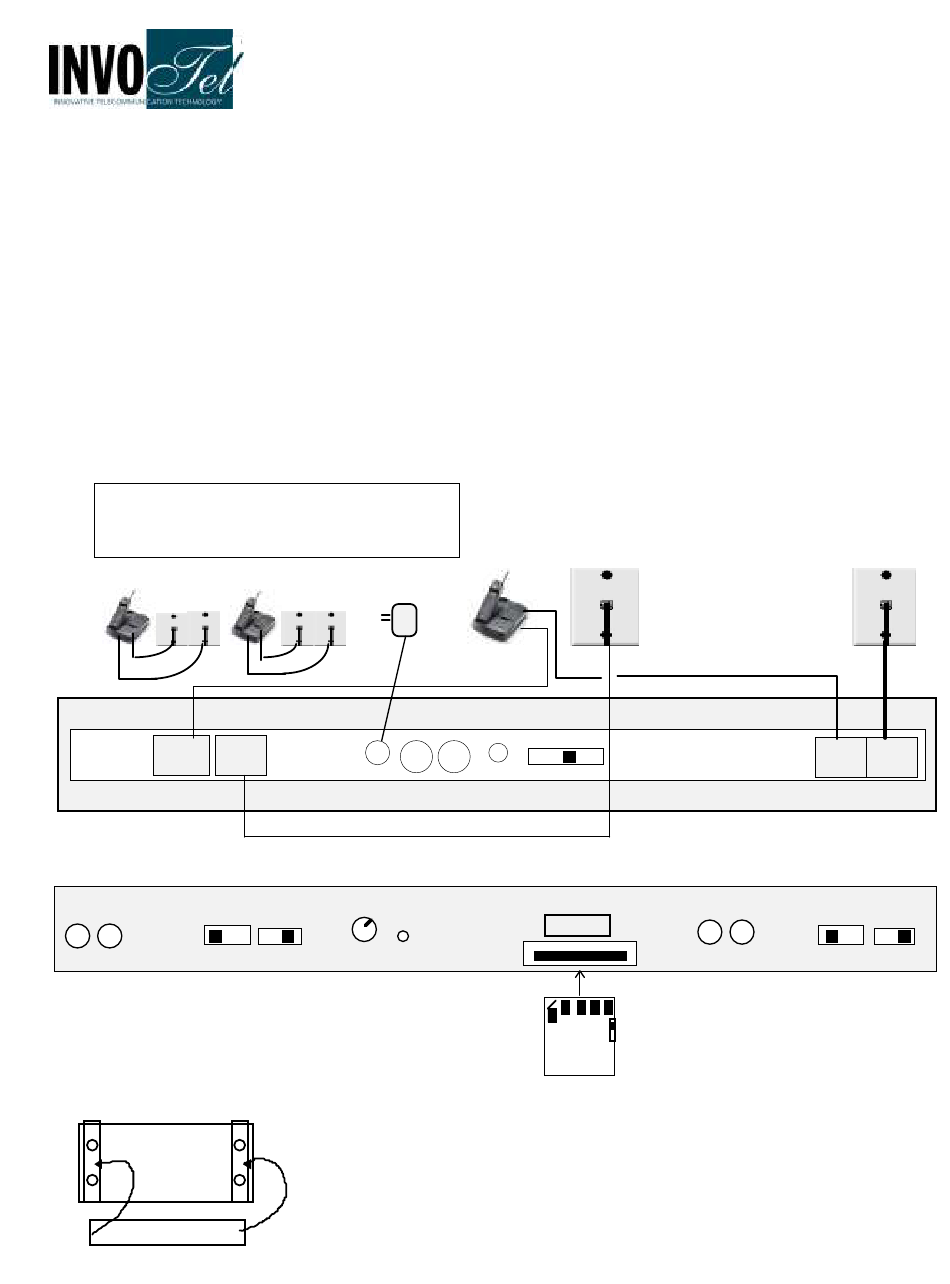

Use one of your telephones and unplug the cord for L1/L2 from it and connect it to L1/L2 IN jack on
•
SX8800, now connect L1/L2 OUT jack to your telephone using the provided phone cord, make sure
you have dial tone on your lines 1 and 2
Now unplug the cord for L3/L4 from your phone and connect it to L3/L4 IN jack on SX8800 and
•
connect L3/L4 OUT jack on SX8800 to your telephone using the provided phone cord, make sure you
have dial tone on your lines 3 and 4
Observe that as you connect the lines the blinking lights turn OFF.
•
blinking and that is OK)
Alternatively you may use a splitter (T adapter) at the Wall jack to connect both this device and a
• • • •
telephone
(in that case the L1/L2 OUT and L3/L4 OUT jacks are not connected)
Turn the Speaker ON and Adjust the volume to mid level.
• • • •
Please note: just one telephone may be
connected to this device, other telephones
remain connected to their own wall jacks.
L3/L4
L3/L4
OUT
IN
Back
RECEP
L1 L2
A B C
Front
RECEPT
Wall mount drill areas
All-In-One Professional Music-On-Hold
MP3 USB/SD Digital Player/ Adapter
Models: SX8800 2LP, SX8800 4LP
st
Insert the SD card or the USB Flash drive and make sure it is IN fully
110/240 V
12VDC
600Ω 8Ω EXT
OUTPUT
VOLUME
1 2 3
STATUS
SD Card slot
Rev 30
(on non existing lines the lights keep
3/4
ON OFF R
SPEAKER
USB FLASH DRIVE
SD Card
1/2
L1/L2
L1/L2
OUT
L3
L4
A B C
1 2 3
IN
Advertisement
Summary of Contents for invotel SX8800 2LP
- Page 1 All-In-One Professional Music-On-Hold MP3 USB/SD Digital Player/ Adapter Models: SX8800 2LP, SX8800 4LP Rev 30 Do not connect power yet, 1 Insert the SD card or the USB Flash drive and make sure it is IN fully • Plug the included AC adapter. (110/240 V AC to 12V DC) •...
- Page 2 Connection Test: To confirm that you have connected everything correctly: Turn Speaker ON, make sure you can hear the audio from the SX8800, adjust the volume up (clockwise) if needed, set two ABC switches to C position and the two 123 switches to 3 position, select line 1 on the phone, L1 LED on SX8800 must turn ON and you should hear audio from the phone Line 1 select line 2 on the phone, L2 LED on SX8800 must turn ON and you should hear audio from the phone Line 2 select line 3 on the phone, L3 LED on SX8800 must turn ON and you should hear audio from the phone Line 3...
- Page 3 Operation in Hold activation: A B C 1 2 3 Hang up and set both switches to A position and both switches to 1 position Start with A1, make or receive a real call, the LED on the SX8800 turns ON solid, then simply press the HOLD button on your telephone, the Music will be heard to the caller and the LED on the SX8800 will start to BLINK , to return to the call just re-select that line.
- Page 4 A B C 1 2 3 Operation in B1, B2 settings: Hang up and set both switches to B position and both switches to 1 position To activate: press then FLASH HOLD To deactivate just re-select that line and press FLASH Voice Deactivation: if the call has been on Hold at least a few seconds, it can also be deactivated by just speaking over the Audio for example say : “Hi I am Back”...
- Page 5 A B C 1 2 3 Operation in C1, C2 settings: Hang up and set both to C position and both switches to 1 position C1 and C2 use “voice activation” method, this mode of operation supports most phones or brands by just using the Hold button but with slightly longer activation time (about 10 to 15 seconds after hold is pressed) In “Voice activation”...
- Page 6 Special Cases: Some phones like GE 2-9487GE2-A , GE 2-9488GE2-A and all RCA phones beep every few seconds when the calls are placed on Hold and may not work properly in C2 or B2 settings ( the beep may turn off the Hold Music in some cases) in that case use the B1 setting or use the A settings and increase the volume a bit so that the beeps are less noticeable to the callers.
- Page 7 Disconnecting from Computer: If you want to remove the USB flash drive or SD card from PC then do as follows ⇒ ⇒ ⇒ ⇒ Double click on the green arrow in the Taskbar located on the lower -right side of the computer screen (Safely Remove Hardware) ⇒...
-
Page 8: Player Specifications
SD (Secure Digital) CARD: SX8800 can accept 32MB to 4GB SD card/USB Flash drive/USB Flash drives available on the market. Up to 256 hours of continuously playing audio time can be obtained using a 4GB SD card/USB Flash drive. Most SD card have a lock that needs to be in unlock position (toward the edge) When in lock position(toward the bottom edge) the card will play but will not be accessible by PC to be written into, this can provide protection against unwanted or accidental content change. - Page 9 Player Problems Possible Cause / Solution Player not working or • Unplug the power connector, press on SD card so that it snaps out, stopped working wait 30 seconds then re-insert the SD card and make sure it snaps IN then re-connect the power securely., observe the STATUS LED is turning ON solid •...
- Page 10 Adapter Trouble Shooting: Problems Possible Cause / Solution Adapter not working Unplug the 12VDC plug from the back of the SX8800 and or stopped working unplug the phone lines; Wait 60 seconds then plug them back in, make sure the AC adapter is plugged in securely. Adapter does not telephone was changed or power failure - do as above, activate or stopped...
-
Page 11: Warranty
LLC BE LIABLE FOR LOSS OF PROFITS OR BENEFITS, INDIRECT, SPECIAL, CONSEQUENTIAL OR OTHERWISE ARRISING FROM ANY BREACH OF THIS WARRANTY OR OTHERWISE. Innovative Telecommunication Technology LLC AudioImage 1112 Montana Ave Suite 250 Santa Monica, CA 90403 USA 310-899-0078 http://www.invotel.com Phone: ...
