SOLITHERM PELTIER TG 3039 dehumidifier Installation guide

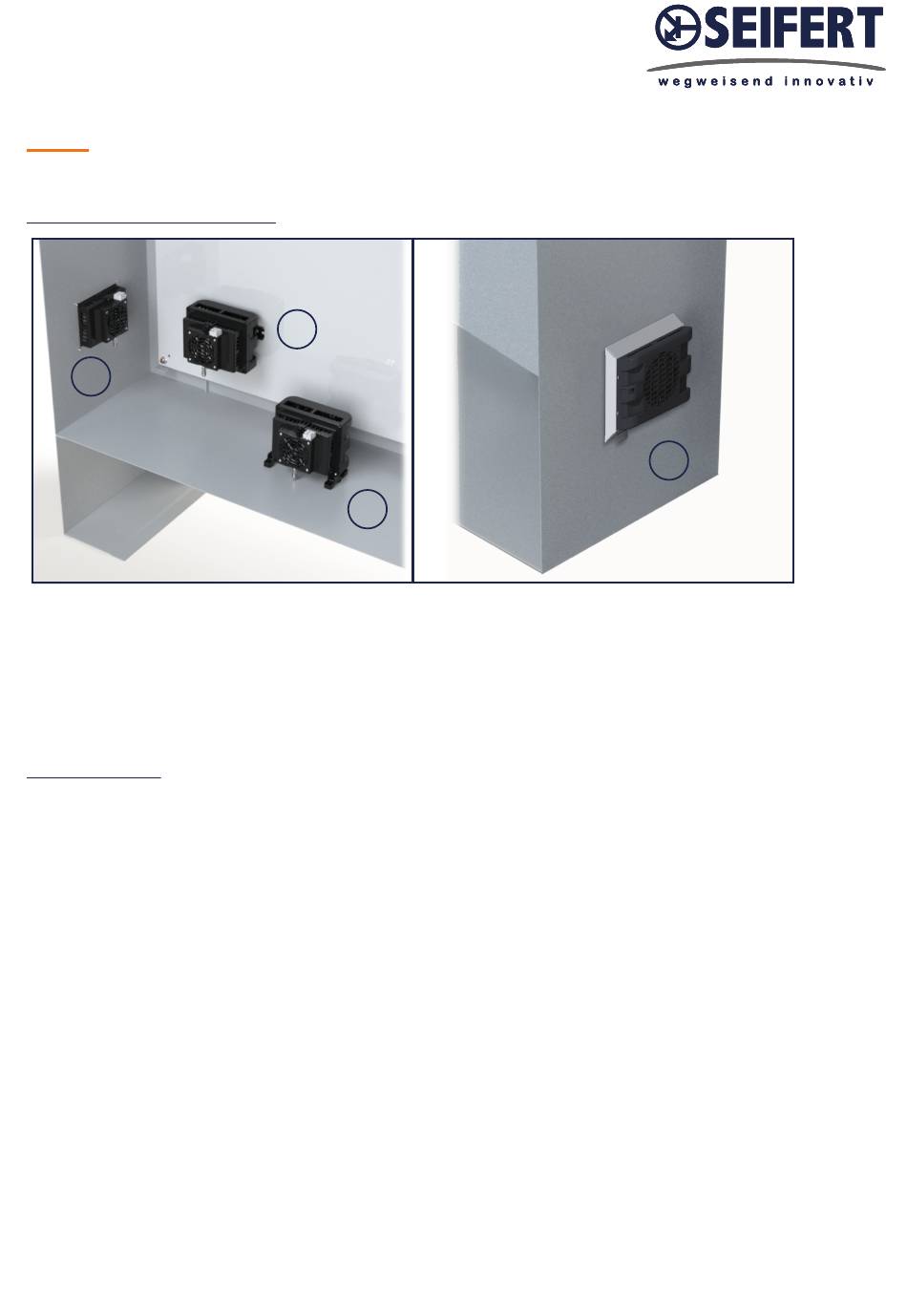

Different mounting options
1
1. Recessed mounting.
2. DIN Rail mounting.
3. Floor mounting.
4. Wall mounting (with optional frame)
Technical Data
Cooling Rate (30˚C / 80%rH)
Operating Temperature Range
Mounting
Dimensions A x B x C (D+E)
A = Height | B = Width | C = Depth
Weight
Cut out dimensions
Voltage / Frequency
Rated current
Starting current
Max. current
Power consumption
Max. power
Fuse
Connection
Housing material
Approvals
Accessories
Version No. 1-0 - 26.05.2023
2
3
25 ml/hr
0°C - 65°C
Recessed, DIN rail, enclosure floor
Wall mount with mounting frame
176 x 136 x (72+61) mm
1.8 kg
152 x 117.5 mm
24 V DC
2.1 A
3.1 A
2.4 A
50 W
58 W
4 A (T)
Connection terminal block
PC UL94V-0
CE
Mounting Frame. Order Number 1019305
© Seifert Systems
4
Page 1 / 6
Advertisement
Summary of Contents for Seifert SOLITHERM PELTIER TG 3039
- Page 1 SOLITHERM PELTIER TG 3039 dehumidifier Installation guide Different mounting options 1. Recessed mounting. 2. DIN Rail mounting. 3. Floor mounting. 4. Wall mounting (with optional frame) Technical Data Cooling Rate (30˚C / 80%rH) 25 ml/hr Operating Temperature Range 0°C - 65°C Mounting Recessed, DIN rail, enclosure floor...
-
Page 2: Installation
[5.98”] Installation The unit must be mounted to the wall of the enclosure using the provided (x4) 5x18 mm self-tapping screws for plastic: TIGHTENING TORQUE : 0.8 Nm Version No. 1-0 - 26.05.2023 © Seifert Systems Page 2 / 6... - Page 3 Step 1: Unscrew the (x2) 5x18 mm screws from each side and remove the unit from the brackets. Step 2: Remove the brackets from the DIN rail by pressing with a screwdriver as shown in Step 2. Version No. 1-0 - 26.05.2023 © Seifert Systems Page 3 / 6...
- Page 4 Stop screwing as soon as the screw head is seated in place. DO NOT OVERTIGHTEN! Step 2: Fix the brackets to the unit using the provided (x2) 5x18 mm self-tapping screws for plastic. TIGHTENING TORQUE: 0.8 Nm © Seifert Systems Page 4 / 6...
- Page 5 TIGHTENING TORQUE: 0.8 Nm Step 2 Mount the unit to the wall of the enclosure using (x4) M4 screws. MOUNTING GASKET FOR TIGHTENING TORQUE: 1.5 Nm RECESS MOUNT VERSION MOUNTING GASKET FOR FLUSH MOUNT VERSION © Seifert Systems Page 5 / 6...
-
Page 6: Mounting Instructions
Ensure that for the duration of the installation, maintenance and cleaning the unit is disconnected from the electrical supply. Electrical Connection Check the type plate before making any connections to the power supply to ensure that current and voltage ratings are met. © Seifert Systems...
