- Page 1 Denver & Denver Plus User Manual Model - S130 & S135 - Please ensure that this user manual is read and understood before using the scooter.
-
Page 2: Table Of Contents
Contents Introduction and Intended Use Maintenance Products Life Expectancy Technical Specifications General Cleaning Feature Guide Safety Advice Routine Maintenance Check List Assembly Instructions Troubleshooting Adjustments Fuses Tiller Angle Adjustment Check List Seat Swivel and Depth Adjustment Error Chart Seat Height Adjustment Further Information Seat Removal Solar Energy... -
Page 3: Introduction And Intended Use
A direct drive rear transaxle and electromagnetic brake give a safe and efficient ride. Intended Use The ROMA DENVER is intended for indoor or outdoor use in pedestrian areas by a single individual with limited mobility up to a maximum weight of 136kg (21st). The acute manoeuvrability prohibits the use by persons who are severely physically impaired or those who have balance difficulties. -
Page 4: Feature Guide

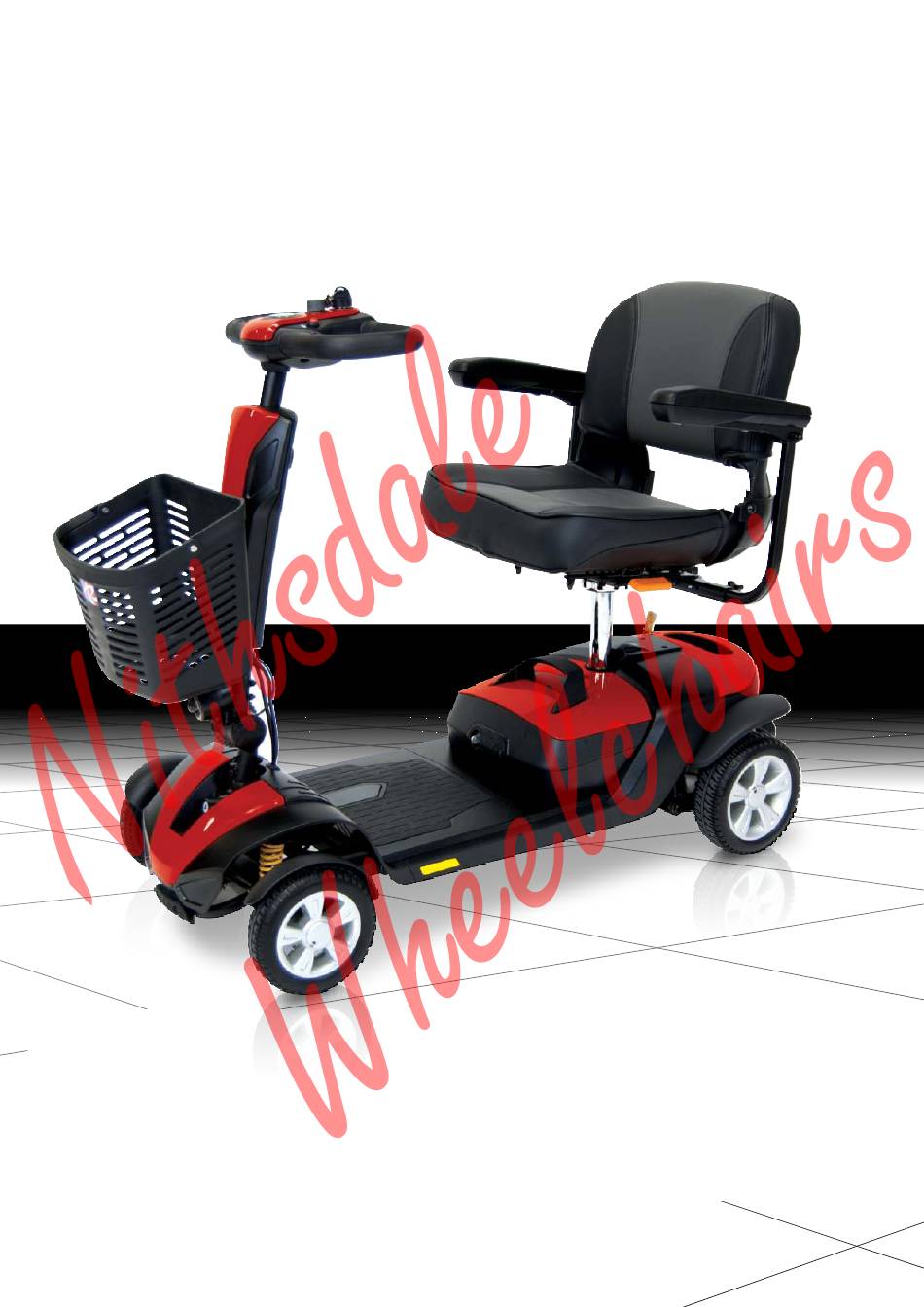

Feature guide ‘Denver’ Shopping basket Tiller controls Comfortable height adjustable swivel seat with rear pocket Front and rear shock absorbers Nithsdale Wheelchairs Detachable battery pack Non marking tyres Front LED light... -
Page 5: Safety Advice
Safety advice • Read this manual carefully before using your scooter. • Turn the power off when transferring to and from the scooter. • Select a slow speed when going down gradients (max 6°) or over uneven ground. • Keep your feet on the scooter whilst driving. •... -
Page 6: Assembly Instructions
Assembly Instructions Note: Before using your scooter the tiller and seat post will require fitting. Tiller assembly To fit the tiller assembly, you will require the hand- knob and spring. Fit the hand-knob through the right-side hinge and locate the spring over the shaft of the bolt. -
Page 7: Adjustments
Adjustments Tiller Angle Adjustment At the bottom right hand side of the scooter you will find the angle adjustment hand wheel. To adjust the angle, loosen the hand wheel by turning anti-clockwise. Once the desired angle is achieved tighten by rotating clockwise. Ensure the tiller is fully secure before using the scooter. Seat Swivel &... -
Page 8: Seat Height Adjustment
Seat Height Adjustment Remove the seat and rear part of the scooter. Undo the locking bolt from the frame using the tools supplied and set the seat to the desired height. Re-fit the locking bolt. Re-assemble the rear part of the scooter and fit the seat. -
Page 9: Arm Adjustment
Arm Adjustment On each side of the seat towards the back there are two hand knobs and locking pins, these are to adjust the width of the armrests or to remove then for transport. Turn the hand knobs anti-clockwise to loosen and pull out the locking pins. Once the knobs are loose you will be able to adjust the armrests in or out to the desired width. -
Page 10: Tiller Controls
Tiller Controls Battery Level Indicator (1) This gauge gives you a guide to the amount of charge left in the scooters batteries. This will give the truest reading when the scooter is in motion Note: Always fully charge the batteries before driving your scooter and never let the batteries become completely drained, as this may cause permanent damage to the batteries. -
Page 11: Brake Release / Free Wheel Operation
Note: Always start at a slow speed until accustomed with the characteristics of your scooter. Do not put excessive pressure on the dial. Only turn as far as the stops. When driving in pedestrian areas such as shopping precincts and busy pavement areas always respect other pedestrians and turn the maximum speed down so that the scooter travels at the walking pace of others around you. -
Page 12: Starting To Drive
Caution: Never leave the scooter unattended whilst in free wheel mode as it will roll away down an incline. ‘Free wheel’ mode should only be used in an emergency to move the scooter due to power failure. Never move the scooter in this mode whilst it is occupied. NEVER tow the scooter. -
Page 13: Moving Off
The scooters speed and direction is controlled by the ‘wig-wag’ lever. The arrows shown in the image above show the direction in which the scooter will move when the lever is operated as indicated. Moving Off Insert the key and switch on the power and initially set the speed control to a low setting. The further you pull the lever the faster the scooter will travel, but only to the maximum speed that has been selected. -
Page 14: Ramps / Slopes
Charge the batteries completely (8-12 hours) prior to first use. The ROMA DENVER uses two 12Amp (S130) or 38Amp (S135), 12 Volt AGM batteries. The batteries are located in a battery pack under the front of the seat. They can be easily removed by simply lifting by the handle(s) on the top (S135 –... -
Page 15: Battery Charger
Note: Batteries recommended by ROMA MUST be used if they need to be replaced. An authorised ROMA dealer must carry out battery replacement. Battery Charger The battery charger is a 2-amp (S130) or 6-amp (S135) switch mode type off board. The battery charging port is located on the front of the battery box (see image below). -
Page 16: Dismantling For Transport And Storage
Dismantling for Transportation & Storage The scooter can be easily and quickly dismantled for easy transportation. Always remove the seat and battery pack(s) before attempting to disassemble the scooter. Lift the front part of the scooter by the seat post whilst pulling up on the release lever as indicated by the arrow below. - Page 17 To re-assemble, let the rear section of the scooter rest backwards on the anti-tipper wheels. Lift the front section by the seat post towards the rear section and locate the ‘lugs’ on each side of the chas- sis over the main tube of the rear section as shown below. The front can then be gently lowered into position.
-
Page 18: Maintenance
Maintenance Product Life Expectancy Your scooter has been designed to provide the user with a long, reliable life provided it is correctly maintained and regularly serviced by an authorised dealer. However, due to inevitable wear and tear and technological improvements it is recommended that the average usable life of this scooter is five years. - Page 19 Beep Description Scooter condition Action Code Charge batteries. Scooter may run slowly. Batteries less than 23.3v. Charge as soon as possible. Bad motor connection. Scooter will not run. Check all connections between the motor and the controller. Motor short circuit. Scooter will not run.
-
Page 20: Further Information
Further information Safety Information Regarding Electromagnetic Interference (EMI) Scooters and Powerchairs are designed to operate under certain conditions. However, radio waves or electromagnetic fields may affect the operation of the Scooter. The source of EMI could be radio or television transmitters or portable devices such as mobile phones, portable CB radios etc. -
Page 21: Product Stability
Product Stability Scooters and powered wheelchairs are designed to allow the user flexibility of movement in restricted areas. Driving at maximum speed and attempting sharp turns can create a situation where the prod- uct becomes unstable. Therefore it is essential that the user pay attention to the guidance set out in this manual. - Page 22 Notes...
-
Page 23: Warranty Terms And Conditions
Warranty Terms and Conditions This is to certify that your Roma Medical product is warranted for a period of 12 months from the date of original purchase. This warranty is not transferable. Note: Should a defect or operating fault arise within this period the Dealer from where the product was originally purchased should be notified immediately. - Page 24 York Road Bridgend Industrial Estate Bridgend CF31 3TB United Kingdom Telephone: 01656 674488 Facsimile: 01656 674499 Email: sales@invamed.co.uk Web: www.invamed.co.uk...
