Summary of Contents for Respiray Wear A+

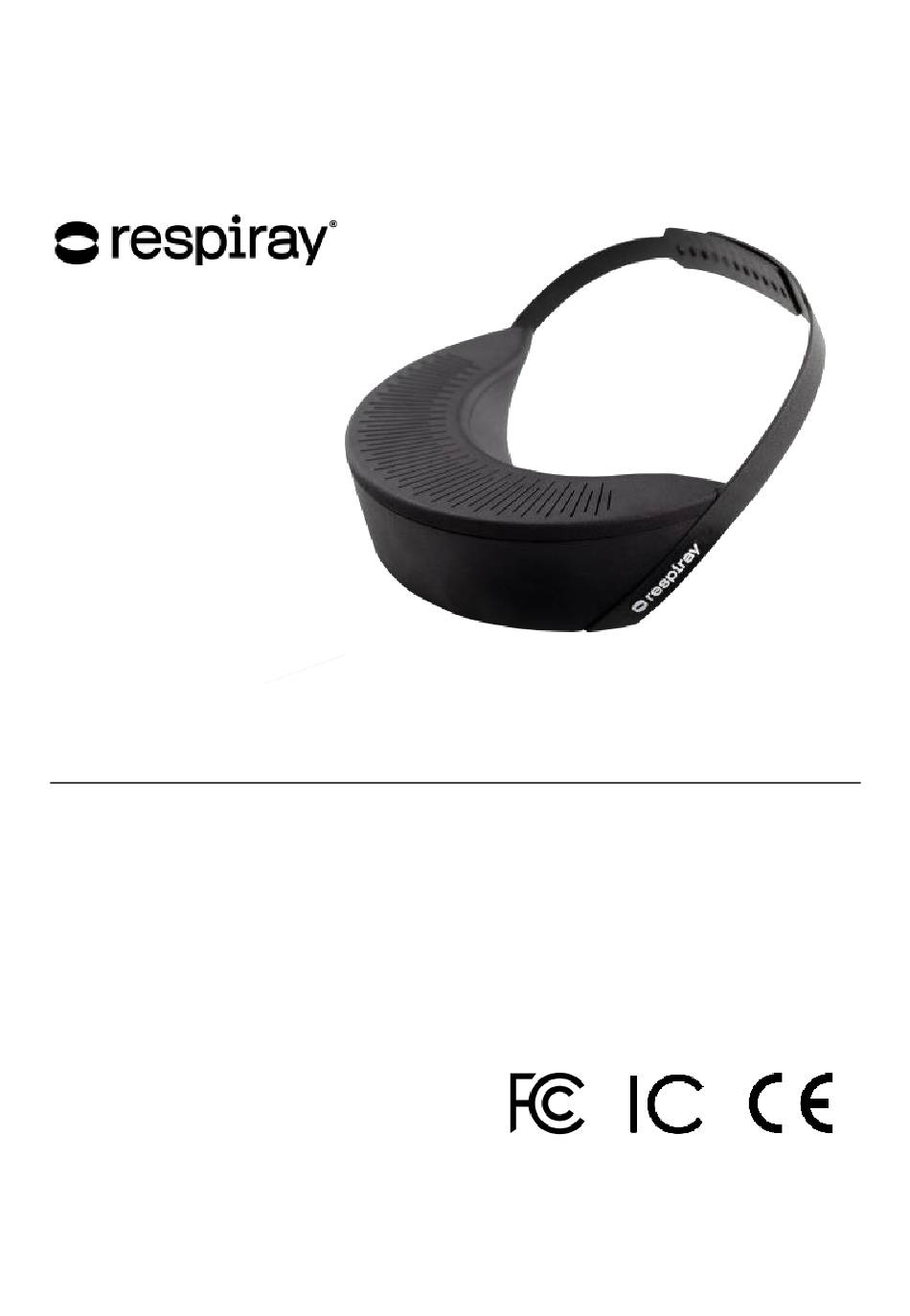

- Page 1 Respiray Wear A+ User Manual ver. 1.0 User Manual Respiray Wear A+ Read this User Manual fully and thoroughly before operating the device. ENGLISH www.respiray.com Copyright 2023 Respiray OÜ. All rights reserved.
-
Page 2: Table Of Contents
Respiray Wear A+ User Manual ver. 1.0 1. Important Safety Instructions ...............3 2. Overview of the Device ..................5 2.1 Intended Use ..................5 2.2 Items Included in the Package .............. 5 2.3 Device Description ................. 5 3. Assembly.......................7 3.1 Assembling the Straps with the Main Unit..........7 3.2 Inserting or Changing the Main Filter ............ - Page 3 10. Disposal ....................21 11. Copyright ....................21 12. Declaration of Conformity ................ 22...
-
Page 4: Important Safety Instructions
Do not use the device if the parts or accessories are not supplied by the manufacturer as defined in this manual. Contact Respiray Customer Service (see page )if the device is damaged or does not appear to be working properly. - Page 5 Use of an unqualified battery may create a risk of fire, leakage, explosion, or other hazards. The WEEE directive requires that you dispose of this electrical device (including all accessories and parts except for filters) at a designated recycling collection point for electrical devices.
-
Page 6: Overview Of The Device
Respiray Wear A+ User Manual ver. 1.0 2. Overview of the Device Intended Use This product is intended for use as a wearable air purifier to catch and filter airborne allergens like pet dander, dust, pollen, and mold. The device creates an area of purified, allergen-free air in front of the wearer’s face. - Page 7 Part Name Description Magnetic closure For quickly opening and closing the strap. Strap adjuster For regulating the strap length to ensure the device is in the most effective position. Power button For turning the device on or off and regulating the airflow.
-
Page 8: Assembly
Respiray Wear A+ User Manual ver. 1.0 3. Assembly Watch the tutorial video at www.respiray.com/start Assembling the Straps with the Main Unit STEP 1: Take the right strap and STEP 2: Take the left strap and push the plastic ball joints into the... -
Page 9: Inserting Or Changing The Main Filter
Inserting or Changing the Main Filter STEP 1: Open the top cover by STEP 2: Insert the main HEPA filter pulling it up from the left side. into the designated filter slot with the pulling strip at the top. -
Page 10: Inserting The Pre-Filter
Respiray Wear A+ User Manual ver. 1.0 Inserting the Pre-Filter STEP 1: Open the pre-filter cover STEP 2: Insert the pre-filter into using the release mechanism. the designated filter slot. STEP 3: Close the cover by inserting the studs into the designated slots... -
Page 11: Operation
4. Operation STEP 1: Open the magnetic strap on the left side of the device. STEP 2: Place the device on your chest. STEP 3: Guide the strap around your neck and back into place. STEP 4: Place the device in a comfortable position. If required, adjust the strap length. -
Page 12: Indicator Lights
Blue indicator light for filter replacement Power button White indicator lights for battery level Whenever you turn on your Respiray Wear A+ or change the airflow speed, the battery indicator lights will show for 5 seconds. Here is what they mean: Battery Indicator Light Status... -
Page 13: Maintenance
5. Maintenance Cleaning Before cleaning the device, make sure it is turned off. Then, gently wipe it with a soft, slightly dampened cloth. Do not use any abrasive cleaning products or detergents. To disinfect the surface of the device, use rubbing alcohol and a microfiber cloth. - Page 14 Respiray Wear A+ User Manual ver. 1.0 STEP 3: Insert a new filter into the STEP 4: Place the top cover back designated filter slot with the onto the device. pulling strip at the top. STEP 5: To reset the filter timer, hold the power button down until the blue indicator light turns off (approximately 8 seconds).
-
Page 15: Cleaning And Replacing The Washable Pre-Filter
Cleaning and Replacing the Washable Pre-Filter The role of the pre-filter is to prevent larger particles from reaching the ventilators and prolong the lifetime of the main filter. We recommend cleaning the pre-filter once a month by vacuum cleaning in the gaps of the bottom cover, which will remove any large particles. -
Page 16: Storing The Device
Respiray Wear A+ User Manual ver. 1.0 Replacement pre-filters can be ordered from our website (www.respiray.com/) or by contacting us at info@respiray.com. Storing the Device The device should be stored at room temperature (64–82 °F / 18–28 °C) and in a low-humidity environment (30–50% relative humidity). To preserve the... -
Page 17: Frequently Asked Questions
How does it work? Respiray Wear A+ uses a very effective HEPA filter that filters out most of the allergens that can cause irritation and distress: pollen, dust mites, pet dander, etc. It is also effective against pathogens like viruses and bacteria. - Page 18 Yes, the device can be used while charging. What material is the device casing? The casing is made from high-quality PC/ABS plastic. Are the straps replaceable? Yes, replacement straps can be ordered from our website (www.respiray.com) or by contacting us at info@respiray.com.
-
Page 19: Troubleshooting
7. Troubleshooting Problem Explanation / Solution The battery is discharged. Charge the device as instructed in section The device is not turning on 4.1 Charging. The device is not correctly connected to the power outlet. Check the connections between the device, the charging cable, and the wall adapter. -
Page 20: Warranty Information
A warranty claim shall only be considered if the buyer can provide a copy of the invoice / purchase receipt and the original product to Respiray, or an authorized Respiray partner. The following are explicitly excluded from this warranty: Deterioration due to normal use of the product;... -
Page 21: Customer Care
(however, in this case claims may be made under product liability other compulsory statutory liability provisions). Customer Care Please contact Respiray Customer Service to report unexpected operations, events, or any other problems with your device. Our contact details are: Country Service number Email Estonia +372 5355 1952 info@respiray.com... - Page 22 Before disposing of the packaging, separate it into individual material types. Where possible, dispose of the cardboard and carton parts of the packaging as wastepaper. Copyright Respiray and related marks and logos are trademarks and/or registered trademarks of Respiray OÜ. © 2022 Respiray OÜ.
- Page 23 It is understood that each unit marketed is identical to the device as tested, and any changes to the device that could adversely affect the emission characteristics will require retest. The following manufacturer is responsible for this declaration: Company Name Respiray OÜ Address Mõisa 4, Tallinn, 13522, Harjumaa, Estonia Contact Name...
- Page 24 Respiray Wear A+ User Manual ver. 1.0 CE marking: Respiray declares that this product conforms with the basic requirements and relevant provisions of the European guidelines. FCC marking: Respiray declares that this product is herewith confirmed to comply with the requirements of FCC Part 15 rules.
