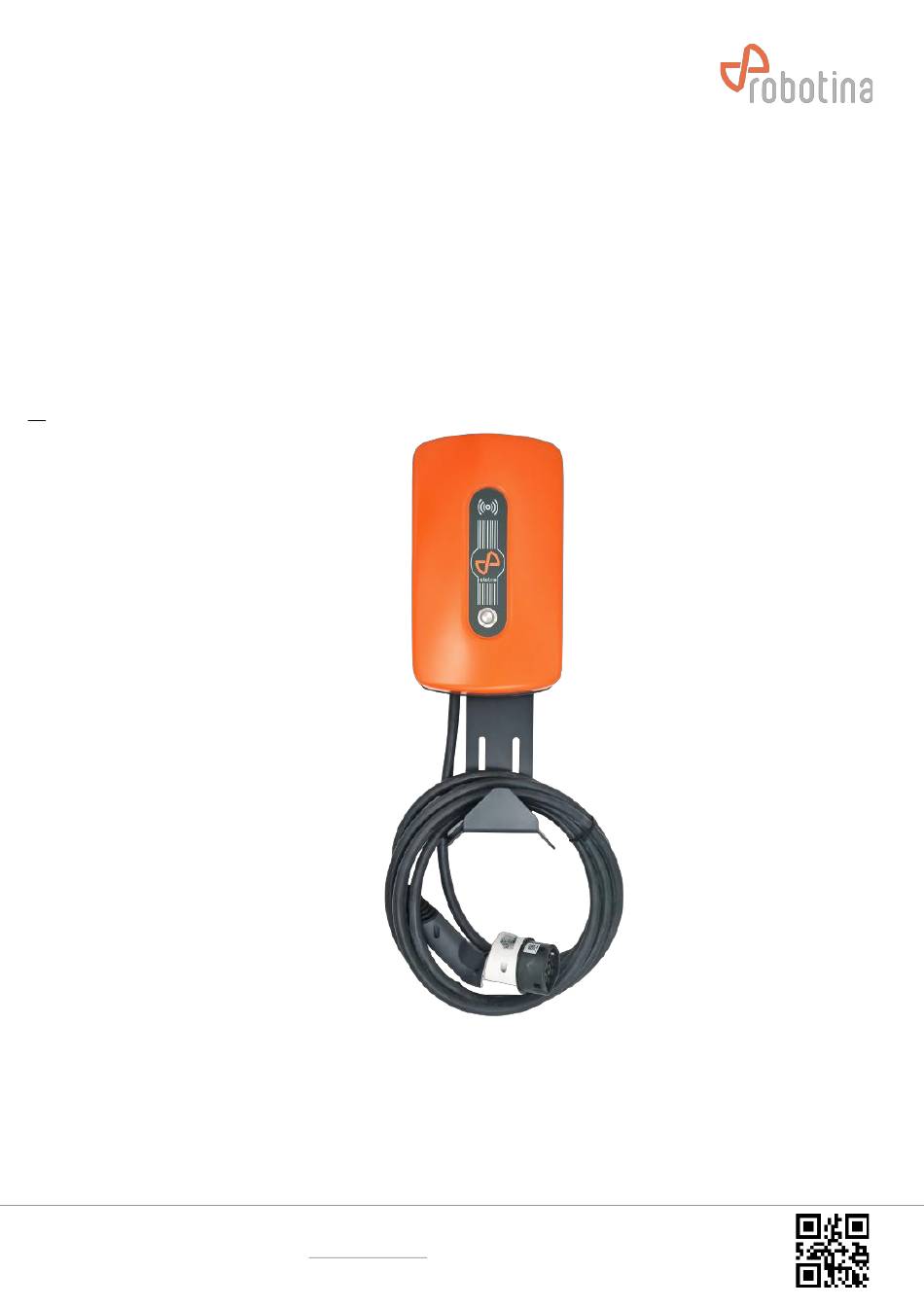

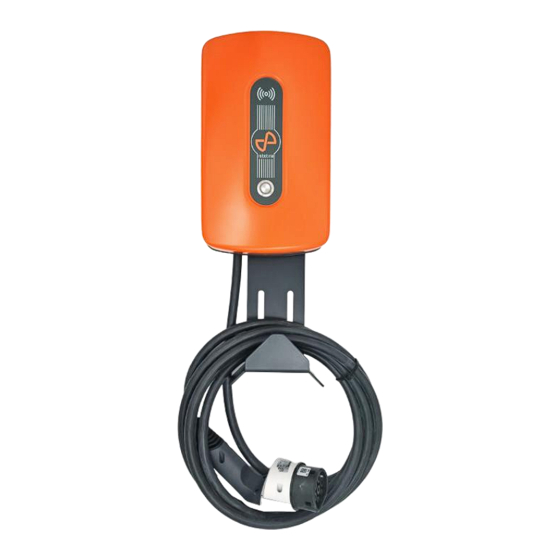

- Page 1 RDC Charger Quick Start Robotina d.o.o. OIC-Hrpelje 38, Hrpelje, SI-6240 Kozina www.robotina.com; e-mail: info@robotina.com Document: V1.2 Date: 25.05.2023...
- Page 2 Robotina d.o.o. OIC-Hrpelje 38, Hrpelje, SI-6240 Kozina www.robotina.com; e-mail: info@robotina.com Document: V1.2 Date: 25.05.2023...
-
Page 3: Safety Instructions
• Do not use private electrical generators as a power source for charging The manufacturer assumes no responsibility for material or personal damage resulting from use or behavior that does not comply with these safety instructions. Robotina d.o.o. OIC-Hrpelje 38, Hrpelje, SI-6240 Kozina www.robotina.com; e-mail: info@robotina.com Document: V1.2 Date: 25.05.2023... -
Page 4: Technical Specifications
868Mhz Ingress protection IP54 Impact resistance IK10 -20°C to +60°C Operating temperature Insulation 1200Vac Standards IEC 61851-1: 2019 EN 300 220, EN 300 328 ERC-REC-70-03-41.2 Dimensions Robotina d.o.o. OIC-Hrpelje 38, Hrpelje, SI-6240 Kozina www.robotina.com; e-mail: info@robotina.com Document: V1.2 Date: 25.05.2023... -
Page 5: Identification Label
Cloud connectivity. Modbus TCP/IP connectivity RDC-QR-RI Robotina Dynamic Charger with type 2 cable and QR Code (digital key) reader. Modbus TCP/IP connectivity. Built in residual current device and IOT linker for Cloud connectivity. Robotina Dynamic Charger with type 2 cable and standard RFID reader. Modbus TCP/IP RDC-RF-RI connectivity. -
Page 6: Required Equipment
Phillips screwdriver PZ2 - Screwing the power supply cables on RCD (model with RCD) • Pliers for crimping cable glands and shoes • Pliers and tools for removing insulation from cables and wires • Water level Robotina d.o.o. OIC-Hrpelje 38, Hrpelje, SI-6240 Kozina www.robotina.com; e-mail: info@robotina.com Document: V1.2 Date: 25.05.2023... - Page 7 Leave at least 30cm of space on the left, right and top, so it will be easier to wind the charging cable onto the stand. Robotina d.o.o. OIC-Hrpelje 38, Hrpelje, SI-6240 Kozina www.robotina.com; e-mail: info@robotina.com Document: V1.2 Date: 25.05.2023...
- Page 8 4 holes. 3. Pass the power supply and ethernet cable through the rectangular opening on the mounting plate. Screw in all 4 screws. (Phillips screwdriver PH2) Robotina d.o.o. OIC-Hrpelje 38, Hrpelje, SI-6240 Kozina www.robotina.com; e-mail: info@robotina.com Document: V1.2 Date: 25.05.2023...
- Page 9 (For a model with an IOT linker, connect the Ethernet cable to the IOT linker in the left corner below the pcb) Three-phase connection Model without RCD Model with RCD Robotina d.o.o. OIC-Hrpelje 38, Hrpelje, SI-6240 Kozina www.robotina.com; e-mail: info@robotina.com Document: V1.2 Date: 25.05.2023...
- Page 10 6. Charging cable holder has two mounting options: It can be installed directly on the RDC Charger Or it can be installed independently on the wall Robotina d.o.o. OIC-Hrpelje 38, Hrpelje, SI-6240 Kozina www.robotina.com; e-mail: info@robotina.com Document: V1.2 Date: 25.05.2023...
-
Page 11: Operation
Installation and start-up 1. Run the latest version of the interface (.exe file) from the link above. Robotina d.o.o. OIC-Hrpelje 38, Hrpelje, SI-6240 Kozina www.robotina.com; e-mail: info@robotina.com Document: V1.2 Date: 25.05.2023... - Page 12 2. Depending on the version, the default installation folder will be "Program Files (x86)\HIQ\RDC_Charger_version". In the example in the picture, this is the location Program Files (x86)\HIQ\RDC_Charger_201. But you can also set another arbitrary location. Robotina d.o.o. OIC-Hrpelje 38, Hrpelje, SI-6240 Kozina www.robotina.com; e-mail: info@robotina.com Document: V1.2 Date: 25.05.2023...
- Page 13 RDC Charger. Possible causes are that the charger is not connected to same network as the user interface, or that an IP address is not assigned. Robotina d.o.o. OIC-Hrpelje 38, Hrpelje, SI-6240 Kozina www.robotina.com; e-mail: info@robotina.com Document: V1.2 Date: 25.05.2023...
- Page 14 Robotina d.o.o. OIC-Hrpelje 38, Hrpelje, SI-6240 Kozina www.robotina.com; e-mail: info@robotina.com Document: V1.2 Date: 25.05.2023...
- Page 15 Installation was successful (shown above). User interface and its description is on the next page. Robotina d.o.o. OIC-Hrpelje 38, Hrpelje, SI-6240 Kozina www.robotina.com; e-mail: info@robotina.com Document: V1.2 Date: 25.05.2023...
- Page 16 In the case of dynamic charging, the charger will be the last to limit **Configurator starts the HEMS configurator. More at the web link http://wiki.robotina.com/doku.php?id=wiki:20_rdc_charger:30_software:start#hems_configurator Robotina d.o.o. OIC-Hrpelje 38, Hrpelje, SI-6240 Kozina www.robotina.com; e-mail: info@robotina.com Document: V1.2 Date: 25.05.2023...
- Page 17 EV not connected Charger paused EV connected, not charging Charger paused EV connected, charging EV connected, charging ended Error Locked Priority charging Priority charging paused Priority charging ended Robotina d.o.o. OIC-Hrpelje 38, Hrpelje, SI-6240 Kozina www.robotina.com; e-mail: info@robotina.com Document: V1.2 Date: 25.05.2023...
- Page 18 Internal temperature too high Excessive temperature Check that RDC charger is not inside the housing of the directly exposed to the sun charger light. Please call the charger installer Robotina d.o.o. OIC-Hrpelje 38, Hrpelje, SI-6240 Kozina www.robotina.com; e-mail: info@robotina.com Document: V1.2 Date: 25.05.2023...
-
