Sovereign FB510 Original Instruction Manual

Sovereign FB510 Original Instruction Manual

1400w high pressure washer

Advertisement

Quick Links

Sovereign

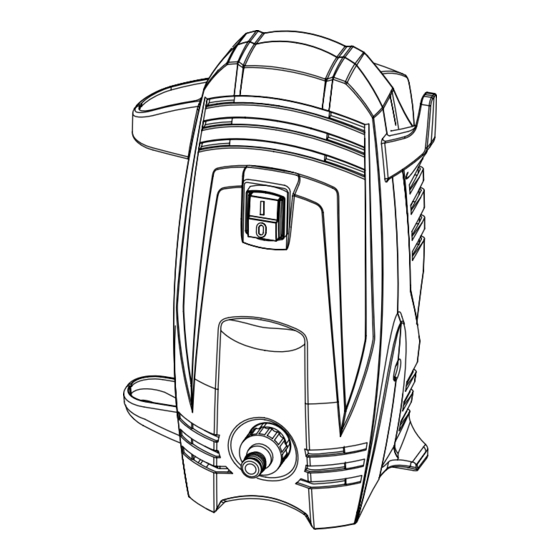

1400W High Pressure Washer
Original instruction manual
Important
Please read these instructions fully before operating or maintaining your pressure washer.
These instructions contain important information that will help you get the best from your
pressure washer, ensuring it is assembled correctly and safely.
FB510
Technical Support & Parts
01904 727503
www.gardenservicecentre.co.uk
Oct 2014 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FB510 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sovereign FB510

  • Page 1 Sovereign 1400W High Pressure Washer Original instruction manual FB510 Technical Support & Parts 01904 727503 www.gardenservicecentre.co.uk Important – Please read these instructions fully before operating or maintaining your pressure washer. These instructions contain important information that will help you get the best from your pressure washer, ensuring it is assembled correctly and safely.
  • Page 2: Table Of Contents

    Safety Information Contents Important - Please read these instructions fully before operating or maintaining Safety Information............................3 Warning Symbols ..........................3 General Safety............................4 Personal Safety.............................4 Operating Safety............................5 Maintenance and Storage Safety......................7 Intended Use............................8 Service..............................8 In the Box ..............................9 Preparing to Operate the Pressure washer....................11 Operating the Pressure Washer........................13 Maintenance and Repair...........................17 Storage and Transportation........................17...
  • Page 3: Safety Information

    Safety Information Important - Please read these instructions fully before operating or maintaining Warning Symbols The following warning symbols appear through this manual and indicate the appropriate safety measures you should take when operating and maintaining the pressure washer. Warning Read the instruction manual Conforms to all relevant safety standards.
  • Page 4: General Safety

    Safety Information Important - Please read these instructions fully before operating or maintaining General Safety IMPORTANT! - Keep this instruction manual in a safe place for future reference. - Read the instructions carefully. Be familiar with the controls and the proper use of the equipment.
  • Page 5: Operating Safety

    Safety Information Important - Please read these instructions fully before operating or maintaining Personal Safety (continued) - High-pressure jets can be dangerous if misused. The jet must not be directed at persons, animals, electrical equipment or the appliance itself. - Know how to stop the product and bleed pressure quickly, be thoroughly familiar with the controls.
  • Page 6 Safety Information Important - Please read these instructions fully before operating or maintaining Operating Safety (continued) - Water that has flown through backflow preventers is considered to be non-potable. - The PVC or polychloroprene sheathed power cord, or extension cables (H05VV-F) are acceptable for use at temperatures at or above 0 - Always ensure that a machine which has been switched off and cannot be restarted unintentionally.
  • Page 7: Maintenance And Storage Safety

    Safety Information Important - Please read these instructions fully before operating or maintaining Maintenance and storage safety WARNING! - To ensure the appliance safety, use only original spare parts from the manufacturer or approved by the manufacturer. - Retrofitting or making any unauthorized changes to the machine, as well as the use of unapproved parts will invalidate your warranty.
  • Page 8: Intended Use

    - to clean machines, vehicles, buildings, tools, facades, terraces, garden equipment etc. using a high-pressure water jet (and detergents if required). - to use with accessories, replacement parts and detergents approved by Sovereign. Observe the instructions provided with these detergents.
  • Page 9: In The Box

    In the Box Parts high pressure washer instruction manual trigger gun with hose attached extend lance spray lance water inlet male connector (attached to the machine) nozzle pin If there are any parts missing, please call the customer helpline on 01904 727503 Customer Helpline 01904 727503 www.gardenservicecentre.co.uk...
  • Page 10: Preparing To Operate The Pressure Washer

    Preparing to Operate the Pressure Washer Step 1 - Fit the high pressure hose to the washer WARNING! Always wear safety gloves when doing any work on the pressure washer. Connect the high pressure hose to the pressure washer. Attach high pressure hose to the machine’s water outlet (hand tighten only).
  • Page 11 Preparing to Operate the Pressure Washer Step 4 - Connect garden hose and water supply. Attach garden hose to water supply and turn water on. Step 5 - Connect socket Make sure the ON/OFF switch is in the OFF position and your hands and plug are dry.
  • Page 12: Operating The Pressure Washer

    Preparing to Operate the Pressure Washer Operate the Pressure Washer Step 1 - Starting WARNING! Wear suitable clothing, ears and eyes protecting when working with the equipment. Ensure that the equipment is functional before each use. Ensure that the mains voltage value matches the label on the equipment.
  • Page 13 Operate the Pressure Washer Step 3 – Use the high pressure lance WARNING! - Always turn off the machine when changing the high pressure lance.-The trigger gun is subjected to a recoil force when the water jet is discharged. Make sure that you have a firm footing and are also holding the trigger gun and spray lance with both hands.
  • Page 14 Operate the Pressure Washer Step 4 – Use the high pressure lance (continued) CAUTION! - Jet spray adjustment is very aggressive. Do not adjust while spraying. Switch the machine off when interrupting your work for extended periods of time. - The high-pressure pump starts running as soon as you operate the hand-held spray gun. The high-pressure pump stops running as soon as you release the trigger on the hand-held spray gun.
  • Page 15: Maintenance And Repair

    Maintenance and Repair Maintenance and Repair WARNING! Always switch the product off, unplug from the power socket and let the product cool down before performing inspection, maintenance and cleaning work! - After every use wipe the machine with a slight damp cloth. Do not clean the machine using a high-pressure water jet.
  • Page 16: Troubleshooting

    Troubleshooting General Troubleshooting WARNING! - Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself! - Always turn off the machine and remove the plug before making any adjustment.
  • Page 17: Technical Data

    Technical Data Technical Data Table Voltage 230-240V~/50Hz Input power 1400W Working pressure 60bar Max pressure 90bar Rated flow 4.5l/min Max flow 5.5l/min Inlet T Net weight Measured sound pressure level 83dB (A), k=3 dB (A) Measured sound power level 95dB (A), k=3 dB (A) Guaranteed sound power level 98dB (A) Vibration...
  • Page 18: Plug Replacement

    Recycling and Disposal Recycling and disposal (continued) This symbol is known as the Crossed out Wheelie Bin Symbol. When this symbol is marked on a product or battery, it means that it should not be disposed of with your general household waste.
  • Page 19: Getting Help

    Plug Replacement Plug Replacement (continued) CABLES IMPORTANT • Use only 1.00mm size cable up to 40 metres length maximum. Maximum rating: 1.00mm size cable, 10 amps 250 volts AC. • YOUR HIGH PRESSURE WAHSER IS SUPPLIED WITH CABLE WIRED DIRECTLY INTO THE PRODUCT.
  • Page 20: Guarantee

    Guarantee Dear Customer, In the unlikely event that your device develops a fault, please contact our Customer service department on the telephone number shown below. 1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. Claims must be accompanied by Proof of Purchase. This must be in the form of a Sales receipt or Bank statement and must show that the product has been purchased within 1 years prior to the claim, from the retailer that it was originally sold to.
