SIRIUS CAPACITOR MODULE
User Manual
Model number: 10000-384-A-1C-TM-SD-A-X-X-G
Version 1.1; Release Date: July 2020
Author:
Mamoona Khalid
Sirius Capacitor Module – User Manual
Model Number -10000-384-A-1C-TM-SD-A-X-X-G
This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc.
Kilowatt Labs, Inc. |
www.kilowattlabs.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kilowatt Labs 10000-384-A-1C-TM-SD-A-X-X-G
Summary of Contents for Kilowatt Labs 10000-384-A-1C-TM-SD-A-X-X-G
- Page 1 Version 1.1; Release Date: July 2020 Author: Mamoona Khalid Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 2 All trademarks are recognized, even if not explicitly identified as such. Kilowatt Labs® is a registered trademark of the Company. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 3: Table Of Contents
7 Automatic Safety Shutdown:....................... 28 8 Trouble Shooting:........................30 9 Features:............................31 Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 4 12 Disposal:............................ 33 13 Test Procedures:........................34 13 FAQ’s:............................34 Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 5: Safety Instructions
‘Note” provides tip that are valuable for optimal operation of your product. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 6: Safety Precautions
→ Protect surrounding electrical components from incidental contact. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 7: Module Connection Safety Precautions
Selling and installation of this Module is only through the Company’s Resellers who are trained on installation, operation and maintenance of the Sirius Modules. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 8: Product Introduction
8) Not Available 9) Not Available 10) General Module Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 9: Product Overview

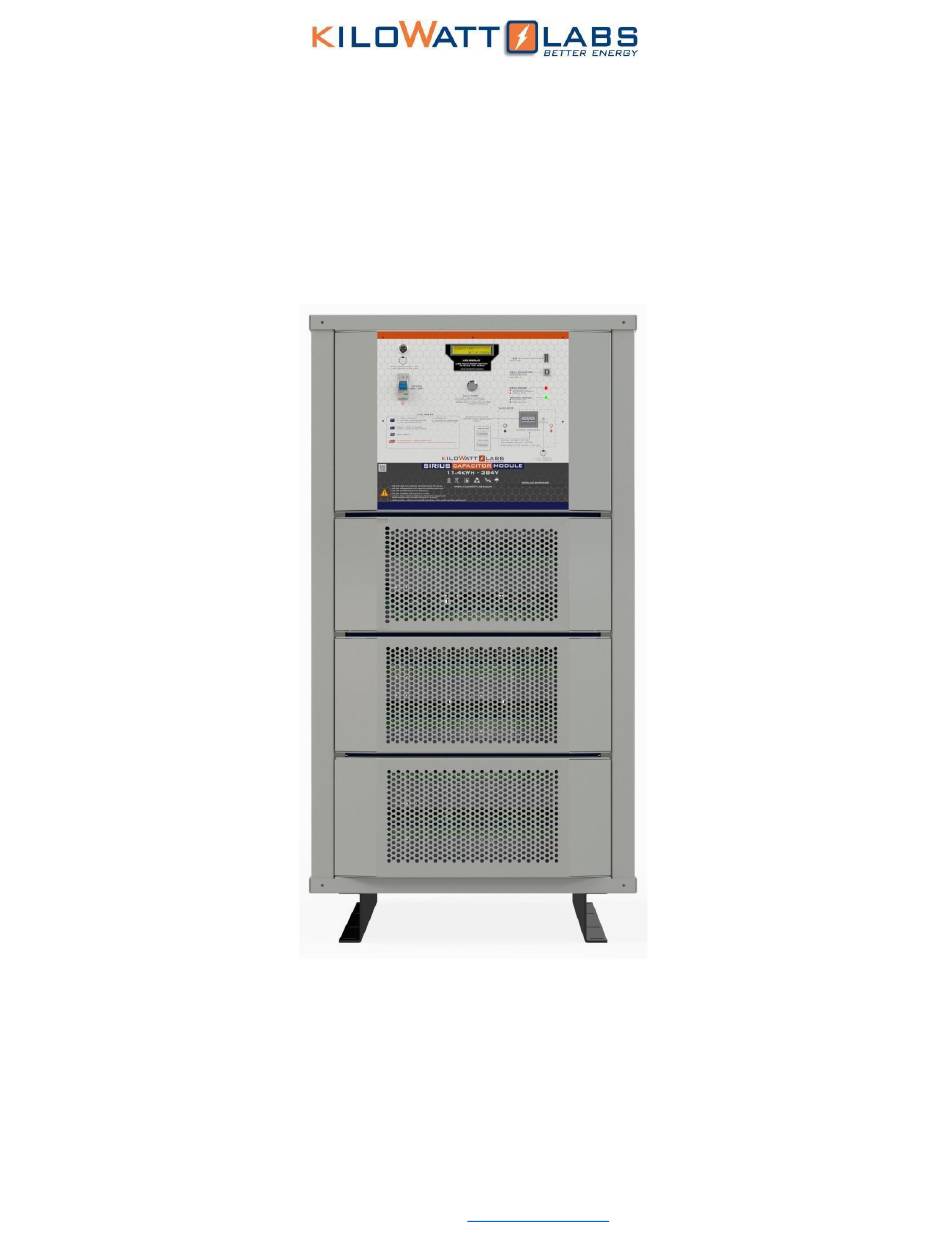

The appearance of the Sirius Module is shown below: Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 10 2.2.2 Mechanical Drawings: Back View Front View Side View Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 11 Length 640 mm Height 1089 mm Weight 277 kg Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 12: Parts Description
2× 125A 2P DC circuit DC Circuit Breaker breakers DIN Connector For Recovery Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 13 After 1 second, the following two LCD screens get switched with each other. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 14 Make sure that there is no external load or charger before setting the current to zero. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 15 Module from over current, the circuit breaker will trip. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 16 40°C and will turn OFF once the temperature goes down to 35°C and below. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 17: Module Installation
Sirius Capacitor Module: 10KWh, 384VDC • USB Cable A-B • 35mm² Charging Cables Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 18: Electrical Installation
3. Make sure to activate the Module by turning ON the power switch to get the output from the terminal. 4. Turn ON the Charger. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 19: Connecting Module To Load
Make sure to activate the Module by turning ON the power switch to get the output from the terminals. • Turn ON the discharger. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 20: Connecting Modules In Parallel
Charge all the Modules to 100% SOC or same voltage level before connecting them in parallel. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 21 Modules cannot be connected in series-parallel combination under any circumstance. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 22: Operation Procedures
4. Turn ON the circuit breakers at the back of the Module. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 23 5. When the Log-In appears, Sirius VIEW, enter the default username and password as shown below. Default Username: admin Default Password:123 Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 24 8. When the connection between PC and Module is established successfully, INIT.LED will be constantly turned ON. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 25 Application manual is downloaded automatically when you install Sirius VIEW application. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 26: Recovery Procedure
DIN connector. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 27 5. When the Module reaches the required voltage, the Module can be charge through the positive and negative terminals of the Module. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 28: Automatic Safety Shutdown
LCD will display Low Charge this message every 30 seconds. Module Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 29 Over Temperature This means that electronic switch has reached Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 30: Trouble Shooting
Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 31: Features
5. Sirius Module can be used with Power Save Mode, this feature can be activated by Sirius VIEW Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 32: Technical Features
7. Sirius Module firmware can be customized easily based on user needs. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 33: Shelf Life
The Sirius Module does not require periodic maintenance. 12 Disposal: Dispose according to local regulation. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 34: Test Procedures
Record test time, test current, voltage and total charge energy at the end of charge cycle (t2, I2, V2, E1). Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 35 Vmax−Voc • Self-discharge (%) = [ ] × 100 Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 36: Faqs
Module needs to be calibrated. But before that please check the Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 37 & measurement as well as to enhance the performance of the Module. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 38 After the troubleshooting if the problem still doesn’t solve, please consult with your Reseller. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 39 (current, voltage, date and time, alarm, temperature) you can use Sirius Config for calibrating. For more information contact your Resellers. Sirius Capacitor Module – User Manual Model Number -10000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
