Draper D20EG Manual

Draper D20EG Manual

20v engraver/grinder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

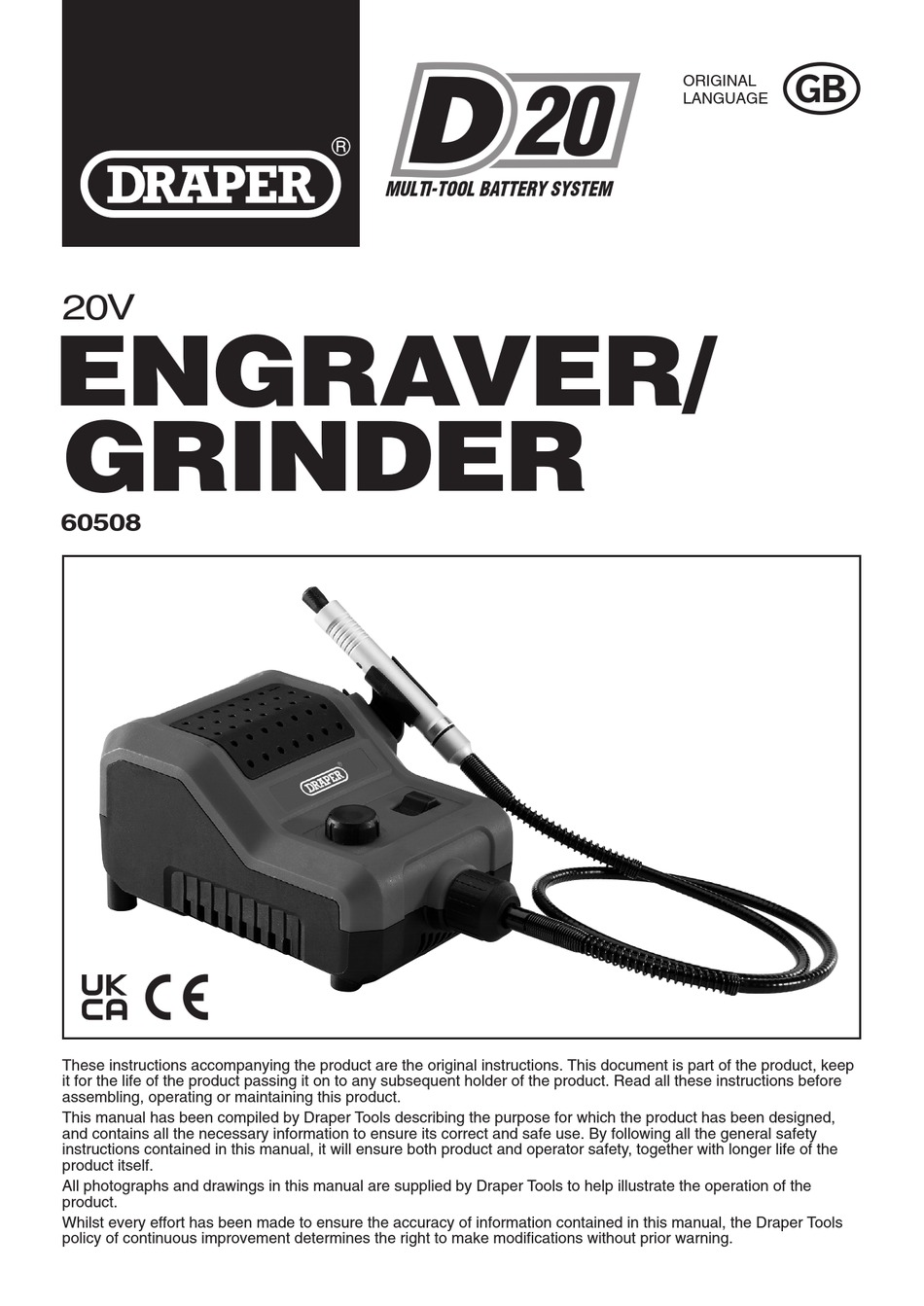

20V
ENGRAVER/
GRINDER
60508
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
MULTI-TOOL BATTERY SYSTEM
ORIGINAL
LANGUAGE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D20EG and is the answer not in the manual?

Questions and answers

Summary of Contents for Draper D20EG

  • Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS TABLE OF CONTENTS TITLE PAGE INTRODUCTION: ......................2 REVISIONS: ......................... 2 UNDERSTANDING THIS MANUALS SAFETY CONTENT: ......... 2 COPYRIGHT © NOTICE: ..................... 2 CONTENTS TABLE OF CONTENTS ....................3 WARRANTY WARRANTY ......................... 4 INTRODUCTION SCOPE ......................... 5 SPECIFICATION ......................5 HANDLING AND STORAGE ..................

  • Page 4: Warranty 3.1 Warranty

    This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period.

  • Page 5: Introduction

    Suitable for enthusiasts and tradespersons alike. This power tool is intended to function as a grinder, sander, wire brush, polisher, carving or cut-off tool. Any other application is considered misuse. SPECIFICATION Stock No...........................60508 Part No........................... D20EG Voltage ............................20V No load speed ......................5000-34000rpm Soft shaft length ........................910mm Chuck size ..........................3.2mm Accessories ..................

  • Page 6: Health And Safety Information

    HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE Warning! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 7: Additional Safety Instructions For Grinding, Sanding, Wire Brushing, Polishing, Carving Or Abrasive Cutting-Off Operations

    HEALTH AND SAFETY INFORMATION g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
  • Page 8 HEALTH AND SAFETY INFORMATION d) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately controlled. e) The arbour size of wheels, sanding drums or any other accessory must properly fit the spindle or collet of the power tool.
  • Page 9 HEALTH AND SAFETY INFORMATION q) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards. r) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
  • Page 10 HEALTH AND SAFETY INFORMATION e) When wheel is pinched, snagged or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur.
  • Page 11 HEALTH AND SAFETY INFORMATION j) The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. For commercial transports e.g. by third parties, forwarding agents, special requirement on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

  • Page 12: Technical Description

    TECHNICAL DESCRIPTION IDENTIFICATION (1) Accessory storage for frequently used (5) Collet nut. bits. (6) Pen holder. (2) Speed control dial. (7) Key hole hanger. (3) On/off switch. (4) Flexible shaft. – 12 –...

  • Page 13: Unpacking And Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 14: What's In The Box

    NOTES WHAT’S IN THE BOX As well as the main product, there are several parts not fitted or attached to it. Note: For details of our full range of accessories and consumables, please visit drapertools.com (15) (16) (10) (17) (11) (18) (19) (12)

  • Page 15: Preparing The Engraver/Grinder

    PREPARING THE ENGRAVER/GRINDER CONNECTING THE PEN HOLDER AND FLEX SHAFT TO THE ENGRAVER/ GRINDER CONSOLE – FIGS.1 – 2 − Slide the flange on the pen holder (6) into the opening on the side of the engraver/grinder console until it is fully seated. Note: Once fully seated, the tab on the flange will snap into the housing, preventing the pen holder from being removed.

  • Page 16: Operation

    OPERATION INSTALLING/REMOVING BATTERY PACK – FIG.3 To install: − Insert the battery pack. − Make sure the latches on each side of the battery pack snap into place and the battery pack is secured in the product before beginning operation. To remove: −...

  • Page 17: Using Mandrels

    OPERATION USING MANDRELS – FIGS.6 – 7 The most common types of mandrel to use with this tool include the standard mandrel which is used with cut-off discs, grinding wheels, emery wheels, and cut-off wheels. Screw mandrels are used with polishing wheels and polishing drums. Drum mandrels are used with sanding drums.

  • Page 18: Selecting The Right Speed

    OPERATION SELECTING THE RIGHT SPEED – FIG.8 − The engraver/grinder has a speed range of 5,000-34,000 RPM. To select the right speed for each job, use a practice piece of material. Vary speed to find the best speed for the accessory you are using and the job to be done.
  • Page 19 OPERATION Note: − Plastic and materials that could melt at low temperatures should be cut at low speeds. − Soft wood should be cut at high speed. − Aluminium, tin, and copper, lead, and zinc alloys may be cut at any speed, depending on the type of cutting being done.

  • Page 20: Operating The Engraver/Grinder

    OPERATION OPERATING THE ENGRAVER/ GRINDER – FIG.9 Learning to use the engraver/grinder: − Hold the pen in your hand and get used to its weight, balance, and the taper of the housing. This taper permits the pen to be grasped like a pencil.

  • Page 21: Maintenance And Troubleshooting

    10. MAINTENANCE AND TROUBLESHOOTING 10.1 MAINTENANCE Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc. –...

  • Page 22: Explanation Of Symbols

    11. EXPLANATION OF SYMBOLS 11.1 EXPLANATION OF SYMBOLS Continuous A-Weighted Sound Read the instruction manual. Pressure Level. Wear face mask and safety Class II construction glasses. (Double insulated). WEEE – Waste Electrical & Electronic Equipment. Wear ear defenders. Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish.

  • Page 23: Disposal

    12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •...
  • Page 24 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
