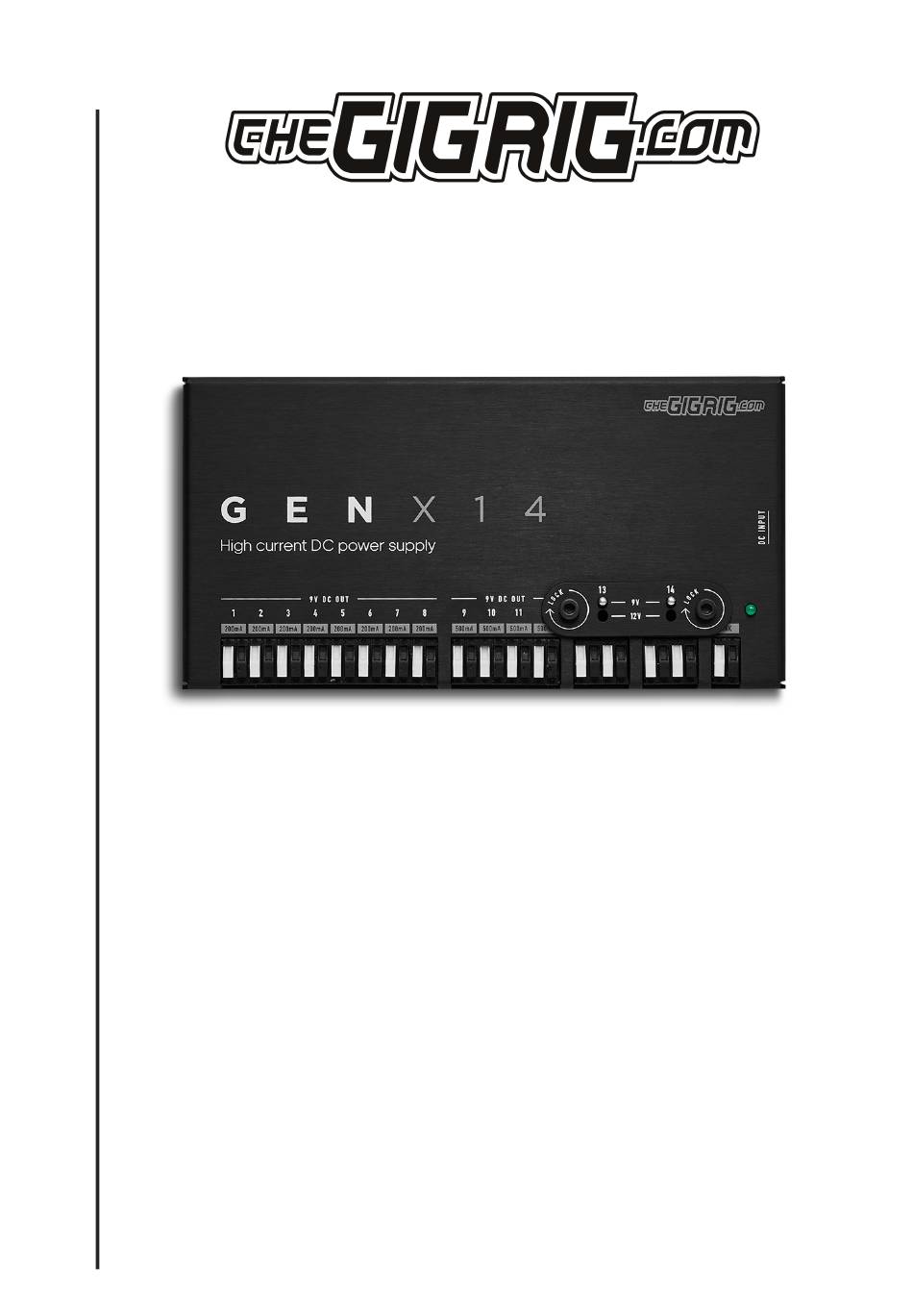

- Page 1 GENX14 HIGH CURRENT DC SUPPLY MANUAL TheGigRig Ltd February 2023...
- Page 2 1000mA each at either 9 or 12VDC. For pedals such as Kingsley and Effectrode this amount of current is a must and delivered beautifully by the GENX14. Each of the 1000mA outputs has two sets of connection tabs. It might be that you want to power a high current digital pedal and something else.
- Page 3 The GigRig Ltd Unit 15 Whitehill Industrial Pk, Whitehill Lane Royal Wootton Bassett, Wiltshire. UK SN4 7DB LOCK GUARD To ensure you don’t accidentally send the wrong voltage into any of your expensive pedals we’ve provided a LOCK GUARD on the switch. If you want to swap the voltage simply undo the two hex screws, remove the lock guard, and flick the switch.
- Page 4 Royal Wootton Bassett, Wiltshire. UK SN4 7DB Understanding the LINK output The LINK output links to the DC input. Powering the GENX14 with the 24V power supply provided means the LINK output will be 24V. If you power the GENX14 with a Generator the LINK output will be 9V.
- Page 5 How do I connect a dc cable? To connect a dc cable to GenX14 simply cut the cable to length, and push the wire with the white stripe into the white tab, and the black wire into the black tab You MUST push the tabs flat to connect.
- Page 6 Warranty: The GigRig warrants the product to be free from defects in material and workmanship for a period of 2 years from the original date of purchase. If the product fails within the warranty period, The GigRig will repair or, at our discretion, replace the product and cover the cost of return shipping to the original purchaser.
