Summary of Contents for Songmics USTR14

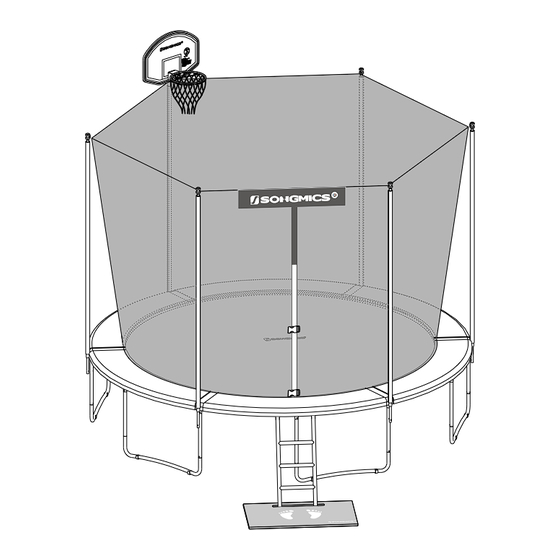

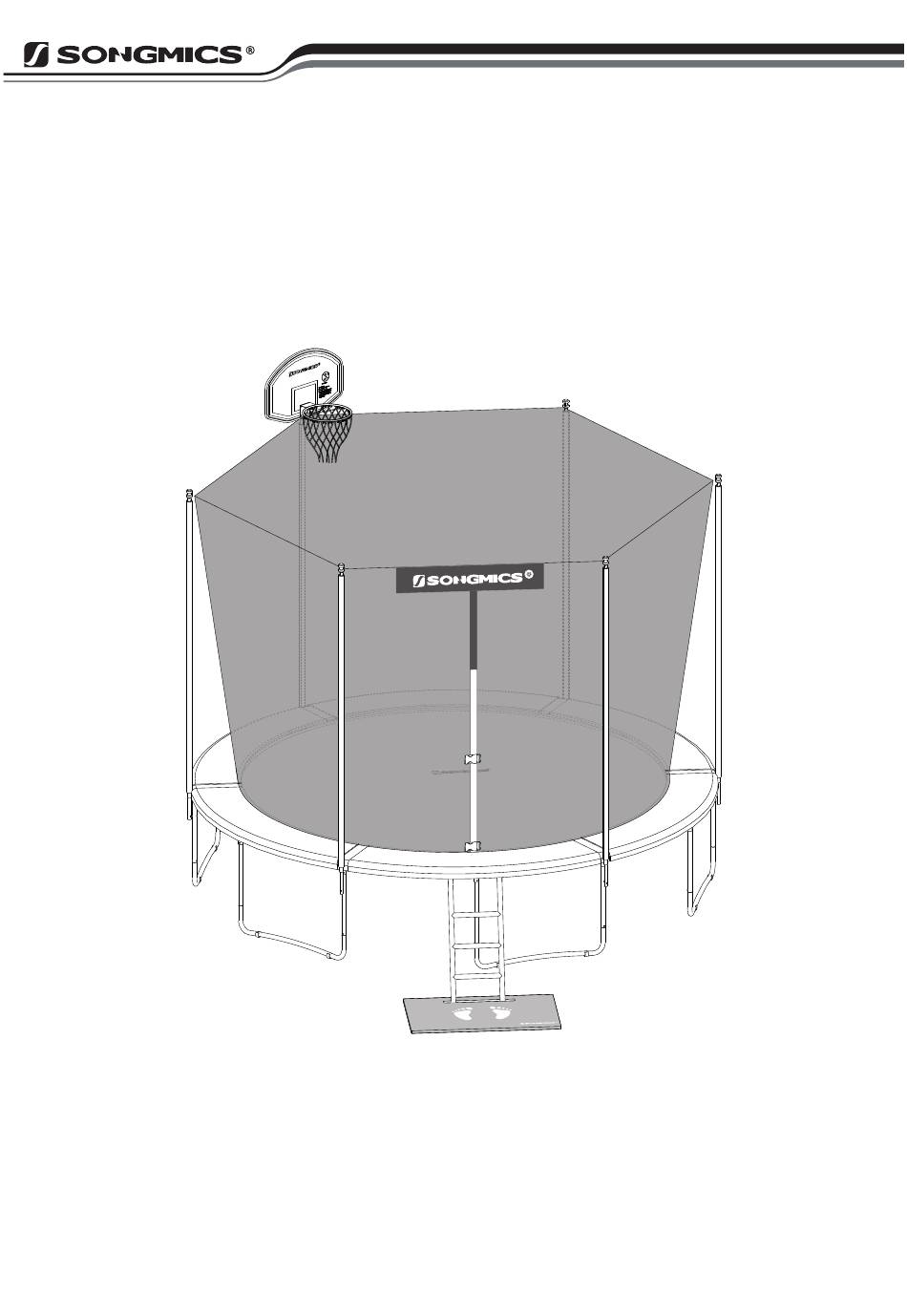

- Page 1 USTR14...
-
Page 2: General Guidelines
General Guidelines Please read the following instruction carefully and use the product accordingly. Ÿ Please keep this manual and hand it over when you transfer the product. Ÿ This summary may not include every detail of all variations and considered steps. Please contact us when further information and help are Ÿ... - Page 3 Make sure there is enough horizontal activity space. The trampoline must keep a distance of at least 3m from the buildings, the walls, the fences Ÿ or the electric cables. The metal frame of the trampoline will conduct electricity. Please assemble the trampoline away from all power supplies. All electrical equipment Ÿ...
-
Page 4: Care And Maintenance
Please check regularly whether these parts have been damaged and whether they are still able to withstand the weight of the user. Please replace the jumping mat and spring guard pad when damage occurs. For your own safety, use the original spare parts only, which can be sourced from Songmics. If in any doubt, please contact our service team. Ÿ... -
Page 5: Risk Of Injury
WARNING! Trampolines over 50cm (20inch) in height are not recommended for children under 6 years of age! Children do not recognize the Ÿ potential dangers from this product. Keep children away from this product. Trampolines are not toys. The product has to be stored out of reach of children and pets. Ÿ... - Page 6 Somersaults: Landing on the head or neck, even if it may happen in the center of the trampoline, increases the risk of neck and back injury, Ÿ which can lead to paralysis and even death. This can occur if the user makes an error and falls forward or backward. No somersaults should be attempted on the trampoline.
- Page 7 × 1 × 96 × 6 Jumping Mat Spring Top Frame × 6 × 5 × 6 Leg Joint Pole × 6 Top Frame Enclosure Pole Cap Leg Joint Pole × 6 × 1 × 5 U-shaped Leg Spring Guard Mat Rope ×...
- Page 8 × 5 × 1 × 5 M6 × 50mm Φ25 × 1.2 × 1060mm Safety Enclosure Net Loop Screw Enclosure Pole (lower) × 1 × 5 × 1 M6 × 80mm M6 × 85mm M6 × 55mm Long screw Long screw Loop Screw ×...
- Page 9 × 4 × 6 × 1 Hinge × 2 M8 × 30mm Medium Screw Protective Sleeve Screw × 1 × 1 Backboard Basket Rim × 2 × 1 × 1 Mat for Changing Shoes Allen Wrench × 1 × 6 Spring Hook U-type to nail Wrench...
- Page 10 Attach the U-shaped leg (F) to the leg joint pole (E) together in strict accordance with the instruction as shown in the picture. Ÿ After assembly of the 6 groups of U-shaped legs is complete, ensure that all the pins are ejected. Ÿ...
- Page 11 As shown in the picture, attach the properly assembled U-shaped legs with the top frame(D) to ensure that the leg joint pole(E) is completely inserted into the Ÿ T-shaped jacket attached with the top frame(D) (adjust the opening direction of the side hole of the leg joint pole(E) before pressing to ensure that the screw hole of both the leg joint pole(E) and the T-shaped jacket is facing one-to-one.) As shown in the picture, insert the four top frames©...
- Page 12 Check each joint of both the top frames and the U-shaped legs to ensure that each part is firmly fixed. Ÿ...
- Page 13 Ÿ For assembly of the jumping mat (A) and springs (B), please strictly refer to the following methods: A. First, select a spring hole on the top frame as a starting point and mark it, and then, as shown in the picture, find the 18th, 36th and 54th Ÿ...
- Page 15 Spring Guard(G) Assembly Do not attach the rubber band on the bottom of the spring guard mat to the circle frame until step 15. Ÿ...
- Page 16 Connect the Part I2 and Part J2 by spring button clips, making sure that the side with spring button of Part I facing upward; put on the Ÿ protective sleeve (V) from the bottom and fasten the rail and foam tightly, finally attach enclosure pole caps to the rail on the top tightly with spring button.
- Page 18 Connect the Part I1 and Part J1 by spring button clips, making sure that the side with spring button of Part I facing upward; put on the Ÿ protective sleeve (V) from the bottom and fasten the rail and foam tightly.
- Page 19 First, fix the backboard (X) and basket rim (Y) together Ÿ with the hinge (W1) and screws (U, R, S2). 8PCS 4PCS 4PCS...
- Page 20 2PCS...
- Page 21 Assemble the backboard on the rail which is connected by Part I2 and J2 Ÿ with eyebolts (L2) and screws (M2). Ÿ Erecting one of the enclosure pole, one person should support it while another person assembles the loop screw (L) into the pole, and then as shown in the picture, assembles the loop screw (L), plastic pad (P), gasket (Q) and crew cap (S) into the connecting parts between T-shaped jacket and leg joint pole and into the connecting parts between lower part of the...
- Page 22 Then assemble the long screw(M), plastic pad(P), gasket(Q) Ÿ and screw cap(S) into the bottom of the enclosure pole and the leg joint pole. 5PCS 1PCS 6PCS 6PCS...
- Page 23 Loop the rope end of safety net through enclosure pole caps and secure Ÿ them tightly to tighten the safety net for better using effect.
- Page 24 Hang the ladder onto the entrance of the trampoline. Ÿ...
- Page 25 Loop the rope through the preformed hole of the safety Ÿ net and fix it to the triangle ring; make sure each hole of the safety net are connected with the triangle ring.
- Page 26 Note: You should go around the whole enclosure net again to make sure all the hooks and screws are securely tightened onto the Ÿ trampoline, which ensures the safety enclosure net is well fixed, otherwise the safety enclosure net cannot take on a role of protection. Important Advice for Usage For first time use of the trampoline, users must concentrate on learning fundamental body positions.
- Page 27 Please check the structure of trampoline after the whole assembly is finished for safety. Place it in a suitable position for easy access, then secure Ÿ leg tubes with ground pegs and place the mat (Z5) next to the ladder for convenience.
- Page 28 Start in the center of the jumping mat, keep feet as wide as the shoulder, arms at side, eyes on the end of the mat. Ÿ As you jump from trampoline, swing arms sideways and upwards slightly to pull up the body. Upon landing, keep Ÿ...
- Page 29 Half Pirouette:Done from the basic standing jump. At the highest height of bounce, rotate 180 degrees taking Ÿ yourself as a center. Do not lose control and land on your feet. Full Pirouette: Done from the basic standing jump. At the highest height of bounce, rotate 360 degrees taking Ÿ...
