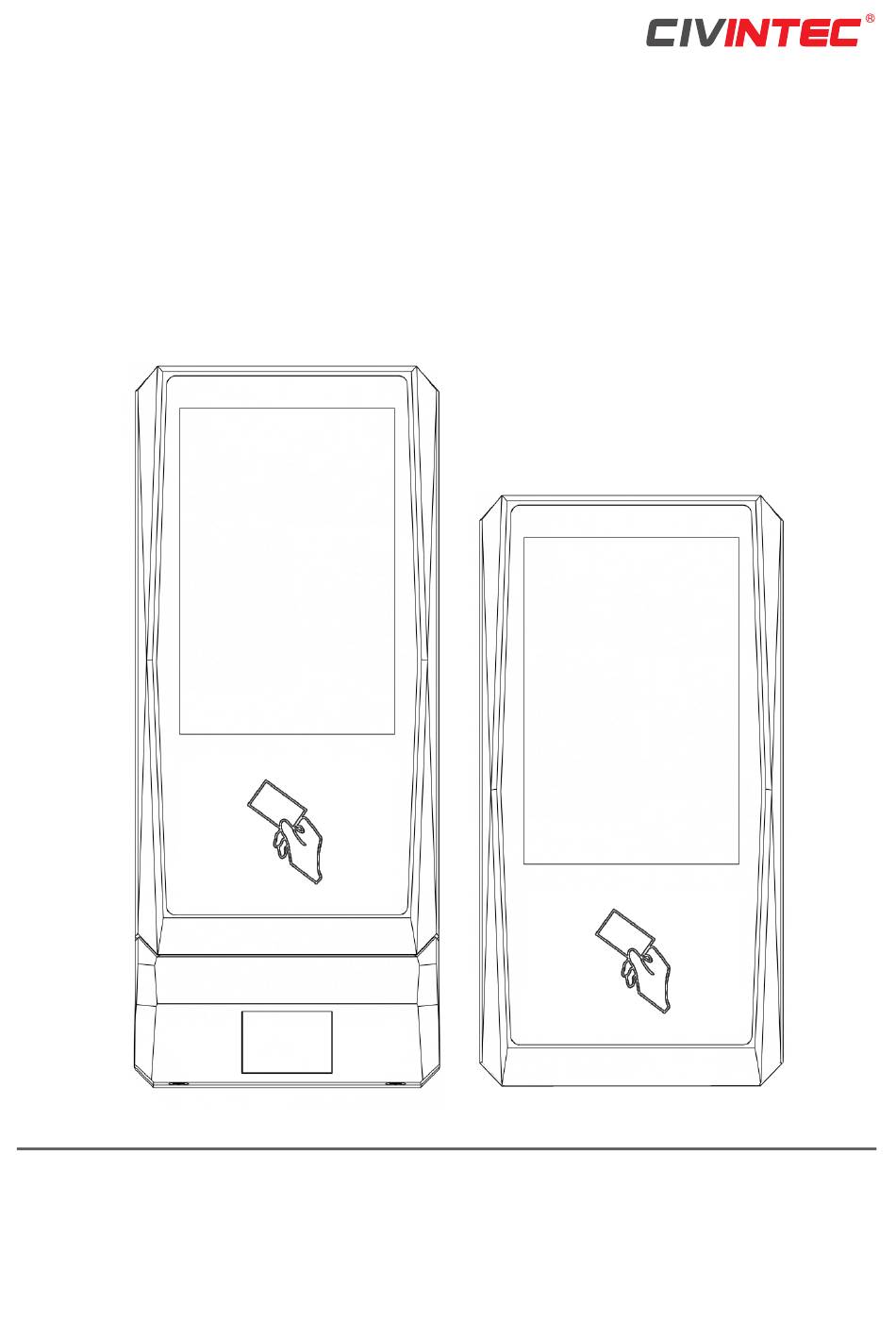

CRYSTAL TOUCH TERMINAL
CT9 PRO INSTALLATION GUIDE
V2.0.1
Suitable models:
CT9-T-P, CT9-T-QP, CT9-T-P-M, CT9-T-QP-M,
CT9-T-P-UV, CT9-T-P-M-UV, CT9-T-QP-UV, CT9-T-QP-M-UV

Advertisement

loading
Need help?

Need help?

Do you have a question about the CRYSTAL CT9 PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Civintec CRYSTAL CT9 PRO

  • Page 1 CRYSTAL TOUCH TERMINAL CT9 PRO INSTALLATION GUIDE V2.0.1 Suitable models: CT9-T-P, CT9-T-QP, CT9-T-P-M, CT9-T-QP-M, CT9-T-P-UV, CT9-T-P-M-UV, CT9-T-QP-UV, CT9-T-QP-M-UV...
  • Page 2 *All rights reserved *Subjects changed without notice Information furnished by CIVINTEC Global Co., Limited. is believed to be accurate and reliable. However, no responsibility is assumed by CIVINTEC Global Co., Limited. for its use; or for any infringement of patents or other rights of third parties which may result from its use.
  • Page 3: Technical Specification

    125KHz, 13.56MHz ISO14443A/B, ISO18092 NFC ISO-protocol Not all ISO14443 B cards have been implemented in the reader, please contact Civintec for more details on current status. 125KHz Prox, 125KHz EM, 13.56MHz Mifare® Classic, Ultralight®, Contactless cards Ultralight®C, Mifare® Plus, DESFire® EV1/EV2, NFC tags (T2T, T4T)
  • Page 4 Terminal Introduction ① 3.5” Touch Screen Display ② Card Reading Area ③ QR Code...
  • Page 5 Terminal introduction ① ⑤ ⑨ SAM Slot Relay Buzzer ② ⑥ ⑩ BLE & firmware upgrade interface PIN interfaces Connector for 4G ③ ⑦ Software upgrade interface Connector for QR Code Speaker ④ ⑧ Tamper alarm PoE (Optional) RJ45 TCP/IP port RJ45 TCP/IP port The default IP address is"192.168.1.140".
  • Page 6 Installation plate Modules Introduction CT9-T/H-QP Installation Plate CT9-M(E)-T Installation Plate ① ② Tamper Alarm 4G Module (Optional) ③ ④ QR Code Scanner (Optional) 4G SIM slot...
  • Page 7: Package Content

    Package content Items Picture Volume ① CT9 Pro terminal device ② Installation plate QR Code Scanner ③ (Optional) ④ Waterproof silicone strip ⑤ Screw ⑥ Screw expand tube ⑦ 8 PIN Connector ⑧ 2 PIN Connector ⑨ Fixing screw ⑩ RJ45 connector...
  • Page 8 18.1...
  • Page 9 Waterproof silicone strip Plug waterproof silicone strip into the groove at the upper end of CT9 Pro installation plate.
  • Page 10 ⑤ Screw Ensure that the area behind the tamper switch bulb of the installation plate is flat. Make sure that the Tamper Alarm button is completely against the wall for correct tamper alarm functionality.
  • Page 11 Unscrew the fixing screw from terminal and remove the installation plate from terminal. Ensure that the installation plate is fixed in the correct direction, the arrows pointing upwards.
  • Page 12 ⑥ Screw expand tube X4 Wall Mount According to the holes parameter of installation plate, punch holes in the wall and install pipe expanding. Make sure to punch holes in strict accordance with the parameters to avoid of plate deformation and failure installation. There’re two choices to punch holes.
  • Page 13 TCP/IP Connector wires ’ There s hole on installation plate, the hole is used for TCP/IP cable and connector wires. Thread the cables through hole before fixing it on the wall.
  • Page 14 ⑤ ⑤ ⑤ Screw Screw Screw ⑤ ⑤ Screw Screw ⑤ ⑤ ⑤ Screw Screw Screw TYPE 1 of Installation Hole TYPE 2 of Installation Hole When installing directly to wall or door, use the installation holes as picture describes. Make sure not to tighten the screws too hard as doing so will deform and skew the installation plate.
  • Page 15 ⑩ RJ45 Connector unused unused unused unused Refer to general standard for IP wire connection, connect and fix RJ45 connector to TCP/IP cable which thread through upper hole.
  • Page 16: Pin Connector

    ⑧ 2 PIN Connector ⑦ 8 PIN Connector Refer to CT9 Pro terminal PIN definition, connect the cables with 8Pin or 2PIN connector and fasten screws. 2PIN connector is used for relay output.
  • Page 17 17 18 19 20 Pin No. Description Pin Name Direction Voltage REMARK ---- Max.30V DC Relay 1 NO Normally Open Tamper Alarm IN/OUT Access Denied IN/OUT IN/OUT Access Granted RS485 Send/Receive Data- IN/OUT RS485 Send/Receive Data+ IN/OUT Ground Ground 9-30V DC Power Power 9-30V Description...
  • Page 18 CT9 Pro is with SAM secure access module for data encryption. In order to install the SAM into the terminal open the SAM socket by unlocking and opening the lid. Then place the SAM into the socket lock it into place by closing the lid and sliding it into locked position.
  • Page 19 CT9 Pro is with the option of 4G wireless communication. There’s SIM slot on installation plate to insert SIM card. In order to install the SIM card into terminal open the SIM socket by unlocking and opening the lid. Then place SIM card into socket lock it into place by closing the lid and sliding it into locked position.
  • Page 20 At the first time when you get the machine, you need to remove the QR code cover. Remove the two screws at the bottom of QR Code reader, and then hold the QRcode left and right and pull it out according to the direction of the picture.
  • Page 21 Remove the two screws on the bottom of the CT9 Pro body, then remove the CT9 Pro in the direction of the picture.
  • Page 22 Connect the cable of the 4G module to the 4G socket according to the picture. Connect the QR CODE module wire to the QR CODE socket as shown in the picture.
  • Page 23 Install CT9 Pro on the wall according to the direction of the picture. Red arrow direction indicates the point of force. Press the point of force according to the direction of the red arrow, when you hear the sound clip, it means that the installation is correct.
  • Page 24 Rotate the QR CODE scanner according to the picture, and tighten two screws on CT9 Pro body.
  • Page 25 Rotate the QR CODE scanner parallel to CT9 Pro terminal like the picture and install it in the direction of the arrow. when you hear the sound clip, it means that the installation is correct.
  • Page 26 Install two screws on QR Code bottom to fix the QR code scanner.
  • Page 27 FCC Caution: Part 15.21 Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
