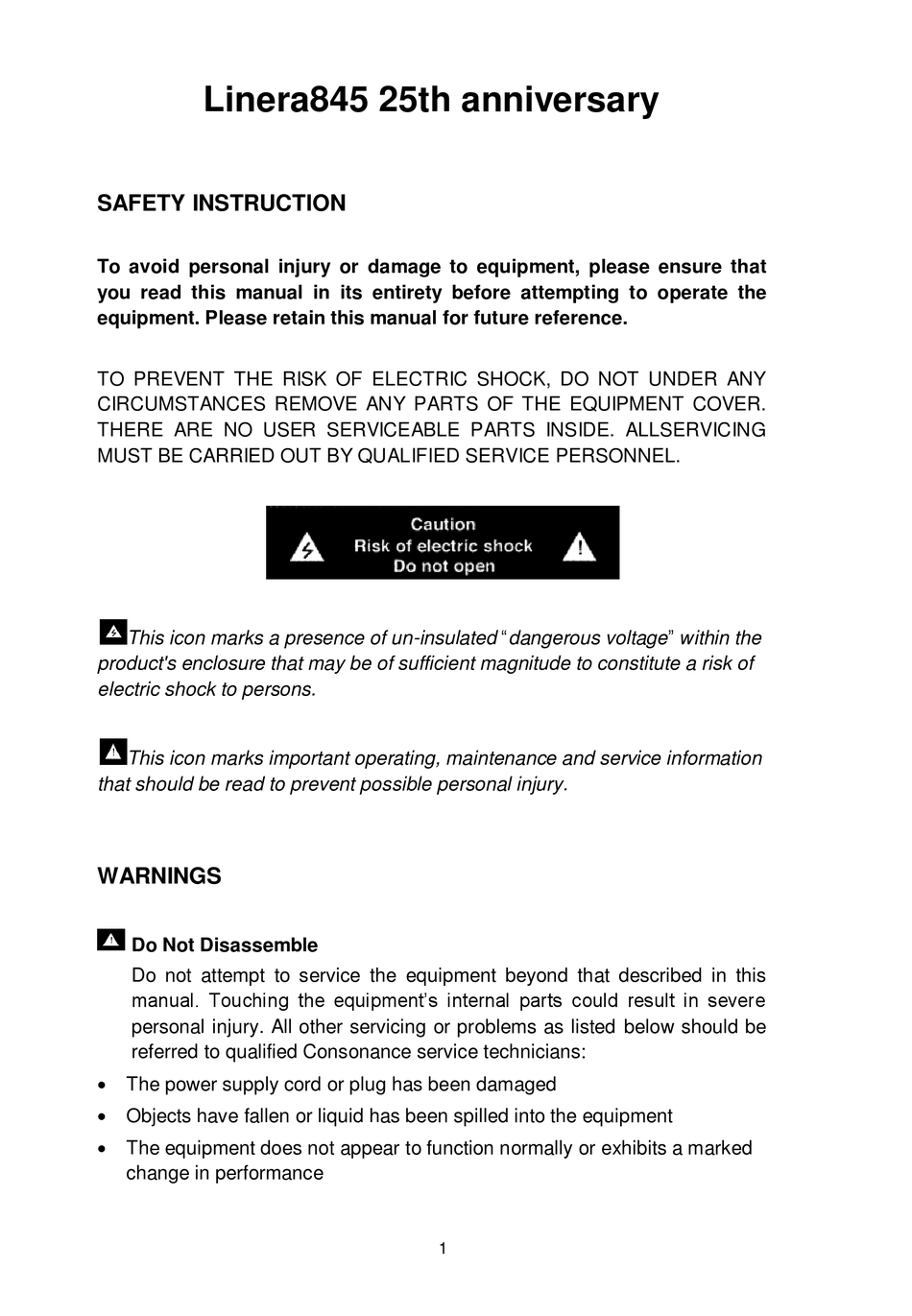

Linera845 25th anniversary
SAFETY INSTRUCTION
To avoid personal injury or damage to equipment, please ensure that
you read this manual in its entirety before attempting to operate the
equipment. Please retain this manual for future reference.
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT UNDER ANY
CIRCUMSTANCES REMOVE ANY PARTS OF THE EQUIPMENT COVER.
THERE ARE NO USER SERVICEABLE PARTS INSIDE. ALLSERVICING
MUST BE CARRIED OUT BY QUALIFIED SERVICE PERSONNEL.
This icon marks a presence of un-insulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
This icon marks important operating, maintenance and service information
that should be read to prevent possible personal injury.
WARNINGS
Do Not Disassemble
Do not attempt to service the equipment beyond that described in this
manual. Touching the equipment's internal parts could result in severe
personal injury. All other servicing or problems as listed below should be
referred to qualified Consonance service technicians:
 The power supply cord or plug has been damaged
 Objects have fallen or liquid has been spilled into the equipment
 The equipment does not appear to function normally or exhibits a marked
change in performance
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Linera845 25th anniversary and is the answer not in the manual?

Questions and answers

Summary of Contents for Consonance Linera845 25th anniversary

  • Page 1 Touching the equipment’s internal parts could result in severe personal injury. All other servicing or problems as listed below should be referred to qualified Consonance service technicians:  The power supply cord or plug has been damaged  Objects have fallen or liquid has been spilled into the equipment ...
  • Page 2 Lighting Consonance hi-fi system can be damaged by lightning. Power amplifiers are particularly at risk and therefore should be turned off when there is risk of lightning strike. For complete protection all mains plugs and any...
  • Page 3: Unpacking And Setup

    Opera Audio products. This manual has been prepared to help you to maximize your enjoyment of the performance and features of your new Consonance equipment. Please study this manual carefully and become acquainted with all the features, operation and capabilities of your new Consonance equipment.
  • Page 4: Operating Tips

    The power cord should be routed so that it is not likely to be stepped on or pinched by items placed upon or against it. All the plugs and sockets supplied with your Consonance equipment have been chosen because they mark the...
  • Page 5 C. Running in Your Consonance equipment will take a considerable time to run-in before it performs at its best. The duration varies, but under some conditions you will find that the sound continues to improve for as much as five weeks.
  • Page 6 This can lead to circumstances that may be unfamiliar to the equipment owner. The material that follows contains advice specifically related to Consonance equipment as well as more general warning about the use of domestic audio products. Please read it carefully:...
  • Page 7: Troubleshooting Guide

    Certain Consonance equipment is made in special versions for different territories as a result it is impracticable to arrange international guarantees. Please establish appropriate guarantee arrangements with your own dealer at the time of sale.
  • Page 8 components are custom made and specially matched, the replacement parts must be ordered through Opera Audio or its representative. Our dealer will have all relevant information about the service in your area and will ensure that you equipment is serviced without delay. If for some reason, there are no service facilities available in your area, please ship the equipment to the address listed at the back of the manual.
  • Page 9 Technical Specification 1. Power Switch 2,3. Hum Potentiometer 4. Input select 5. Left 845 Tube Bias Adjustment 6. Left Channel Meter Switch 7. Bias Meter 8. Right Channel Meter Switch...
  • Page 10 9. Right 845 Tube Bias Adjustment 10. Volume 11. Balanced Inputs 12. Unbalanced Inputs 13. Speaker output 14. Fuse 15. AC Power connection 230V / 115V / 100V AC dependent on country. Technical Specification Output power: 28W x 2 (RMS 1kHz) Distortion: <1% (11watt, 1kHz) Frequency: (-3dB) 10Hz - 27kHz Sensitivity: 310mV...
  • Page 11: Warranty

    Please mail or e-mail the Registration Card to the address as follows: The Opera Audio Co., Ltd. No.2 Jiuxianqiao Road, Chaoyang District, Beijing, China Tel: 86 10 59789215 Fax: 86 10 59789265 support@opera-consonance.com www.opera-consonance.com Registration Card Name Address City State...
