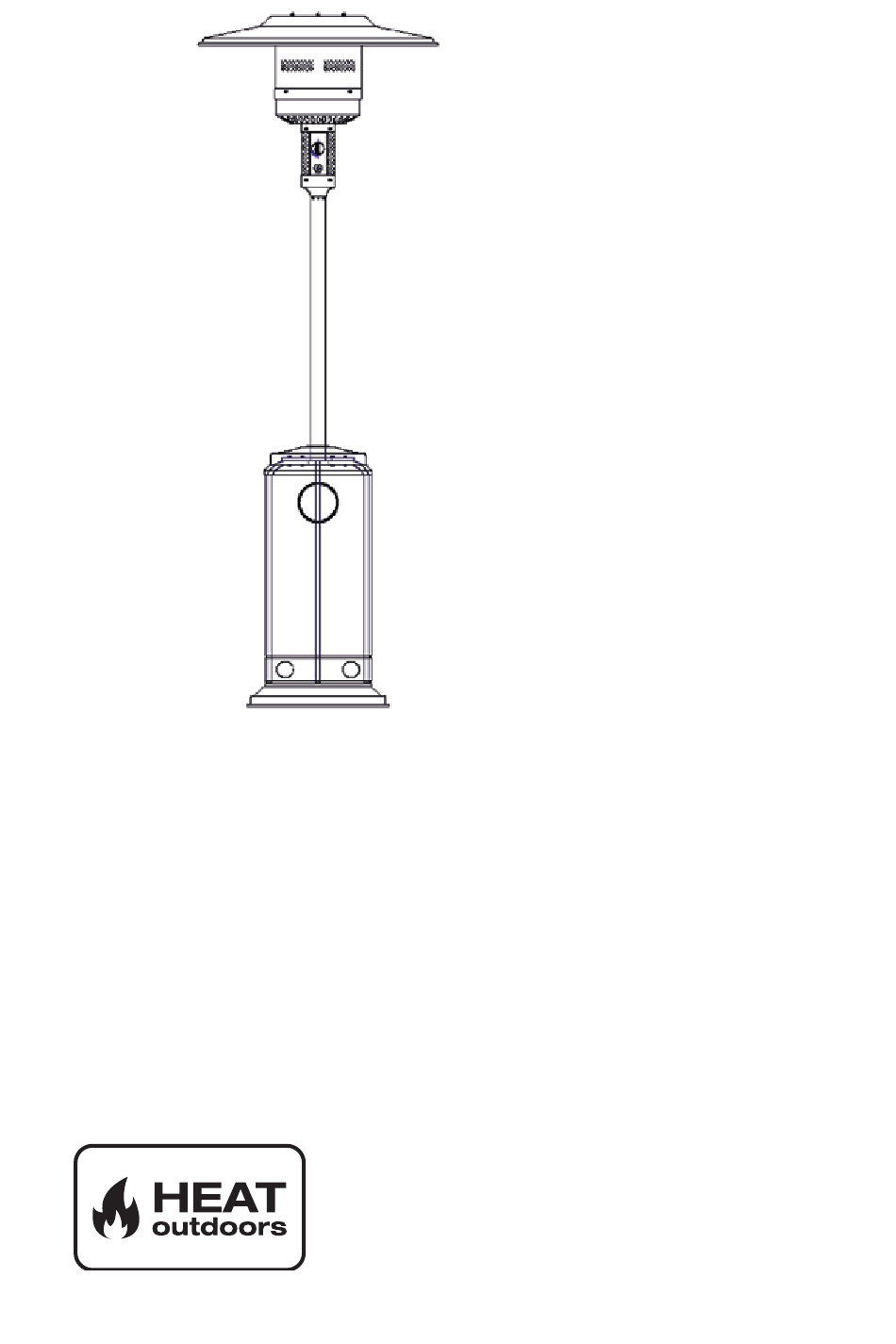

- Page 1 Sherpa Commercial Gas Flame Patio Heater Safety Instructions and Operation Manual 901233C Heat Outdoors www.heat-outdoors.co.uk Unit 9, Stort Valley Industrial Estate 01279 466500 Stansted Road, Bishop’s Stortford info@heat-outdoors.co.uk Hertfordshire, United Kingdom CM23 2TU...
-
Page 2: Table Of Contents
Contents Warning . . . . . . . . . . . . . . . . . . . . . 3 Location . -
Page 3: Warning
Warning Please carefully read all instructions provided before using this appliance . This heater must be installed in accordance with the instructions and local regulations . The use of this appliance in enclosed areas can be dangerous and is prohibited . •... -
Page 4: Location
Location The appliance is for outdoor use only. • Do not use the heater indoors or in an enclosed area . Always ensure that adequate air ventilation is provided . • Do not use the heater in a basement or below ground level . •... -
Page 5: Safety Precautions
Safety Precautions • Performance and safety service of this heater should be performed annually by a qualified gas engineer. • Do not use the heater in a combustable atmosphere . • Do not store or use petrol or other flammable liquids in or near the heater unit. •... -
Page 6: Gas Requirements
Gas Requirements • Use propane or LPG only . • The heater is designed for use with 11-13 kg cylinder . Maximum size of cylinder suitable for the appliance, w/ regulator attached, is Æ31 cm x 64 cm . Inner dimension of stand within the supporting bars is Æ32 cm x 69 cm . -
Page 7: Assembly Instructions
Assembly Instructions Tools you will need: • Open end wrench 10 & 13 mm • Adjustable opening wrench (2) 20 cm long • Slip joint pliers 23 cm long • Philips screwdriver w/ medium blade • Spray bottle of soap solution for leakage test Parts supplied: •... -
Page 8: Parts And Specifications
Parts and Specifications 950 mm Reflector Flame screen Burner base Air admittance fence Gas valve controller Base of control housing Post Tank housing Tank housing support Stand 446 mm Construction and characteristics • Transportable outdoor patio heater with tank housing •... -
Page 9: Assembly Procedure
Assembly Procedure Step 1 1-1 As shown, put the five root support bars in each respective position in the chassis . 1-2 Connect the support bars to the chassis with 5x M8 x 15mm screws . Step 2 2-1 Tighten three M8 screws with the cover placed at the bottom of the support rod . - Page 10 Step 3 4-1 Secure the 3 pcs 90 mm pins (reflector support bolts) on the cap of flame screen. 4-2 Connect the gas hose to the tapered end of the gas pipe and secure with metal clamp . (For gas hose with threaded connectors, bind 2 or more rounds of plumbing tape around the gas pipe for security .) 4-3 Bind 2 or more rounds of Teflon plumbing tape around...
-
Page 11: Operation
Operation Check and ensure that a battery is inside the ignition chamber and the unit has power. Ensure the anode (+) faces outside. The battery must be installed behind the igniter. To turn on the heater Turn on the valve on the gas supply cylinder . Press and turn the variable control knob to PILOT position (counter clockwise 90˚). -
Page 12: Cleaning & Maintenance
Replacing the gas cylinder Close the valve of the gas cylinder . Disconnect the regulator from the cylinder . Replace the cylinder . In the absence of any flame, remove the plug or seal cap from the cylinder valve. Check for the presence and good state of the gasket before connecting the regulator . Perform leak test using soapy water solution . -
Page 13: Storage
Storage Between uses: • Turn the control knob to “OFF” position . • Turn LPG cylinder to “OFF” position . • Store heater upright in an area sheltered away from weather conditions (such as rain, sleet, hail, snow) . • If desired, cover heater to protect exterior surfaces and to help prevent dust and debris collecting in air passages . -
Page 14: Servicing
Servicing It is recommended that before using the heater after a period of 3 months or before using the heater: • Check the condition of the gas cylinder . • Check the hose assembly for any wear or damage . If the hose and regulator assembly is damaged or more than 1 .5 years old replace with an approved hose and regulator . -
Page 15: Problem Checklist
Problem Checklist Problem Cause Solution No spark at pilot when the • Ignition positioned incorrectly • Replace the ignition • Ignition electrode broken • Free ignition cable . If control knob is engaged and • Ignition cable bent or broken damaged, replace this part turned counter clockwise to the pilot position... - Page 16 Burner flame is low • Hose may be bent or twisted • Straighten out the hose and • Low gas supply pressure ensure there are no splits, perform leakage test to ensure that there is no splits or damage to the hose . •...
-
Page 17: Customer Service
Customer Service • Repairs must be carried out by authorized specialists, thus ensuring electrical safety . • Please contact with the service agent or a suitably qualified electrician. • Improper repairs could lead to danger to the user . Warranty does not cover damage of failure which results from alteration, accident, misuse, abuse, neglect, commercial use or improper maintenance . - Page 18 Customer Service...
- Page 19 Customer Service...
- Page 20 Heat Outdoors Unit 9, Stort Valley Industrial Estate Stansted Road, Bishop’s Stortford Hertforshire, United Kingdom CM23 2TU www.heat-outdoors.co.uk 01279 466500 info@heat-outdoors.co.uk...
