Summary of Contents for Nikkei NF4014

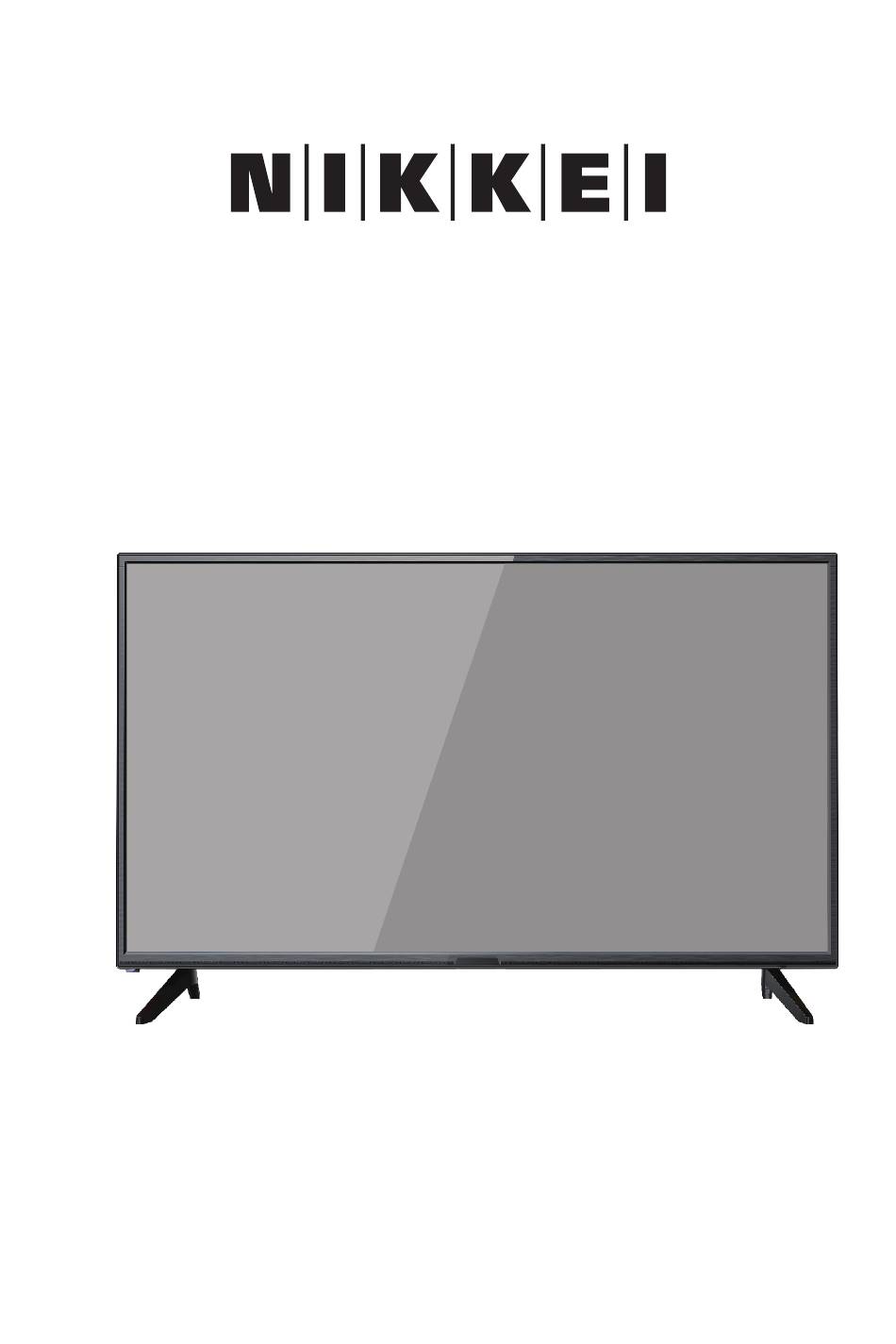

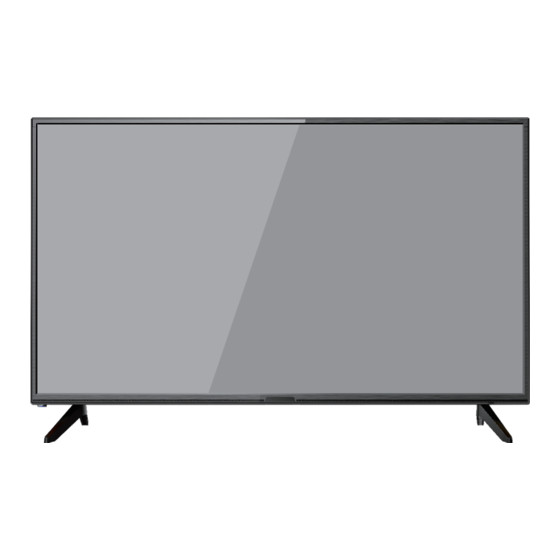

- Page 1 40" FHD LED TV User manual MODEL: NF4014...
-
Page 2: Important Warnings And Safety Advice
IMPORTANT WARNINGS AND SAFETY ADVICE We encourage you to read this user guide carefully and completely before installing and using your device. It is important that this user guide is kept with the device for any new consultation. If this unit is to betransferred to another person, make sure that the user guide follows the unit so that the new user can be informed of the operation of the unit.In this user guide, the following symbols are used:... - Page 3 Important safety instructions – please read carefully and keep for future reference To reduce the risk of fire or electric shock, do not expose this product to water, rain or moisture. To prevent the risk of electric shock, do not remove the cover or back of this product. In case of product failure, only qualified personnel can repair.
- Page 4 The product must be installed in accordance with local laws. Damaged batteries must be properly disposed. In order to protect the environment, please dispose the batteries properly, in accordance with local laws (information is available at your reseller). Remote control batteries (not included) shall not be exposed to excessive heat (e.g.
- Page 5 - If the supply cable is damaged, it must be replaced by the manufacturer or qualified after-sales personnel to avoid any danger. - This product must be connected to an electrical supply 100-240V ~ 50/60Hz. - The mains plug is used as the disconnect device, so the disconnect device shall remain readily operable WARNING Never place a television set in an unstable location.
- Page 6 Technical Specification: Name: Television Product Net Weight: 5.85Kg Operation Temperature: 0℃~40℃ TV Reception System: DVB-T2/C,DVB-S2 Auto Standby In order to save energy, the electricity consumption of this product has been reduced in both operation mode and standby mode. Furthermore, if no operation is carried out for four consecutive hours, the unit will automatically enter standby mode.
- Page 7 EN-06...
- Page 8 EN-07...
-
Page 9: Table Of Contents
Table Of Contents Important warnings and safety advice I - Control Panel II - Base Installation Guide III - Wall Mounting instructions IV - Connecting Cables V - Remote Control VI - Antenna Connections VII - Watching Television Programs VIII - First Time Installation A - Channel B - Picture C - Sound... -
Page 10: I - Control Panel
I - Control Panel The command buttons are at the back of the TV. Introduction for Each Key Turn the TV on or enter into standby mode. EN-09... -
Page 11: Base Installation Guide
II - Base Installation Guide The Way Of Installing Base: 1. Please put the base on the desk as shown figure 1. (the stand approximately 180 degrees from horizontal). 2. Put the hole of the base upright into shaft of unit(as shown figure 2). 3. -
Page 12: Wall Mounting Instructions
III - Wall Mounting instructions ● Use standard M5x10mm screws (4 pieces, not included) to mount this TV. Using different screws as specified will damage the wall mounting support and will be outside the scope of product guarantee. ● Contact a professional technician for assistance when wall mounting your TV. -
Page 13: Connecting Cables
IV - Connecting Cables This TV has digital multimedia performance and can be connected to multiple external devices.The following diagram presents the connections to other video and audio HDMI 1(ARC) HDMI 2 HDMI 3 COAX Mini AV In Mini AYPbPr In EARPHONE PC VGA PC AUDIO... -
Page 14: Remote Control
V - Remote Control 1 Power Press this button to switch on the TV. Press again to enter the mode 2MUTE Press this button to cancel the output sound. Press again to set the normal audio level. 3 0-9 Figures 0-9 are used for directly the number of the input channel. - Page 15 V - Remote Control 17 OK Select the option previous/next Increase / decrease option value. Select the option previous/next. 18MENU Select a menu. 19 EXIT Return to TV viewing from any menu. 20 REVEAL Display the characters hidden. Fast Forward. 21 SIZE Change the size of current page.
- Page 16 BATTERY INSTALLATION Install the batteries as shown in the following figures. Make sure the + and - terminals are positioned as indicated in the battery compartment (Fig. 1)- USEFUL DURATION OF BATTERIES - Normally the batteries last for a year, even if the consumption of the batteries depends on the effective use of the remote control.
-
Page 17: Antenna Connections
VI - Antenna Connections We recommend you use a 75Ω antenna cable so as to eliminate the disturbance caused by impedance mismatching. The antenna cable shall not be bundled together with the power cord. Directly insert the 75Ω antenna cable plug into the antenna socket when applying cable television. -
Page 18: Watching Television Programs
VII - Watching Television Programs MAKE SURE ALLTHE EQUIPMENTS AND POWER CORD ARE CONNECTED PROPERLYAND THE UNIT IS SET IN CORRECT MODE BEFORE KINDS OF OPERATIONS. BASIC OPERATIONS - Press POWER button on the unit or remote control to power ON the unit (indicator will glow green); press it again to power OFF (standby mode) the unit (indicator will glow red). -
Page 19: First Time Installation
VIII - First Time Installation ● The unit contains different setting menus. Once the initial programming is entered, it will be remained in the memory until change, and the unit can always be operated under the same conditions. ● The settings will be remained in the memory until the settings are changed, even after setting the player to standby mode. - Page 20 QUICK SELECT When viewing an available channel, press CH.LIST button on remote control to enter Channel List menu page. - Press UP or DOWN navigation button to select preferred channel. - Press LEFT/RIGHT navigation button to select a channel group. - Press OK button to confirm selection.
- Page 21 MEDIA PLAYBACK - Press SOURCE button on the unit or remote control to switch the unit to USB mode. - Insert a USB memory device into USB slot before following operations. - Press UP/DOWN/LEFT/RIGHT navigation button to move the cursor. - Press EXIT button to return to previous page.
- Page 22 3. Movie - Press LEFT/RIGHT navigation button to select "Movie" in the main menu and press OK button to enter it. - Use navigation buttons to select a file and press OK button to add to play list. - Press button to start playback.
-
Page 23: A - Channel
Channel 1. Press the "MENU" button on the remote control to enter the OSD menu,then press "OK" button to select the "Channel" menu. 2. Press the " " button to enter the "Channel"menu setting ,use " " to move the menu bar,and then press "... - Page 24 DTV Manual Tuning - Press OK or RIGHT navigation button to enter it. - Use navigation buttons to adjust the select the desired channel number, start the search by pressing the OK button. Programme Edit Press OK or RIGHT navigation button to enter it. Press UP/DOWN navigation button to highlight desired channel.
-
Page 25: B - Picture
Picture 1. Press the "MENU" button on the remote control to enter the OSD menu,then press " " button to select the "Picture" menu. 2. Press the "OK" button to enter the "Picture"menu setting ,use " " to move the menu bar,and then press "... -
Page 26: C - Sound
Sound 1. Press the "MENU" button on the remote control to enter the OSD menu,then press " " button to select the "Sound" menu. 2. Press the "OK" button to enter the "Sound"menu setting ,use " " to move the menu bar,and then press "... -
Page 27: D - Time
TIME 1. Press the "MENU" button on the remote control to enter the OSD menu,then press " "button to select the "Tine" menu. 2. Press the "OK" button to enter the "Tine"menu setting ,use " " to move the menu bar,and then press " "... -
Page 28: E - Setup
Setup 1. Press the "MENU" button on the remote control to enter the OSD menu,then press " " " " button to select the "Tine" menu. 2. Press the "OK" button to enter the "Tine"menu setting ,use " " to move the menu bar,and then press "... - Page 29 First Time installation With this option it is possible to call up the first installation menu. Energy Mode This item is used to select Home Mode or Store Mode (the brightness is higher than Home Mode). Software Update (USB) This item is used to update software through the USB memory device. Reset This item is used to recall factory default settings.
-
Page 30: F - Lock
Lock 1. Press the "MENU" button on the remote control to enter the OSD menu,then press " " " " button to select the "Lock" menu. 2. Press the "OK" button to enter the "Tine"menu setting ,use " " to move the menu bar,and then press "... -
Page 31: Important Notice
IX - Important Notice The display of this television is made up of a large number of colour pixels. Although it has at least 99.999% of effective pixels, some black dots or bright spots (red, green or blue) may appear constantly on the screen. This is a characteristic of the screen (according to industrial standards), and is not a defect. -
Page 32: Troubleshooting
X - Troubleshooting EN-31...
