Summary of Contents for City Theatrical Multiverse 5902

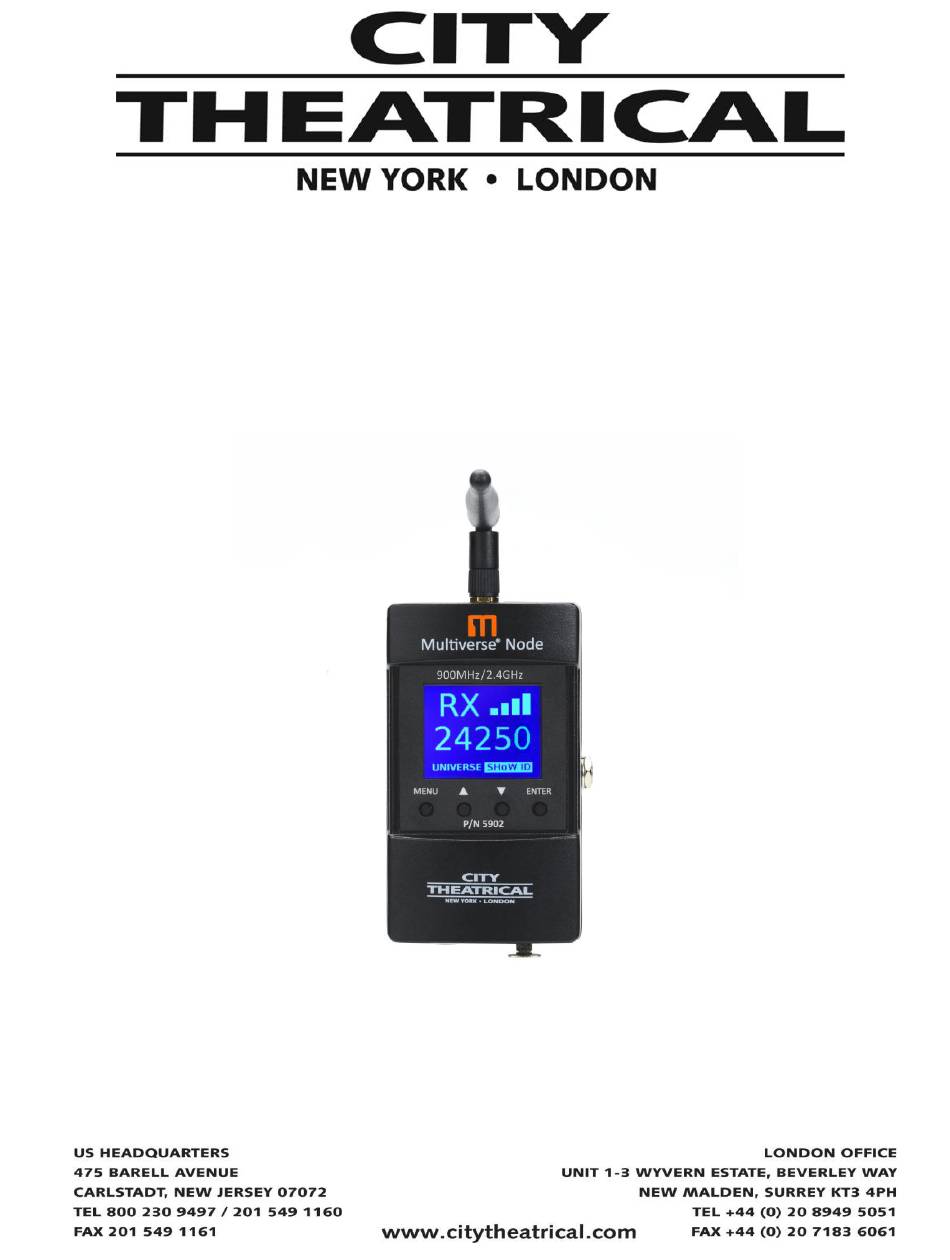

- Page 1 Node P/N 5902 User’s Manual Rev 1.4 © 2021 City Theatrical, Inc. Multiverse Transmitters are covered by U.S. Patents #7,432,803 B2, #10,129,964 B1, and other patents pending. This product is licensed for use in North America only. Made in USA...
-
Page 2: Table Of Contents
Table of Contents Compliance ............................3 Safety Notices ..........................3 Introduction ............................4 5902 Multiverse Node Features ....................4 Installation .............................5 User Interface Screen ......................5 User Interface Icons ........................7 RDM Settings .........................8 Updating Firmware ........................8 Troubleshooting ........................8 Specifications ..........................9 What’s Included ........................... 10 Face Panel ........................... 11 Mounting ............................ -
Page 3: Compliance
Compliance FCC Compliance Statement (United States) This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Introduction
Introduction City Theatrical’s 5902 Multiverse® Node 900MHz/2.4GHz is the first building block of the Multiverse system. Each Multiverse Node 900MHz/2.4GHz is a transceiver. As a single universe transmitter, it functions in a similar plug and play manner to our SHoW DMX SHoW Baby®... -
Page 5: Installation
• Protocols supported: ANSI E1.11 DMX512-A; E1.20 RDM • Built-in Multiverse 2.4GHz (for worldwide use) and 900MHz (for use in the Americas only) Frequency Hopping Spread Spectrum radios • Compatible with all Multiverse and SHoW DMX Neo products • User can select a single universe to receive •... -
Page 6: Table 1: Selecting Your Multiverse Show Id
SHoW DMX SHoW IDs may be used with the 2.4GHz radio only for single universe systems. See Table 6 on page 13 for a list of SHoW DMX Neo SHoW IDs. In a multi-universe system utilizing a Multiverse Transmitter or Multiverse Gateway as a transmitter, once you have selected the universes that you want to broadcast from the incoming Ethernet data, assigned SHoW IDs to your two radios, and have assigned universes to those SHoW IDs, you will need to set each Multiverse Node to match the same universe number and... -
Page 7: User Interface Icons
User Interface Icons At the top of the main screen are several icons that indicate Multiverse Node 900MHz/2.4GHz status. These include: • “TX” or “RX” Each unit will display either “TX” (transmitter) or “RX” (receiver) depending on which mode the unit has detected. The Node is automatically set as a transmitter when there is a connector plugged into the DMX In (male) port. -
Page 8: Rdm Settings
Signal Quality, and quantity of active Tx slots. You can also give each device a unique RDM Device Label to help with identification for configuration and troubleshooting. Updating Firmware Firmware updates and instructions for performing them are available on the product pages of the City Theatrical website. Table 3: Troubleshooting Guide Symptom Solution(s) Check that power cable is properly installed. -
Page 9: Specifications
Specifications Table 4: Physical Characteristics Product Information Product Name Multiverse Node (900MHz/2.4GHz) Part Number 5902 Maximum Concurrent Universes 1 2400 – 2480 MHz Frequency Range: 902 – 928 MHz Physical Specifications Length 102.8mm (4.05 in) Width 60mm (2.36 in) Height 36.47mm (1.44 in) Weight 0.4 Kg (0.4 lb) -
Page 10: What's Included
What’s Included ½” hole for standard C-clamp Strain Relief Point (for zip tie) Figure 1: What's Included Table 5: Included Item Descriptions and Part Numbers Label in Part Item Description Figure Number Multiverse Node 900MHz/2.4GHz 5902 Mounting Plate with hardware 5975 12VDC Power Supply with locking 5972... -
Page 11: Face Panel
Face Panel Receiver Mode: Transmitter Mode: Antenna (folded forward) USB Port Signal Quality Mode (bars) Current SHoW ID or Universe *Locking DC Jack, 5.5mm x 2.1mm Clickable Buttons: barrel, center Menu, Up Arrow, positive,12.1mm Down Arrow, Enter mating depth* Part Number DMX out DMX in DMX out... -
Page 12: Mounting
Mounting Figure 3: Pipe Mount Page 12 of 14... -
Page 13: Table 6: Show Dmx Neo Show Ids
Table 6: SHoW DMX Neo SHoW IDs for Use with the 2.4GHz Radio in Single Universe Systems Hopping SHoW ID Mode Bandwidth Pattern Full Full Full Full Full Full Full Full Full Full Full Full Full Full Full Full SHoW ID Mode Hopping Pattern Bandwidth... - Page 14 SHoW ID Mode Hopping Pattern Bandwidth Limited Mid, Wi-Fi 5-9 Limited Mid, Wi-Fi 5-9 Limited Mid, Wi-Fi 5-9 Limited Mid, Wi-Fi 5-9 Limited Mid, Wi-Fi 5-9 Limited Mid, Wi-Fi 5-9 Limited Mid, Wi-Fi 5-9 Limited Mid, Wi-Fi 5-9 Limited Mid, Wi-Fi 5-9 Limited Mid, Wi-Fi 5-9 Limited Mid, Wi-Fi 5-9 Limited Mid, Wi-Fi 5-9...
