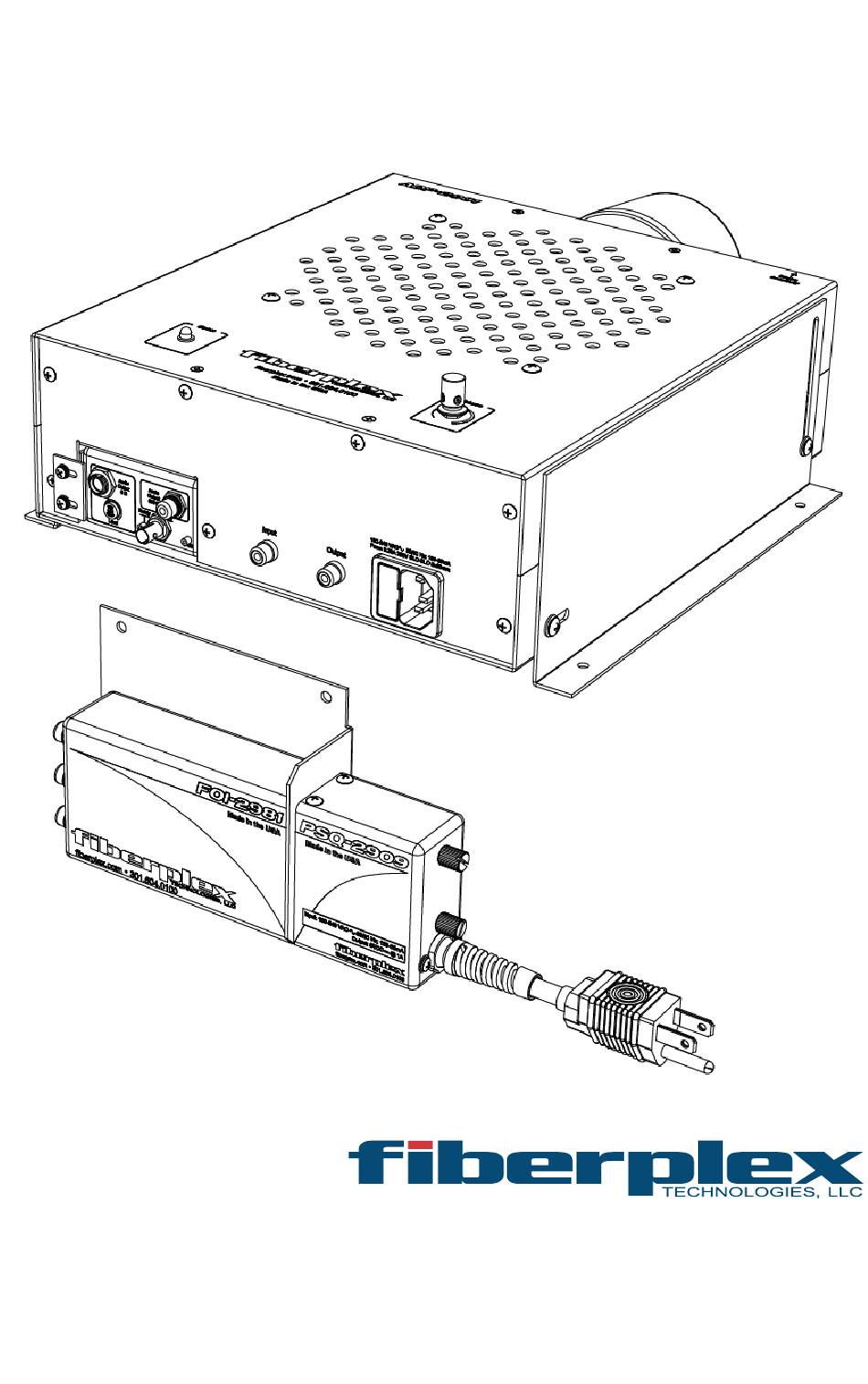

- Page 1 USER MANUAL Fire Alarm Kit FAK‐2981/FAK‐2982 ...
-
Page 2: General Installation Instructions
Please consider these general instructions in addition to any product‐specific instructions in the “Installation” chapter of this manual. Unpacking Check the equipment for any transport damage. If the unit is mechanically damaged, if liquids have been spilled or if objects have fallen into the unit, it must not be connected to the AC power outlet, or it must be immediately disconnected by unplugging the power cable. Repair must only be performed by trained personnel in accordance with the applicable regulations. Installation Site Install the unit in a place where the following conditions are met: The temperature and the relative humidity of the operating environment must be within the specified limits during operation of the unit. Values specified are applicable to the air inlets of the unit. Condensation may not be present during operation. If the unit is installed in a location subject to large variations of ambient temperature (e.g. in an OB‐van), appropriate precautions must be taken. Unobstructed air flow is essential for proper operation. Ventilation openings of the unit are a functional part of the design and must not be obstructed in any way during operation (e.g. ‐ by objects placed upon them, placement of the unit on a soft surface, or improper installation of the unit within a rack or piece of furniture). The unit must not be unduly exposed to external heat sources (direct sunlight, spot lights). Ambient Temperature Units and systems by FiberPlex are generally designed for an ambient temperature range (i.e. temperature of the incoming air) of +5...+40 °C. When rack mounting the units, the following facts must be considered: The permissible ambient temperature range for operation of the semiconductor components is 0 °C to +70 °C (commercial temperature range for operation). The air flow through the installation must allow exhaust air to remain cooler than 70 °C at all times. Average temperature increase of the cooling air shall be about 20 C°, allowing for an additional maximum 10 C° increase at the hottest components. If the cooling function of the installation must be monitored (e.g. for fan failure or illumination with spot lamps), the exhaust air temperature must be measured directly above the modules at several places within the enclosure. Warranty, Service and Terms and Conditions of Sale For information about Warranty or Service information, please see our published ‘Terms and Conditions of Sale’. This document is available on fiberplex.com or can be obtained by requesting it from clients@fiberplex.com or calling 301.604.0100. ... - Page 3 Disposal Disposal of Packing Materials The packing materials have been selected with environmental and disposal issues in mind. All packing material can be recycled. Recycling packing saves raw materials and reduces the volume of waste. If you need to dispose of the transport packing materials, recycling is encouraged. Disposal of Used Equipment Used equipment contains valuable raw materials as well as substances that must be disposed of professionally. Please dispose of used equipment via an authorized specialist dealer or via the public waste disposal system, ensuring any material that can be recycled has been. Please take care that your used equipment cannot be abused. After having disconnected your used equipment from the mains supply, make sure that the mains connector and the mains cable are made useless. Disclaimer The information in this document has been carefully checked and is believed to be accurate at the time of publication. However, no liability is assumed by FiberPlex for inaccuracies, errors, or omissions, nor for loss or damage resulting either directly or indirectly from use of the information contained herein. Introduction The FAK‐2981 and FAK‐2982 are a complete bundled package for Fire Alarm annunciation applications with (FAK‐2981) or without (FAK‐2982) a warning strobe. The package includes: 1x FOI‐2981: Optical Transmitter 1x FOI‐4982: Optical Receiver 1x ADP‐2981 OR ADP‐2982: Amplified Speaker with or without Strobe 1x PSQ‐2909: Power supply for FOI‐2981 1x WMA‐3002: Wall Mount Adapter for FOI‐2981 1x FC‐VM2TT1‐0‐8: Fiber Cable, Multimode, Simplex, ST‐ST, 8m length The unit utilizes FiberPlex FOI series modules to extend Public Address and Mass Notification systems via fiber. External audio signals such as voice announcements, music, a doorbell buzz, etc. are first connected to the FOI‐2981. This FOI unit then transmits the signal via a fiber optic link to a FOI‐4982, conveniently housed and powered by an ADP unit. From there the FOI‐4982 drives up to 10 ADP units in a daisy chain. Each ADP unit is equipped with an AC line‐powered supply to drive the amplifier and supply DC power to an attached FOI module. The ADP‐2981 also contains a strobe annunciator, useful for areas with high background noise or those with hearing difficulties. A knob on top of the unit controls the volume threshold that the ...
-
Page 4: Getting Started
Getting Started Initial Inspection Immediately upon receipt, inspect the shipping container for damage. The container should be retained until the shipment has been checked for completeness and the equipment has been checked mechanically and electrically. If the shipment is incomplete, if there is mechanical damage, or if the unit fails to operate notify FiberPlex and make the shipping materials available for the carrier's inspection. Typical Application Figure 1 The FAK‐2981 as it is typically used, shown with a FiberPlex Waveguide (not included) Mounting the ADP Unit Mount the empty ADP unit using fasteners appropriate to your wall or shelf construction standard. All four (4) mounting points MUST be utilized. Ensure that there exists adequate clearance for the power cable and optical fiber run. The unit should be located in an environment where an ambient temperature between 0° and 50° C may be maintained. The ADP may be mounted in any orientation, provided the speaker achieves acceptable sound propagation and the strobe is visible. The slots in the mounting brackets may be utilized to adjust the speaker angle downward. To adjust the angle, loosen the 4 screws that attach the brackets to the ADP unit, position to the designed angle and tighten screws. ... - Page 5 SLOTS FOR ANGLED MOUNTING Figure 2 Mounting the ADP Unit Figure 3 Fuse Installation on an ADP ...
-
Page 6: Fuse Replacement
Getting Started Power Requirements and Mounting The ADP module will accept voltages from 100‐240 VAC, 50/60 Hz. Maximum power consumption is 19W. The ADP module conveniently supplies power to any installed FOI unit via a backplane connector. Although the FOI communications modules are designed to be hot swappable, it is optimal practice to insert a module into the ADP prior to the application of AC power. The FOI‐2981 accepts power from the included PSQ‐2909 for full range AC operation. To assemble the PSQ‐2909 to the FOI‐2981, along with the optional WMA‐3002 mounting bracket, mate the two modules as shown below and tighten the two thumbscrews on the PSQ. Figure 4 FOI‐2981 with WMA‐3002 and PSQ‐2909 Fuse Replacement To access the fuse, disconnect the power cord, then slide open the compartment on the power inlet and replace the fuse. The power supply is protected by a single 0.25A time‐delay fuse (Littlefuse model 218.250 Slo‐Blo). A spare fuse is stored on the outer position of the fuse holder. Replacement fuses must have the required current rating and must be of the specified type. Use of repaired fuses and/or bypass of the fuse holders are prohibited and will void the warranty. ... - Page 7 Installing FOI Modules The current generation of ADP module is designed to accept size 4 FOI modules such as the FiberPlex FOI‐4982, but it is backwards compatible with the older FOI‐2982. To use one of these older modules, contact FiberPlex and request a compatibility spacer. This spacer is a foam pad with an adhesive backing that can be affixed to either the inside of the ADP, or directly to the FOI module itself. This will ensure that the FOI‐2982 slides easily into place and fits properly. Please note that older generation of ADP modules are NOT compatible with the newer FOI‐4982. Banana Plug Installed to FOI Figure 5 Insertion of standard Size 4 FOI Module FOI-2982 Compatibility Spacer Figure 6 Insertion of legacy Size 2 FOI Module ...
- Page 8 Features ADP‐2981/2982 Indicators/Connections Figure 7 ADP‐2981 bottom face (left) and top face (right) Module Retention Plate – After FOI module is installed, slide plate over and tighten screws to secure the 1 FOI Module in place. FOI Module Slot – Slide FOI Module into this slot and press firmly until power connector fully engages. 2 The face of the module should be flush with the bottom plate of the ADP. RCA Input Jack– Line level audio input jack which receives signal from installed FOI Module or another 3 ADP module in a daisy chain. RCA Output Jack – Line level audio output jack which passes audio signal to the next ADP in a daisy 4 chain. 3‐pin IEC AC Power Inlet – Accepts AC mains power to the unit 5 Strobe Sensitivity Adjustment Knob (ADP‐2981 only) – Adjusts the volume threshold of the input signal 6 at which the strobe annunciator activates to prevent background noise or interference from activating the strobe light. Strobe Light (ADP‐2981 only) – Flashes when input audio exceeds the set threshold. 7 ...
- Page 9 Figure 8 ADP‐2981 front face 8‐inch Loudspeaker – Produces sound up to a 109dB maximum sound pressure level. 8 Status Indicator LED – Illuminates when the unit is powered on and an FOI module is inserted. 9 Volume Adjustment Knob – Controls the output of the loudspeaker. 10 FOI‐2981 and FOI‐4982 Indicators/Connections Figure 9 FOI‐2981 (left) and FOI‐4982 (right) Front Face ...
- Page 10 1 2 Audio Input “A” & Audio Input “B” Jacks – These connectors accept audio input signals. When an audio signal is detected on the “A” input, it will be given precedence over any signal on the “B” input, which will be interrupted until the “A” input signal ends. Doorbell Operation Input Jack – A doorbell buzzer is generated when this RCA jack is grounded. 3 Optical Transmit Port – This ST connector is used to send the audio signal over a multimode fiber optic 4 cable. Level Adjustment Switch “A” & Level Adjustment Switch “B” – These rotary switches adjust the 5 audio signal level for audio inputs “A” and “B”. Overload Indicator LED “A” & Overload Indicator LED “B” – These LEDs will illuminate whenever 7 the audio input signal level is too high. The Level Adjustment Switches must be turned counterclockwise until these LEDs are both off. Otherwise, audio clipping may occur. Power Indicator LED – LED which indicates the presence of DC power in the unit. If this LED is off, check 9 that the power supply is operating properly. If using a PSQ series power supply unit, separate the PSQ from the FOI unit for 30 seconds, then reconnect them to reset the internal fuse within the FOI unit. Audio Output Jack 8 Ω – This RCA jack transmits the audio signal to any connected 8 Ω speaker. 10 Output Level Adjustment Switch – This rotary switch adjusts the audio signal level. 11 Audio Output Jack 600 Ω – This RCA jack transmits the audio signal to a connected ADP‐2981 or ADP‐ 12 2982. Optical Receive Port – This ST connector receives the audio signal from the connected FOI‐2981 or FOI‐ 13 2983. Ready Indicator LED – LED which illuminates when an optical signal of sufficient signal strength is ...
-
Page 11: Typical Applications
Typical Applications Standard Mass Notification – Audio Daisy Chain A typical link consists of either a FOI‐2981 for line level audio or a FOI‐2983 for 70V audio connected by a single fiber cable to a FOI‐4982 installed into an ADP. The audio out of the FOI‐ 4982 is connected to the ADP via an RCA cable. Additional ADP can be daisy chained using copper RCA audio cables. Up to a maximum of 10 ADP can be daisy chained for audio distribution. Secure Room 1 Optional ADP-2981 with ADP-2981 with FOI-4982 Installed no FOI Installed FOI-2981 Input A: Announce Input B: Music Input C: Doorbell Simplex Fiber To Next ADP FOI-4982 Audio Out to ADP-2981 Audio Out to ADP-2981 Audio In ADP-2981 Audio In Waveguide... -
Page 12: Specifications
Specifications 11.50 [292.1] .45 MIN [11.4] 10.75 [273.1] 14.19 [360.4] 11.13 [282.6] 8.00 [203.2] 4.64 MIN [117.8] 3.97 [100.8] Figure 11 ADP‐2981/2982 Dimensions ... - Page 13 Figure 12 FOI‐2981 Dimensions Figure 13 WMA‐3002 Dimensions ...
- Page 14 Figure 14 FOI‐4982 Dimensions Figure 15 PSQ‐2909 Dimensions ...
- Page 15 ELECTRICAL SPECIFICATIONS Min Typ Max Unit Voltage Range 90 110 250 VAC Power Requirements Operating Frequency 50 ‐ 60 Hz Supply Current 13 25 55 mA Input Level (with max 1% 5 30 55 mVrms THD) Audio Inputs Load Impedance ‐ 600 ‐ Ω ADP‐ 2981/2982 Frequency Response (±3 200 ‐ 8k ...
- Page 16 18040-412 Guilford Rd. • Annapolis Junction, MD 20701 fiberplex.com • clients@fiberplex.com • 301.604.0100 UMFFAK 1711 ...
