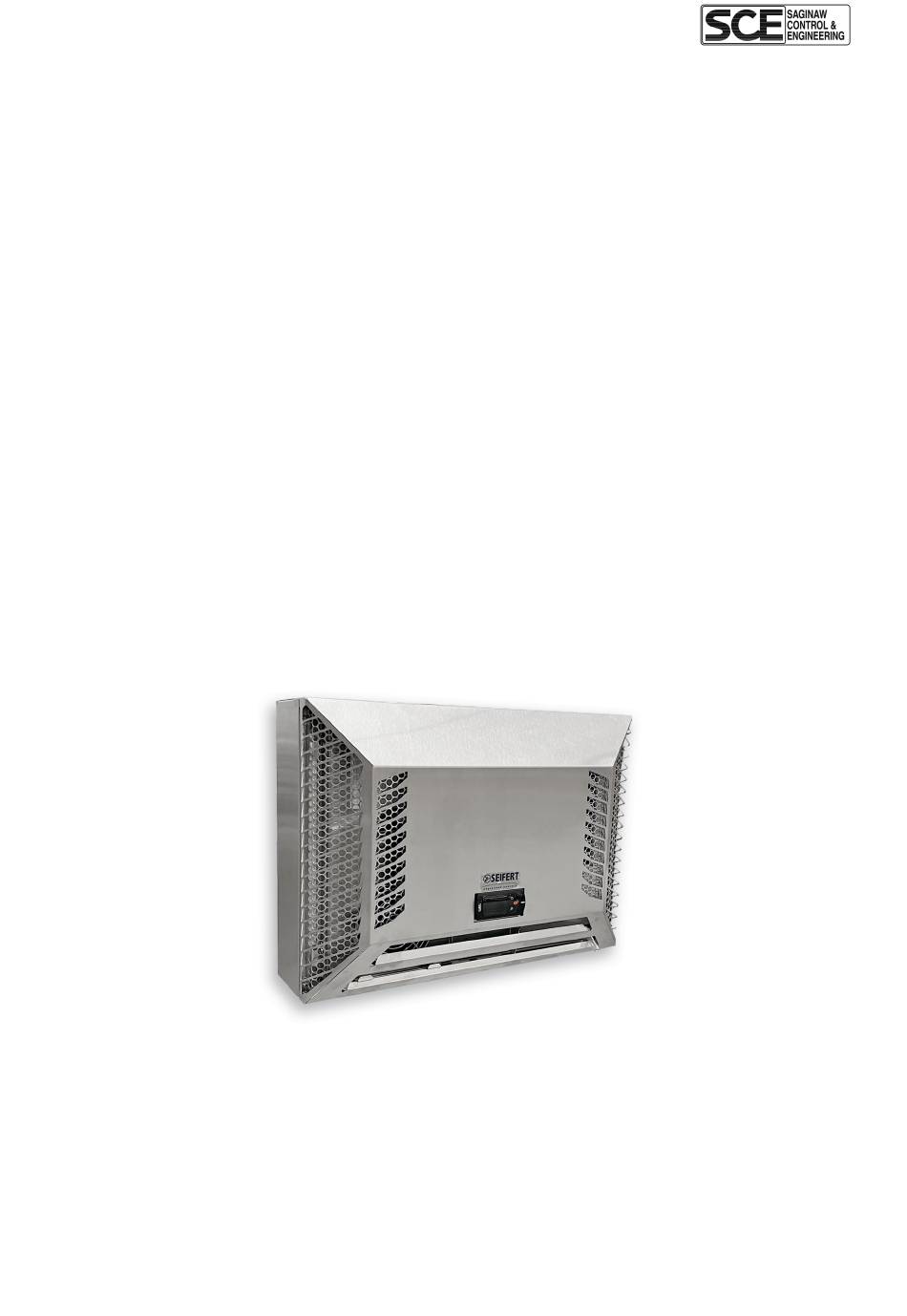

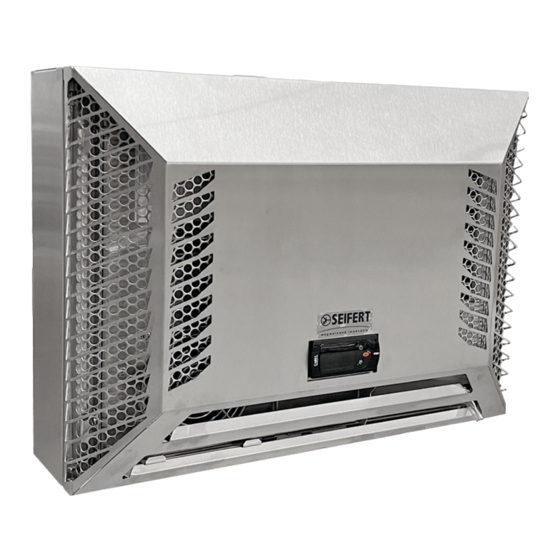

Table of Content 850510S62
..................................................................................................................................
.........................................................................................................................................
..............................................................................................................................
.......................................................................................................................................
..................................................................................................................................
Version No. 1-7 - 06.06.2023
.........................................................................................................................
......................................................................................................................
.....................................................................................................................
......................................................................................................................
.....................................................................................................................
...................................................................................................................
...............................................................................................................
........................................................................................................................
.............................................................................................................
.....................................................................................................................
.........................................................................................................
................................................................................................................
Doc. No. 99850510S62
..........................................................................
2
3
4
5
6
7
8
9
14
16
17
18
19
19
20
20
22
23
1 / 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 850510S62 and is the answer not in the manual?

Questions and answers

Related Manuals for Seifert 850510S62

Summary of Contents for Seifert 850510S62

  • Page 1: Table Of Contents

    Table of Content 850510S62 1. User manual ..........................2. Legal regulations ......................... 3. Safety instructions ........................4. Settings ............................5. Functional principle ........................6. Technical data ..........................7. Performance graph ........................8. Mounting ............................9. Mounting Principle ........................10. Cut Out Dimension ........................

  • Page 2: User Manual

    1. User manual This instruction manual contains information and instructions to enable the user to work safely, correctly and economically on the unit. Understanding and adhering to the manual can help one: Avoid any dangers. Reduce repair costs and stoppages. Extend and improve the reliability and working life of the unit.

  • Page 3: Legal Regulations

    2. Legal regulations Liability The information, data and instructions contained in this instruction manual are current at the time of going to press. We reserve the right to make technical changes to the unit in the course of its development. Therefore, no claims can be accepted for previously delivered units based on the information, diagrams or descriptions contained in this manual.

  • Page 4: Safety Instructions

    3. Safety instructions Upon delivery the unit is already meeting current technical standards and can therefore be safely taken into operation. Only authorised personnel is allowed to work on the unit. Unauthorised personnel must be prohibited from working on the unit. Operating personnel must inform their superiors immediately of any malfunction of the unit.

  • Page 5: Settings

    4. Settings The cooling unit is intended to be used as a complementary accessory to larger industrial equipment. The unit is used where heat needs to be dissipated from electrical control cabinets or similar enclosures in order to protect heat sensitive components. It is not intended for household use. The unit has two completely separate air circuits which ensure that the clean cabinet air does not come into contact with the ambient air which may well be dirty or polluted.

  • Page 6: Functional Principle

    5. Functional principle The cooling unit for enclosures works on the basis of a refrigeration circuit consisting of four main components: compressor, evaporator, condenser and expansion device. The circuit is hermetically sealed and R134a refrigerant circulates inside it (R134a is chlorine free and has an Ozone Destruction Potential [ODP] of 0 and a Global Warming Potential [GWP] of 1430).

  • Page 7: Technical Data

    6. Technical data Order Number 850510S62 Cooling capacity L35L35 650 W Cooling capacity L35L50 395 W EER L35L35 1.41 Compressor type Rotary piston Refrigerant / GWP R134a / 1430 Refrigerant charge 103 g / 3.63 oz 25 / 6 bar...

  • Page 8: Performance Graph

    7. Performance graph Version No. 1-7 - 06.06.2023 Doc. No. 99850510S62 8 / 24...

  • Page 9: Mounting

    8. Mounting Unpacking unit: Please follow the below steps to unpack the unit. STEP 1: Stand the cooling unit upright with the pre-cut packaging opening facing up. STEP 2: Pull off the packaging opening. STEP 3: Hang the transport loop of the unit in the transport hook and lift it slightly. STEP 4: Pull off...
  • Page 10 Mounting: The power supply rating on unit rating plate must comply with mains rating. Always disconnect the power supply before opening the unit. The heat load to be dissipated from enclosure should not exceed specific cooling output of the unit at any condition.
  • Page 11 Cold air outlet duct: When using a cold air outlet duct please follow the steps below. Filter installation: If you install / replace a filter please follow the steps below. Loosen (do not completely unscrew) the 4 screws on the lower part of the front cover. Remove the bottom cover.
  • Page 12 Applying supplied tight tape For KG 8562 only: Version No. 1-7 - 06.06.2023 Doc. No. 99850510S62 12 / 24...
  • Page 13 Condensate management: High humidity and low temperatures inside the enclosure can lead to condensation on the evaporator. Condensate that flows back into the enclosure can damage sensitive control electronics. The integrated condensate evaporation of the cooling unit releases the condensate to the environment. If too much condensation forms, the condensation is drained out of the cooling unit from the front through the lower gill grilles.

  • Page 14: Mounting Principle

    9. Mounting Principle NOTES: • Do not use within the first 15 minutes after installation! • Use only the supplied mounting hardware. • Tighten Screws to 4.5 Nm. • Ensure the mounting surface does not warp after assembly and reinforce it if necessary. M6 screws M6 toothed washers M6 flat washers...
  • Page 15 Version No. 1-7 - 06.06.2023 Doc. No. 99850510S62 15 / 24...

  • Page 16: Cut Out Dimension

    10. Cut Out Dimension Version No. 1-7 - 06.06.2023 Doc. No. 99850510S62 16 / 24...

  • Page 17: Electrical Connection

    Fluorescent lamps with electronic controllers or without phase shifting capacitors can be used, depending on the operating limits specified for each type of relay. SCCR Refer to UL508A Supplement SB and Seifert Systems’ document Short Circuit Current Rating (SCCR) on methods how to modify the available short circuit current within a circuit in the panel.

  • Page 18: Controller

    12. Controller The unit is equipped with a temperature controller which regulates the function of the air-conditioning cycle. At normal working conditions the display shows the temperature inside the enclosure. The cooling set point for the interior of the enclosure (parameter St / St1) is pre-set at 35°C and can be adjusted between 10°C and 60°C.

  • Page 19: Wiring Diagram

    13. Wiring Diagram Power connector Signal connector Alarm (NC) Alarm (NC) Door contact Door contact 14. Taking into Operation Attention! The unit can be damaged by lack of lubricant. To ensure that the compressor is adequately lubricated the oil, which has been displaced during transport, must be allowed to flow back into it. The unit must therefore be allowed to stand for at least 30 min.

  • Page 20: Trouble Shooting

    15. Trouble Shooting Failure Condition Cause Solution Internal fan does not work Power not connected. Verify power supply Enclosure temperature is below Verify values of parameter setting temperature (St1) "St1" Internal fan works, external fan and compressor don't work Door switch contact is open Verify door switch Controller doesn't work Replace controller...
  • Page 21 Oel & cleaning drain pipe connection The oel & cleaning drain is in the base of the unit. To install an oel & cleaning pipe, please follow below steps: Remove the plastic stopper from in the base of the unit (factory setting is locked) Dispose the plastic stopper but keep the Slilicon washer Insert the drain socket Lock it clockwise and fix the oel &...

  • Page 22: Transport & Storage

    17. Transport & Storage Malfunction due to transport damage On delivery the carton box containing the unit must be examined for signs of transport damage. Any transport damage to the carton box could indicate that the unit itself has been damaged in transit which in the worst case could mean that the unit will not function.

  • Page 23: Parts Supplied / Spare Parts / Accessories

    18. Parts supplied / Spare parts / Accessories Description Image Instruction manual CE Declaration Mounting gasket M6 * 16 bolts A6.4 toothed washers A6.4 washers 5 - pole terminal block for signals 4 - pole terminal block for electrical connection 1 Drain fitting Foam tape Version No.
  • Page 24 Spare parts: Description Order no. 1 Spare Part Kit - Compressor SP-850500001-A 2 Spare Part Kit - Ambient fan SP-850500001-B 3 Spare Part Kit - Internal fan SP-850500001-C 4 Spare Part Kit - Controller SP-850500001-D 5 Spare Part Kit - Installation parts SP-850500001-P Please always state the serial number of the cooling unit when ordering any spare parts.
