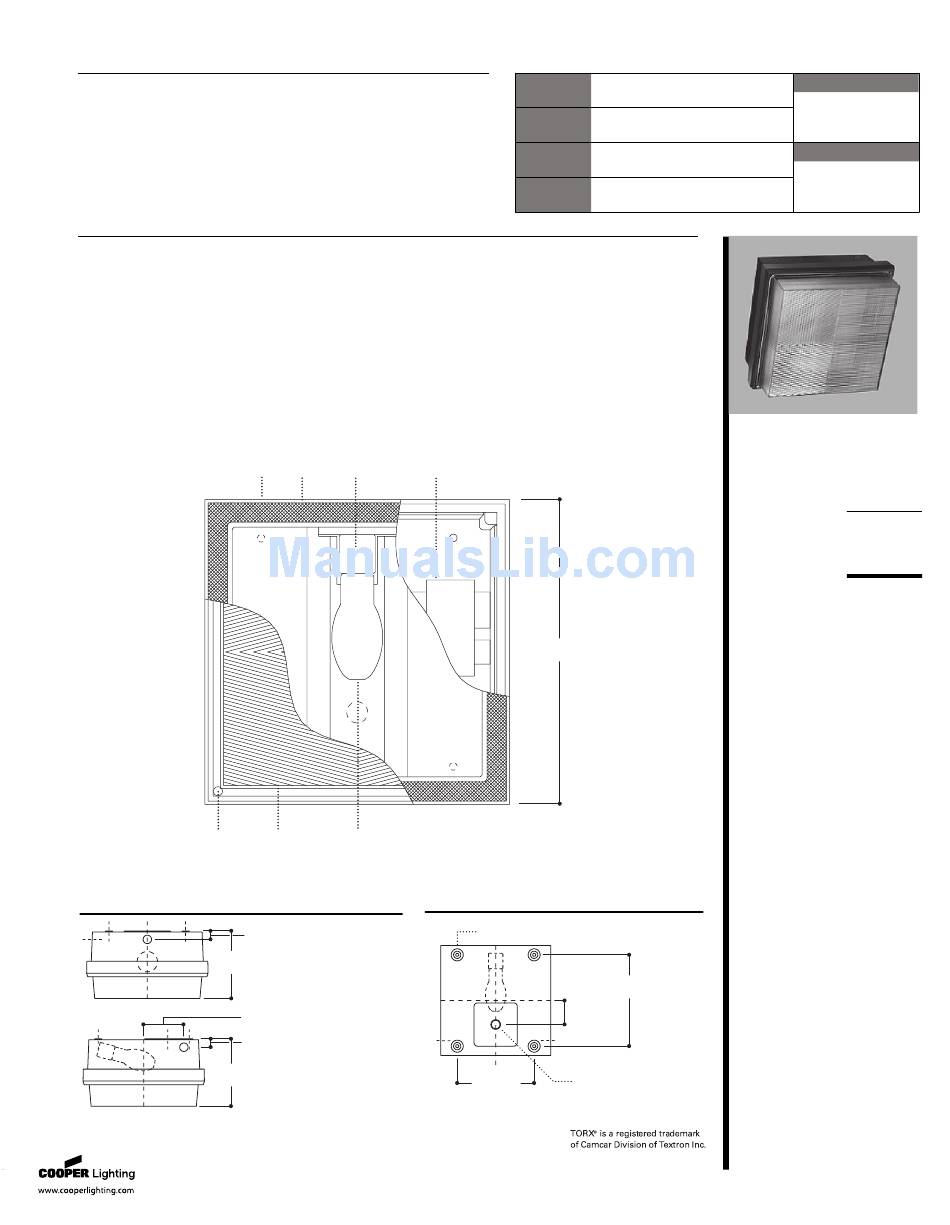

Cooper Lighting FAIL-SAFE HCS Specification Sheet

DESCRIPTION
Optical performance and long lamp life combine with a low architectural
profile to form Fail Safe's HCS Series. Its cast aluminum housing and
shallow, high impact, injection molded prismatic polycarbonate refractor
with seven lamp choices.
The HCS Series is specifically designed for use in public access areas where
vandalism may occur. Ideal for tunnels, loading docks, park shelters and
other unsupervised outdoor areas where safety and security remain critical.
SPECIFICATION FEATURES
A ... Lens
Nominal .156 UV stabilized,
injection molded, impact resistant,
clear prismatic polycarbonate
refractor for high efficiency, low
surface brightness and maximum
strength.
B ... Fasteners
Captive, stainless steel
tamper-resistant TORX®-head
screws prevent unauthorized
access.
C
B
SIDE DIMENSIONS
7/8"
[22mm]
8 1/2"
[216mm]
4 3/16"
[106mm]
7/8"
[22mm]
8 1/2"
[216mm]
Specifications and Dimensions subject to change without notice.
C ... Housing
Heavy duty, corrosion resistant
cast aluminum housing withstands
impact and environmental abuse.
Standard bronze polyester powder
coat finish.
D ... Socket
(For use with H.I.D. lamps)
Porcelain socket, copper
screwshell, silicone braid, 150°C.
F E G
A D
MOUNTING DIMENSIONS
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
E ... Gasket
Non-shrinking, double baked
neoprene gasketing seals out the
environment.
F ... Ballast
HPF core and coil.
Labels
U.L. listed, C.S.A. certified,
standard wet label.
12 3/4" SQ.
[324mm]
(4) 5/16" Dia. [8mm]
Mounting Holes
9 1/2"
[241mm]
2 1/2"
[64mm]
(4) 1/2" [13mm] Trade Size
8"
Threaded Conduit Fitting
[203mm]
FAIL-SAFE
®
Type
Date
HCS
35W - 150W
High Pressure Sodium
100W
Metal Halide
Mercury Vapor
POLYCARBONATE
HIGH ABUSE LUMINAIRE
Clear Prismatic
Cast Aluminum
Surface Luminaire
E N E R G Y D A TA
For Energy Management related
technical data to support the
performance of this fixture series,
refer to the ordering information for
input wattage.
