Bushnell GOLF ION Elite - GPS Rangefinder Watch Manual

CONTROLS, HOME, & PLAY GOLF SCREENS

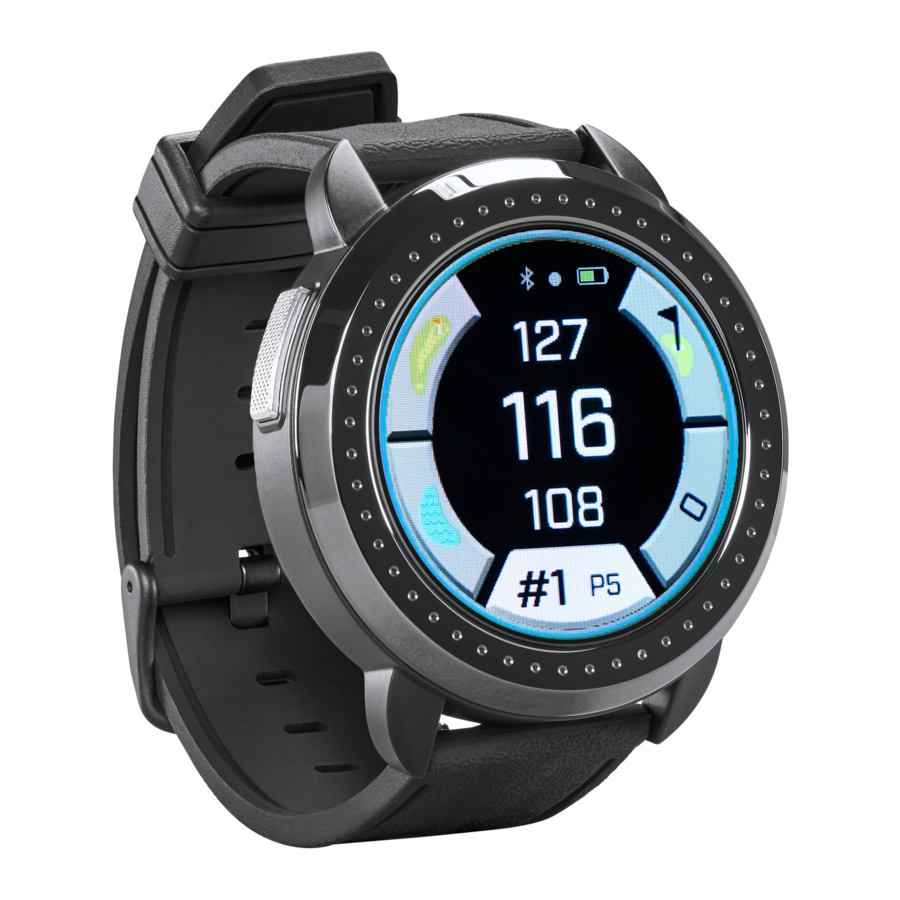

Play Golf Front/Center/Back Screen

1. POWER/MENU BUTTON - Press and hold to turn device on/off. Swipe right or left to cycle through Time Screen, Play Golf Screen, Bluetooth Connection, & Scorecard List.

PLAY GOLF SCREEN DETAILS

2. CENTER DISTANCE - Distance to center of the green (or pin if you moved it).
3. BACK DISTANCE - Distance to back of the green or pin, if selected.
4. FRONT DISTANCE - Distance to front of the green.
5. HOLE/PAR/QUICK HOLE CHANGE - Current hole number and par. Tap for Quick Hole Change.
6. SCORE - User's current score relative to par. Tap to go to score entry.
7. HOLEVIEW - Tap to access Holeview and Shot Planning.
8. GREENVIEW - Tap to access Greenview to change pin placement.
9. SLOPE INDICATOR - (Blue Outer Ring) Illustrates distance mode and calibration status for Slope feature. (see Play Golf Front/Center/Back Screen
10. HAZARDS - Tap to access Hazard distances
11. Charging Pins

QUICK START OPERATION

1. Charge the ION Elite's internal battery, by connecting the charger to the back of the device and plug the USB Side into computer or wall.
2. Press and hold the Power button (1) to turn on the device. Time Screen will be displayed.
3. To Play Golf, swipe left to the Play Golf screen and tap the Screen on the Play Golf icon. The Ion Elite will connect to the satellites faster while being outside with a clear view of the sky.
4. Choose your course, swiping up/down and tapping on your selected course. The Play Golf (Front/Center/Back) screen is displayed.
5. The ION Elite has an Auto Hole advance feature, however, to change holes manually, Swipe Up/Down on touchscreen. To change holes, tap on the hole number to access the Quick Hole Change screen.
6. To cycle through mode/menu screens for Play Golf Mode (Front/Center/Back > Shot Distance, Score Card, Setting > Time/Home > Front/Center/Back), swipe Left/Right.

Time/Home Screen

Play Golf Screen

Alternate Time/Home Screens:
Press and hold the Home Screen for three seconds. Swipe up or down to change the watch face.

TIME/HOME SCREEN

Cycle through Home Screen Options, Time > Play Golf, swipe Left/Right.

CHARGING THE BATTERY

The rechargeable battery of the Ion Elite is long lasting and provides up to 12+ hrs (3+ rounds of golf typically) on a charge. However, battery life may be reduced due to a variety of factors (external temperature, etc.). All rechargeable batteries lose their effective charge length over time.

To recharge the battery, plug the (standard) USB plug to your computer or other charging port. Set the Ion Elite on top of the magnetic charging pins. If the battery is charging successfully, you will see the sections of circle around the battery symbol blink. The Ion Elite is compatible with all USB ports, including iPhone/other smartphone USB chargers. The unit is fully charged (about 3.5 hrs from totally discharged state, less if partial charge remains) and ready to use when a full green circle is displayed around the battery icon.

QUICK SETTINGS & NOTIFICATIONS MENU

1. From the Time/Home Screen, swipe up to access Quick Settings.
2. From the Time/Home Screen, swipe down to access the Notifications.

*The notifications screen allows the user to be aware there is a call Alert Sound On/Off coming in or a message is received. The Ion Elite cannot send or receive communication.

Notifications Screen

THE SETTINGS MENU

1. From the Play Golf Home Screen, press the Gears on the bottom left to access the Settings Menu.
2. Select item from menu by swiping Up and Down on the list.
3. Press Power/Menu button to return to previous menu screen.

SYSTEM SETTINGS MENU ITEMS

SYSTEM SETTINGS:

1. DISPLAY SETTING:

   1. Brightness: adjust screen brightness from 1 - 5
   2. Back light timeout: adjust back light timeout from 5 seconds - 60 seconds
2. NOTIFICATIONS:
   1. Pop Up: On or Off
   2. Call sound: On or Off
   3. Text Sound: On or Off
3. LANGUAGE: Choose language preference.
4. ABOUT: SKU number
5. RESET: Restore the unit to all of its original factory settings, select Yes or No.

GOLF SETTINGS:

Use Golf Settings to set, adjust and customize game play.

6. TOURNAMENT MODE: On or Off. *Disables Slope compensated distances, which meets USGA's device policy.
7. SLOPE: On or Off
8. HOLE VIEW:
   1. Shot Planning: On or Off
   2. Tee Rings: Tap on the number and scroll to set the distance for the marker and Save. Turn marker on or off.

   3. Pin Rings: Tap on the number and scroll to set the distance for the marker and Save. Turn marker on or off.


9. SCORE MODE: Choose Off, Basic or Advance
10. SCORE FORMAT: Stroke, Stableford or Modified Stableford.
11. GOLF UNITS: Yards or Meters
12. AUTO HOLE ADVANCE: On or Off

BLUETOOTH: Select On to turn on Bluetooth Mode. Press the Paring icon to connect the Ion Elite to your Bluetooth enables device. Follow the directions in "Connecting Bushnell Golf Mobile App" to see full Bluetooth connection instructions.

ALARM:

Use the Alarm to remind you about Tee Times or other important reminders. Turn an alarm on and press the time to set the Hour, Minutes and AM/PM, press Save. Select the Days to set when the alarm will sound.

TIME SETTINGS:

1. Time Format: 12 hour or 24 hour
2. Set Time: Auto or Manual. For Auto, user will need to connect to the GPS through Play Golf to acquire to satellite signal to auto set the time.
3. Set Date: Choose Month, Day, Year and press Save

PLAY GOLF MODE

• Make sure you are outdoors, with an unobstructed view of the sky. Tap PLAY GOLF to start or continue the round of golf.

  Play Golf Button

  Acquiring Signal

  Display will show the GPS Search Screen as the Ion Elite looks for multiple available GPS satellite signals and locks onto them. This can take several minutes the first time you use the Ion Elite but will be faster when used in the same general area in the future.
• You will be asked if you wish to continue a game that is active. Make your choice. If you are continuing a game, you will be sent to the Front/Center/Back (FCB) screen. If you select no, the device will connect to GPS and a list of nearest courses will appear.
• Swipe Up and Down to select the course you want to play from the list of nearby courses (closest course is at the top of list).
• The display then shows Front/Center/Back Distance Screen:

  1. Current hole #, Par and tap for Quick Hole Change
  2. Game score
  3. Distance to the center of green/pin
  4. Distance to the front of the green
  5. Distance to the back of green
  6. Hazards
  7. HoleView*
  8. GreenView*

     *Black pin indicates the pin is in the center of the green. Red pin indicated the pin has been moved.

     Quick Hole Change Screen

HOLEVIEW

The HoleView Screen allows you to view the hole layout.

Example: 120 from reticle to pin 140 from ball to reticle

Straight Line Distance

Shot Planning

SHOT PLANNING
The Shot Planning Screen allows the player to see distance to and from a reticle. Tap the distances to toggle between straight line distance and shot planning

GREENVIEW

The GreenView Screen will allow you to select the pin placement on the green to provide you with distance to the pin instead of the center of green distance. Do this by tapping anywhere on the green that best represents the location of the pin/hole. When done, hit the Power/Menu button to save pin location, or the page will timeout after one minute and return to the FCB screen.

1. Indicates the direction the player is approaching the Green.
2. If a hole has a dual green, screen page dots will appear on the screen. Swipe to go to alternate green.

DUAL GREEN

In cases when a hole has two greens, "<" and ">" will replace the hashtag/number sign next to the hole number. If the incorrect green is selected, click on GreenView and swipe to choose the correct green.

HAZARD & LAYUP POINTS

Tap to view Hazard call outs per hole, variable depending on the most significant hazards located near a specific hole on the current course. Hazard screen will time out after one minute and return to the FCB screen. If there are no Hazards, "No Hazard Data" will be on screen. See "Hazard Glossary" for a list of all abbreviations used to designate various hazards.

SCORE ENTRY

To enter your score, in Play Golf Mode, tap the Score button (Fig. 2 on the FCB Screen). Swipe Up or Down to select the number of Strokes and Putts (See below). Swipe Left to enter the Fairway Hit direction (See below). After entering information on each screen, press save. Your score will be saved and will move to the next hole and the Front/Center/Back screen. *Note: to enter Putts and Fairways Hit, the device needs to be in Advanced Score mode.

Basic Score Mode


Advanced Score Mode

SCORECARD

To go to the Scorecard, swipe Left on the FCB Screen. Tap the score icon in the bottom right of the screen. Once in the Scorecard, tap on your score, putts, fairways and GIR to populate the selected stat in the right hand column.
*You can edit each hole's score and stats while the round is active. Once the round is closed, you will not be able to edit the score for that round.


Scorecard Screen

SHOT DISTANCE

To go to the Shot Distance, swipe Left on the FCB Screen. Tap the Shot Distance icon on the top of the screen. Once in the Shot Distance, tap Reset to save the current location. Distance will be measured from the point of Reset and save the last location until Reset again.

SLOPE

• Solid Blue Slope Ring - Indicates unit is calibrated and displaying Slope compensated distances.
• Flashing Blue Ring - Still receiving compensated distances but need to update calibration for more accurate distances. *Calibrate unit by taking it to a Teebox or Green.
• Blinking Orange Ring - indicates unit is not calibrated and is displaying non Slope compensated distances. *Calibrate unit by taking it to a Teebox or Green.


TOURNAMENT MODE

• Solid White Tournament Mode Ring - Indicates unit is in Tournament Mode and meets USGA's device policy.


CONNECTING TO THE BUSHNELL GOLF MOBILE APP

Connecting your Ion Elite with the app allows you to:

• Control Ion Elite's Settings from the app.
• Wireless single course updates.
• Scorecard syncing with tons of round data for your game improvement.

To connect your Ion Elite to your phone and the Bushnell Golf Mobile app:

1. Download the Bushnell Golf Mobile app at app.bushnellgolf.com/install or scan the QR code.

   Scan the code to download & install the Bushnell Golf app.





2. If you are new to the app you will be asked to setup a device after registration, select Ion Elite. If you are a returning user to the app, select "See All" from the "My Devices Section", click "Add Device", and select Ion Elite.
3. Follow the on screen instructions in the app to pair and connect your Ion Elite.


UPDATE GOLF COURSE DATA

Your Ion Elite is pre-loaded with data for over 38,000 courses located worldwide. It is ready to use right out of the box, with no need to download software or pay any membership fees.

Automatic Course Update: To Update a single course file automatically, connect the Device to the Bushnell Golf Mobile via Bluetooth, press Play Golf to start a round. Once the course is selected, the Ion Elite will automatically update the course, if a new version is available.

Manual Course Update: To Update a single course file. Connect the Device to the Bushnell Golf Mobile via Bluetooth. Select Ion Elite from your device List. Select Course Update. Follow the instructions on the Bushnell Golf Mobile App to search for your course and update your device.

To Update multiple courses. Please visit the Bushnell Golf Update Manager at https://appsupport.bushnellgolf.com and follow the instructions.

UPDATING FIRMWARE

To update the Bushnell Ion Elite firmware, click on Device Update on the Device Function screen in the Bushnell Golf Mobile app. If there is an update available, it will automatically be downloaded and installed.

GLOSSARY

Auto Course Recognition: This is a feature that GPS rangefinders tend to have. By using GPS technology, the rangefinder can automatically identify what course you're at and provide the appropriate course detail.

Auto Hole Advance: This is a feature that GPS rangefinders have that typically goes hand in hand with the Auto Course Recognition feature. By using GPS technology, the rangefinder can automatically identify what hole you're on and it will provide the appropriate distance. When you've made the hole, it will automatically move to the next hole and repeat the process.

Distant Target Priority Mode: This mode uses a far-sighted or background targeting technology to acquire the straightline distance of your target. When ranging, it will ignore objects in the foreground and will provide the distance of the furthest target.

Dual Display Technology: Bushnell takes it to the next level by allowing the user to switch between using the LED/Red display or the LCD/Black display at the user's discretion.

Dynamic Green Mapping: Front and back distances from the golfer's line of play.

First Target Priority Mode: This is the main mode that golf rangefinders are built with. It uses a near-sighted or foreground targeting technology to acquire the straightline distance of your target. When ranging, it will ignore objects that are in the background and will provide the distance of the closest target.

Flag/Pin Seeking Mode: Each manufacturer brand has their own name for this feature. It's a mode that specifically seeks out and zeros in on the distance to the pin. Sometimes this is just the standard First Target Priority Mode, so you need to carefully read what the manufacturer is advertising.

GPS Rangefinders: Global Positioning System (GPS) rangefinders are exactly what you would expect if a map and a measuring device had a baby. A basic rangefinder uses GPS technology to provide golf course detail such as distances to the flag, hazards, and other targets if it has a customizable pin placement feature.

GreenView: The GreenView Screen allows the user to select the pin placement on the green to provide the distance to the pin instead of the center of green distance.

HoleView: The HoleView Screen allows the user to see the front and back distances on the green to more accurately measure the distance to the hole.

PinSeeker Mode: This is Bushnell's name for the primary targeting mode their rangefinder uses. (See also First Target Priority Mode).

Rainguard HD: Bushnell treats their optics with a special and patented coating to protect them from fogging up. The lens also easily reject snow, sleet, and rain drops by causing them to break up and scatter when they contact the lens.

Rain Mode: Bushnell Golf is one of few manufacturers that has a specific mode that compensates for weather such as rain and snow. The laser rangefinder can reject reflections off rain drops or snowflakes and still get distances with successful target acquisition.

Scan Mode: This mode allows you to scan or pan the course and receive updated distances to targets and objects that come into view while looking through the rangefinder.

Slope Compensation: Slope technology calculates the angle and the compensated range to provide an adjusted distance because of elevation changes. Its purpose is to ensure you are properly informed of the distance ahead so you can select the right club to get the proper trajectory to make it to the hole.

Straight Line Distance: This is the horizontal distance from you, or rather the device, to the target you're seeking a distance from. It's the primary form of distance that's acquired with all tournament legal laser and GPS golf rangefinders.

USGA Rule 14-3: You'll see this term a lot while in the market for golf rangefinders. It stands for United States Golf Association. To be able to legally use rangefinders in tournaments, the device must comply with the USGA's measuring device policy found in Rule 14-3.

Vivid Display Technology: This new technology is saved for Bushnell's premium rangefinders where light transmission, contrast, and clarity are all better than before. The readouts are brighter, and the display can be read in any light condition.

HAZARD GLOSSARY

Care and Maintenance

To help ensure reliable operation, the following care and maintenance guidelines are recommended:

• Avoid exposing the unit to extreme environmental conditions for a prolonged period of time. The unit is IPX7 rated; it is water resistant, but not waterproof. Unit should not be submerged in any liquids.
• Avoid severe impacts on the unit.
• You may clean the unit occasionally with a soft, damp cloth.
• DO NOT expose the unit to strong chemicals such as gasoline and alcohol, as they will damage the unit.
• Store the unit in a dry place when it is not in use.

WARNING

• Do not attempt to open the Ion Elite.
• Unit contains a lithium ion battery.
• Do not attempt to open, disassemble or service the internal battery. The battery is not replaceable.
• Do not crush, puncture or short the battery's external contacts.
• Do not expose to temperatures above 140º F (60º C). Do not charge battery when temperature is over 113º F (45º C). Do not store unit in temperatures above 113º F (45º C) or below 32º F (0º C).
• Properly recycle or dispose of the battery. Do not dispose in fire or water.

Legal Disclaimer

By using this product, you agree that Bushnell Outdoor Products will not be held legally responsible for any injury or damage to you or any person or property caused by the user's improper operation and/or poor judgment while using this product. Note: See Limited Warranty for other limitations to our liability.

Additional Information

The Global Positioning System (GPS), a network of 32 satellites orbiting Earth, is operated and maintained by the U.S. government. This GPS device requires at least 3 satellites to be acquired to accurately determine your position. Any change made to the system by the government could affect the accuracy and performance of this product.

Bushnell Golf Website
www.bushnellgolf.com
is the best online resource for all Bushnell Golf product owners, including product support, FAQs, etc.

WARNING: AS WITH ANY LASER DEVICE, IT IS NOT RECOMMENDED TO DIRECTLY VIEW THE EMISSIONS FOR LONG PERIODS OF TIME WITH A MAGNIFIED LENS.

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The device does not contain any user-serviceable parts. Repairs should only be made by an Authorized Bushnell Repair center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and will void warranty and your authority to operate the device under Part 15 regulations.

Specifications and design are subject to change without any notice or obligation on the part of the manufacturer.

There are no user controls, adjustments or procedures. Performance of procedures other than those specified herein may result in access to invisible laser light.
This product contains no user serviceable controls.
This product must not be opened or modified by the consumer.
This product must be returned to the manufacturer for service.
Device specifications and design are subject to change without notice or obligation on the part of the manufacturer.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC ID: 2ASQI-36216
IC: 24886-36116

Disposal of Electric and Electronic Equipment
(Applicable in the EU and other European countries with separate collection systems)

This equipment contains electric and/or electronic parts and must therefore not be disposed of as normal household waste. Instead, it should be disposed at the respective collection points for recycling provided by the communities. For you, this is free of charge.
If the equipment contains exchangeable (rechargeable) batteries, these too must be removed before and, if necessary, in turn be disposed of according to the relevant regulations (see also the respective comments in this unit's instructions).
Further information about the subject is available at your community administration, your local waste collection company, or in the store where you purchased this equipment.
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's license-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries. Other names may be trademarks of their respective owners.

©2022 Bushnell Outdoor Products
Bushnell, ™, ®, denote trademarks of Bushnell Outdoor Products
www.bushnell.com
9200 Cody, Overland Park, KS 66214
http://patents.vistaoutdoor.com

* Android and Google Play are registered trademarks of Google Inc. in the United States and other countries. iPhone and Apple Store are trademarks of Apple Inc., registered in the U.S. and other countries. Other names may be trademarks of their respective owners.
