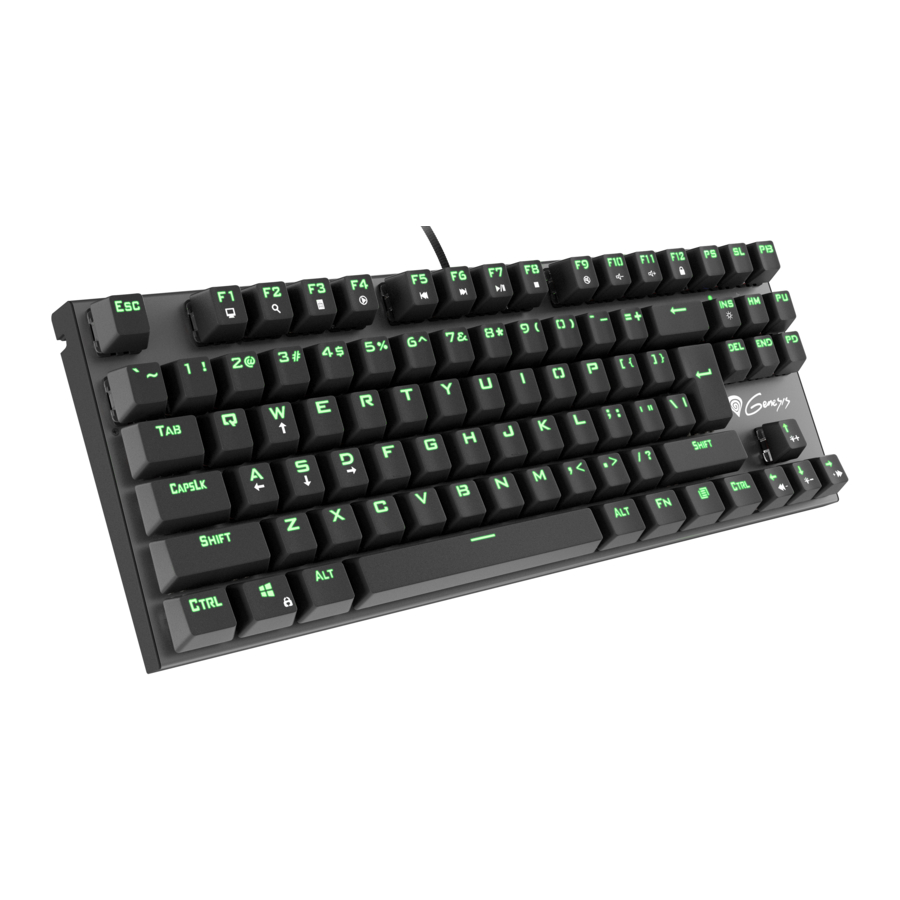

Genesis Thor 300 TKL - Mechanical Keyboard Quick Installation Manual

FEATURES

• Top quality, durable key switches,
• N-Key Rollover,
• Backlight with ability to set 20 different modes,
• „Double injection" key caps guarantee lifetime resistance against rubbing off letters

INSTALLATION

• Connect the device to the USB port in your computer
• System will install driver automatically

SPECIFICATION

• Keyboard size: 335 x 134 x 38 mm
• Keyboard weight: 695g
• Connector: USB 2.0
• Number of key: 87
• Number of Multimedia keys: 11

GAME BACKLIGHT MODE

Press the keys Fn + 0-9 to change between 10 game backlight modes.

CUSTOM MODE

Custom mode allows you to set the individual illumination of each key.

1. Press Fn + 9 or Fn + 0 to enter into "Custom Mode"
2. Press the [FN+HOME] button and then the keys you want to illuminate
3. Then again press the [FN+END] button to save settings

ARROW FUNCTION CHANGE

Press Fn + W keys to swap arrow function with W, A, S, D keys function.

BASIC BACKLIGHT MODE

Press the [FN+INS] key to change between 10 backlight modes.

To change the backlight brightness level press keys Fn + arrow up/down.

PACKAGE CONTENT

• Thor 300 TKL backlit mechanical keyboard
• Quick installation guide

REQUIREMENTS

• PC or PC compatible device with a USB port
• Windows^® XP/Vista/7/8/10

WARRANTY

• 2 years limited manufacturer warranty

SAFETY INFORMATION

• Use as directed.
• Non-authorized repairs or taking the device to pieces make the warranty void and may cause the product damage.
• Avoid to hit or friction with a hard object, otherwise it will lead to grind surface or other hardware damage.
• Do not use the product in low and high temperatures, in strong magnetic fields and in the damp or dusty atmosphere.
• Do not drop, knock, or shake the device. Rough handling can break it.
• Slots and openings in the case are provided for ventilation and should not be obscure. Blocking the vents can cause overheating of the device.

GENERAL

• The safe product, conforming to the EU requirements.
• The product is made in accordance with RoHS European standard.
• The WEEE symbol (the crossed-out wheeled bin) using indicates that this product in not home waste. Appropriate waste management aids in avoiding consequences which are harmful for people and environment and result from dangerous materials used in the device, as well as improper storage and processing. Segregated household waste collection aids recycle materials and components of which the device was made. In order to get detailed information about recycling this product please contact your retailer or a local authority.
