  • Page 1 ClonerAlliance ViewLite AV User Manual...

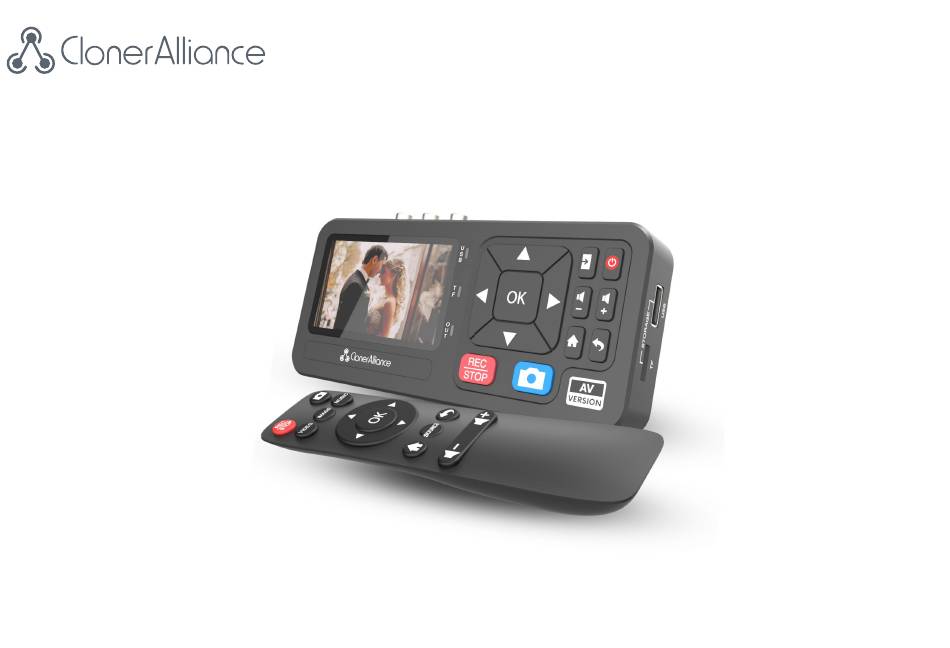

  • Page 2 ClonerAlliance ViewLite AV User Manual This documentation describes how to use ClonerAlliance ViewLite AV (Model: CA-996VL) device. Copyright Notice Copyright © ClonerAlliance Inc. All rights reserved. Documentation Version 1.0.0 No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written permission of ClonerAlliance Inc.
  • Page 3 Before using ClonerAlliance ViewLite AV, please ensure that you read and under- stand the safety precautions below: 1. Do not attempt to open the case of ClonerAlliance ViewLite AV or modify it in any way, as this will void the warranty.

  • Page 5: Table Of Contents

    ................21 How to Playback the Recorded Files on ClonerAlliance ViewLite AV? Playback the Recorded files on ViewLite directly .
  • Page 6 ............40 Setting for live stream in ClonerAlliance Helper (Windows) .

  • Page 7: Getting Started

    GETTING STARTED 1.1 Box Contents a. Power Adapter b. Remote Control c. ClonerAlliance ViewLite AV d. User Manual VIDEO IMAGE MUSIC e. USB-C to USB-A Cable SOURCE f. 3.5mm TRS Audio Cable g. CVBS Cable VERSION h. HDMI 90-Degree Adapter...

  • Page 8: Product Diagram

    1.2 Product Diagram 1. AUX IN: Aux inputs 2. AUX OUT: Aux outputs 3. OUT: Connect an HDMI cable between ClonerAlliance ViewLite AV and TV. 4. S-Video IN: S-Video input 5. R: Right Audio inputs 6. L: Left Audio inputs 7.
  • Page 9 ClonerAlliance ViewLite AV User Manual 9. TF: Insert TF Card. 10. USB: Insert a USB flash drive or mobile hard disk and record videos to this storage medium. 1.2. Product Diagram...
  • Page 10 ClonerAlliance ViewLite AV User Manual • Switch input sources • Start/Stop recording • LCD On/Off switch • Take a snapshot • Speaker volume down • Make selections • Speaker volume up • Fast-forward and fast-backward • Show the menu to change settings •...

  • Page 11: Indicator Diagram

    ClonerAlliance ViewLite AV User Manual 1.3 Indicator Diagram USB Indicator No USB Storage Device connected Solid Blue USB Storage Device is connected Blinking Blue In recording process and saving files to USB Storage Device TF Indicator No TF Card inserted...

  • Page 12: Remote Diagram

    ClonerAlliance ViewLite AV User Manual 1.4 Remote Diagram Start/Stop recording Take a snapshot Videos Playback VIDEO IMAGE MUSIC Image Playback Music Playback Fast-backward Fast-forward Previous selection Next selection Confirm button or Go fullscreen while playing back files SOURCE Show the menu to change settings...

  • Page 13: Osd Menu How To Navigate Device Menu

    OSD MENU HOW TO NAVIGATE DEVICE MENU 2.1 Settings Menu You can use the remote or the control panel of ClonerAlliance ViewLite AV to adjust settings. Please press button to show up the Settings Menu. There are four categories of settings:...

  • Page 14: Settings

    ClonerAlliance ViewLite AV User Manual 2.2 Settings • Language – Language: English, Japanese and Italian are available. • Sources – CVBS: Change source input signal to CVBS. – S-Video: Change source input signal to S-Video. – Aux: Change source input signal to Aux.
  • Page 15 1 to 999 minutes. • TF Transfer Mode – Switch on/off TF transfer function. If this option is on, the TF card inserted in the ViewLite AV device can be directly recognized by the PC. • System Time – Set the system time.

  • Page 16: Videos

    ClonerAlliance ViewLite AV User Manual 2.3 Videos Choose the file you want to playback. Press ”OK” button to enter Press the right and left arrows to choose ”Videos” category fullscreen mode. 2.3. Videos...

  • Page 17: Pictures

    ClonerAlliance ViewLite AV User Manual 2.4 Pictures • Press the up and down arrows to choose the picture you want Press the right and left arrows to choose ”Pictures” category to playback. 2.4. Pictures...

  • Page 18: Audio

    ClonerAlliance ViewLite AV User Manual 2.5 Audio Press the right and left arrows to choose ”Audio” category • Press the up and down arrows to choose the audio file you want to playback. 2.5. Audio...

  • Page 19: How To Record Videos To The Usb Storage Device/Tf Card

    Tips: If you want to monitor the output image on TV, you can connect ClonerAlliance ViewLite AV from OUT port to TV via an HDMI cable. Please note that the output image will either display on the screen of ClonerAlliance ViewLite AV or the TV, it can NOT display on both...
  • Page 20 ClonerAlliance ViewLite AV User Manual Tips: When recording to USB storage devices, please use a premium USB flash drive or mobile hard disk with high speed to avoid unexpected problems such as file loss. 3.1. Connect...

  • Page 21: Record Videos

    • Record videos with the buttons on ClonerAlliance ViewLite AV 1. Power on all devices, the video image from the video player will be displayed on the screen of ClonerAlliance ViewLite AV. If a TV is connected to the OUT port of ClonerAlliance ViewLite AV, then the video will be displayed on the TV.
  • Page 22 ClonerAlliance ViewLite AV User Manual 3. Press the Rec/Stop button on ClonerAlliance ViewLite AV, then the storage LED will blink blue, which indicates ClonerAlliance ViewLite AV is in the process of recording. 3.2. Record Videos...
  • Page 23 • Record videos with the remote included with ClonerAlliance ViewLite AV 1. Power on all devices, the video image from the video player will be displayed on the screen of ClonerAlliance ViewLite AV. If a TV is connected to the OUT port of ClonerAlliance ViewLite AV, then the video will be displayed on the TV.
  • Page 24 ClonerAlliance ViewLite AV User Manual 3. Press the Rec/Stop button on the Remote of ClonerAlliance ViewLite AV, then the storage LED will blink blue, which indicates ClonerAlliance ViewLite AV is in the process of recording. 3.2. Record Videos...
  • Page 25 ClonerAlliance ViewLite AV User Manual 3.2. Record Videos...

  • Page 26: Take Snapshots

    4. During recording process, you can adjust the volume of CVBS or S-Video IN by pressing the volume increase/decrease button on ClonerAlliance ViewLite AV or the Remote at any time. 5. Press the Rec/Stop button on ClonerAlliance ViewLite AV remote, check the status of storage indicators, when the LED turns to solid blue, it indicates the videos have been saved.

  • Page 27: Record Audio

    ClonerAlliance ViewLite AV User Manual 3.4 Record Audio ClonerAlliance ViewLite AV can record audio as MP3 files. You can connect your audio source device such as magnetic tape drive and cell phones to ClonerAlliance ViewLite AV with 3.5mm audio cable.

  • Page 28: How To Playback The Recorded Files On Cloneralliance Viewlite Av

    If you use a TV for monitoring during recording videos and you want to playback the recorded files on the TV after recording, please note that the LCD screen of ClonerAlliance ViewLite AV will remain off in the whole process, this is normal and does not indicate a defective unit.
  • Page 29 ClonerAlliance ViewLite AV User Manual 1. After inserted the storage device to ClonerAlliance ViewLite AV and powered it up, please press the “VIDEO”/”IMAGE”/” MUSIC”button on the remote of ClonerAlliance ViewLite AV to enter the playback mode. 2. You will see the list of the recorded files.

  • Page 30: Playback The Recorded Media Files On Tv

    ClonerAlliance ViewLite AV User Manual 3. Select your desired file by using the up and down arrow buttons on the remote control of ViewLite AV. And then press OK to playback the selected video in full screen. 4. During playback, you can use up/down/left/right arrow buttons on the remote to choose previous/next/rewind/forward. To go back to “Capture”mode when you are done playing back videos, simply press the “Back”button on the remote several times until...

  • Page 31: Playback The Recorded Media Files On Pc

    1. After files are successfully saved to USB flash drive, plug the USB flash drive to the USB socket of a smart TV which has built-in media file playback function. 2. Launch USB device on smart TV, then playback the files ClonerAlliance ViewLite AV recorded. 4.3 Playback the Recorded media files on PC For USB storage devices 1.
  • Page 32 • Playback directly with ClonerAlliance ViewLite AV 1. Enter the menu settings and set “TF Transfer Mode”as “Enable”. 2. Connect ClonerAlliance ViewLite AV to PC with the USB-C to USB-A cable. 3. Now TF card can be recognized by PC directly.
  • Page 33 ClonerAlliance ViewLite AV User Manual FYI. You may playback the recorded video files with VLC media player. Please download VLC media player software. If you need to edit the recorded video files with MP4-Cloner, please download MP4-Cloner. 4.3. Playback the Recorded media files on PC...

  • Page 34: How To Connect To Pc And Record Videos Directly

    5.2 How to get the registration code? Please register ClonerAlliance Helper first before using, otherwise there is a watermark when you use the trial version. Launch Cloner- Alliance Helper. Click ”Input registration code” button in the auto pop-up Register window. Fill in your proper email address, real name...
  • Page 35 There is a free bundled software ClonerAlliance AI Video Enhancer, which is a software that enhances video quality through AI algorithm. It can repair the noise in old videos, and improve image resolution, bitrate, etc. It will help a lot. You can click...
  • Page 36 ClonerAlliance ViewLite AV User Manual ClonerAlliance AI Video Enhancer is a powerful software that leverages the power of BSRGAN Artificial Intelligence to enhance, enlarge, and reduce noise in both photographs and videos. 5.2. How to get the registration code?
  • Page 37 ClonerAlliance ViewLite AV User Manual 5.2. How to get the registration code?
  • Page 38 Knowledgebase of MP4-Cloner Software for more details. Both software are totally free for the users of Clon- erAlliance ViewLite AV. After you register ClonerAlliance Helper on your Windows PC, MP4-Cloner will be automatically registered when you run it. 5.2. How to get the registration code?

  • Page 39: Connect Cloneralliance Viewlite Av To Pc

    ViewLite AV device to select the correct input signal. 2. Connect the USB-A to type C cable between the ”To PC” port of ClonerAlliance ViewLite AV and the USB port of PC. After all devices have been connected properly, please power on all connected devices. The Windows operating system will prompt “Found a new hardware”and install the driver automatically.
  • Page 40 ClonerAlliance ViewLite AV User Manual If “Audio/Video streaming”doesn’t appear in the list, please re-connect ClonerAlliance ViewLite AV and try again. 5.3. Connect ClonerAlliance ViewLite AV to PC.

  • Page 41: Record/Capture Videos On Pc

    5.4 Record/Capture videos on PC 1. After all devices are connected properly, power on the video source device and launch ClonerAlliance Helper on PC. 2. If everything is ok, and you will see the image of the video source as below:...
  • Page 42 ClonerAlliance ViewLite AV User Manual 3. Click to start recording. 5.4. Record/Capture videos on PC...
  • Page 43 ClonerAlliance ViewLite AV User Manual Software interfaces may vary depending on the version. 4. Click to stop recording. Tip: During recording, you can also click to pause at anytime. When you want to resume, please click to continue recording. Besides, you can Click to take screenshots, click to capture GIF animation.
  • Page 44 ClonerAlliance ViewLite AV User Manual 6. ClonerAlliance Helper also supports recording videos at the scheduled time. Click to enter the ”Setup” window. Then click the ”+” button. Please enable schedule recording first, and set the recording duration, starting time and repeat mode for schedule recording. Then click ”OK”.
  • Page 45 ClonerAlliance ViewLite AV User Manual 5.4. Record/Capture videos on PC...

  • Page 46: How To Livestream/Record With Obs/Cloneralliance Helper

    6.2 Install ClonerAlliance Helper or OBS Studio For Windows users, ClonerAlliance Helper or third party software like OBS, VLC, etc. can be used with ClonerAlliance ViewLite AV. Please be aware that ClonerAlliance ViewLite AV doesn’t support Linux or Mac for now.

  • Page 47: Setting For Live Stream In Cloneralliance Helper (Windows)

    ClonerAlliance ViewLite AV User Manual 6.3 Setting for live stream in ClonerAlliance Helper (Windows) 1. Install and register ClonerAlliance Helper first. Then run it on your computer. See details about Install and register ClonerAlliance Helper (Windows Users) 2. Please click to set up live stream server: 6.3.
  • Page 48 Then click ”Add” to confirm settings and add a live stream server. 3. Please click to start live-streaming. 4. At the same time, you also can click to capture the streaming videos. 6.3. Setting for live stream in ClonerAlliance Helper (Windows)

  • Page 49: Setting For Preview Video In Obs Studio

    ClonerAlliance ViewLite AV User Manual 6.4 Setting for preview video in OBS studio 1. Run Open Broadcaster Software (OBS Studio). You may download OBS at: https://obsproject.com/download 2. Please click “+”below “Sources”and select “Video Capture Device”from the pop-up menu, then click “OK”.
  • Page 50 ClonerAlliance ViewLite AV User Manual 3. In the “Properties for Video Capture Device”window, select “Video Streaming”in the dropdown list of “Device”, and then scroll down to the “Audio Output Mode”option. Please select “Output desktop audio (DirectSound)”in the dropdown list. 6.4. Setting for preview video in OBS studio...
  • Page 51 ClonerAlliance ViewLite AV User Manual Click “OK”to save the settings. 6.4. Setting for preview video in OBS studio...
  • Page 52 ClonerAlliance ViewLite AV User Manual 4. Now you can preview the video. Note: Please do NOT run ClonerAlliance Helper and any Third-Party Live Streaming Software like OBS Studio at the same time. You need to run each of them separately.

  • Page 53: Frequently Asked Questions

    Yes, ClonerAlliance ViewLite AV works with an over-2 TB external hard drive(8 TB at most). ClonerAlliance ViewLite AV works with all formats of USB sticks(NTFS, FAT32, exFAT) and external hard drives(MBR and GPT). FYI. Due to the maximum capacity limitation of FAT32 and NTFS format, if you use an over-2 TB external hard drive and don’t want to partition it, please format it to exFAT, it will work.
  • Page 54 Can I rename the recorded video file and still play it back with ClonerAlliance ViewLite AV? Yes, but you need to take the storage device out from your ClonerAlliance ViewLite AV and rename the recorded files on a computer. Please make sure the file name is in English without other language text and less than 70 bytes, then the renamed video files also can be played with ClonerAlliance ViewLite AV.
  • Page 55 Thanks very much. Due to time difference, internet connection or any other unexpected factors, ClonerAlliance technical support may miss your chat request. Don’t worry. If we missed your chat request, we will get back to you ASAP. All questions will be answered in 24 hours.

  • Page 56: Supported Resolution

    SUPPORTED RESOLUTION Input 720x480i60; 720x576i50 Output Up to 1920x1080@60fps Recording Up to 1920x1080 (30p) for NTSC or 1920x1080 (25p) for PAL...

  • Page 57: Product Specifications

    PRODUCT SPECIFICATIONS Output format MP4(H.264) , JPG, MP3 Supported Device NTFS, FAT32, exFAT, MBR, GPT Format Single File Size Maximum 4 GB/16 GB Input signal CVBS, S-Video, Aux Output signals HDMI, USB, TF, type C to PC, Aux out Bitrate 4Mbps, 6Mbps, 8Mbps Maximum USB Disk stor- 512 GB for USB flash drive/TF card, 8 TB for External Hard drive...

  • Page 58: After Sales Warranty

    AFTER SALES WARRANTY ClonerAlliance Inc. provides 90-Day No Hassle Return(No Additional Fee) and 2-Year Replacement Warranty Service for all hardware. Please rest assured to use ClonerAl- liance products.

  • Page 59: Contact Us

    CONTACT US If you encounter any problem when using our products, please contact us by support@cloner-alliance.com or call 1-844-9-CLONER (toll-free) and we will serve you with utmost satisfaction. We’ll offer a satisfying discount on batch purchase and affiliate program. If you are interested, please contact us by marketing@cloner-alliance.com.

  • Page 60: Disclaimer

    DISCLAIMER HDMI is a registered trademark of HDMI Licensing, LLC. USB is a registered trade- mark of USB Implementers Forum. HDMI and USB are registered trademarks of their respective companies. ClonerAlliance Inc. is not affiliated with those companies.
  • Page 61 Toll free: 1-844-9-CLONER Support Email: support@cloner-alliance.com Market Email: marketing@cloner-alliance.com www.cloner-alliance.com Copyright ClonerAlliance Inc. All rights reserved.
