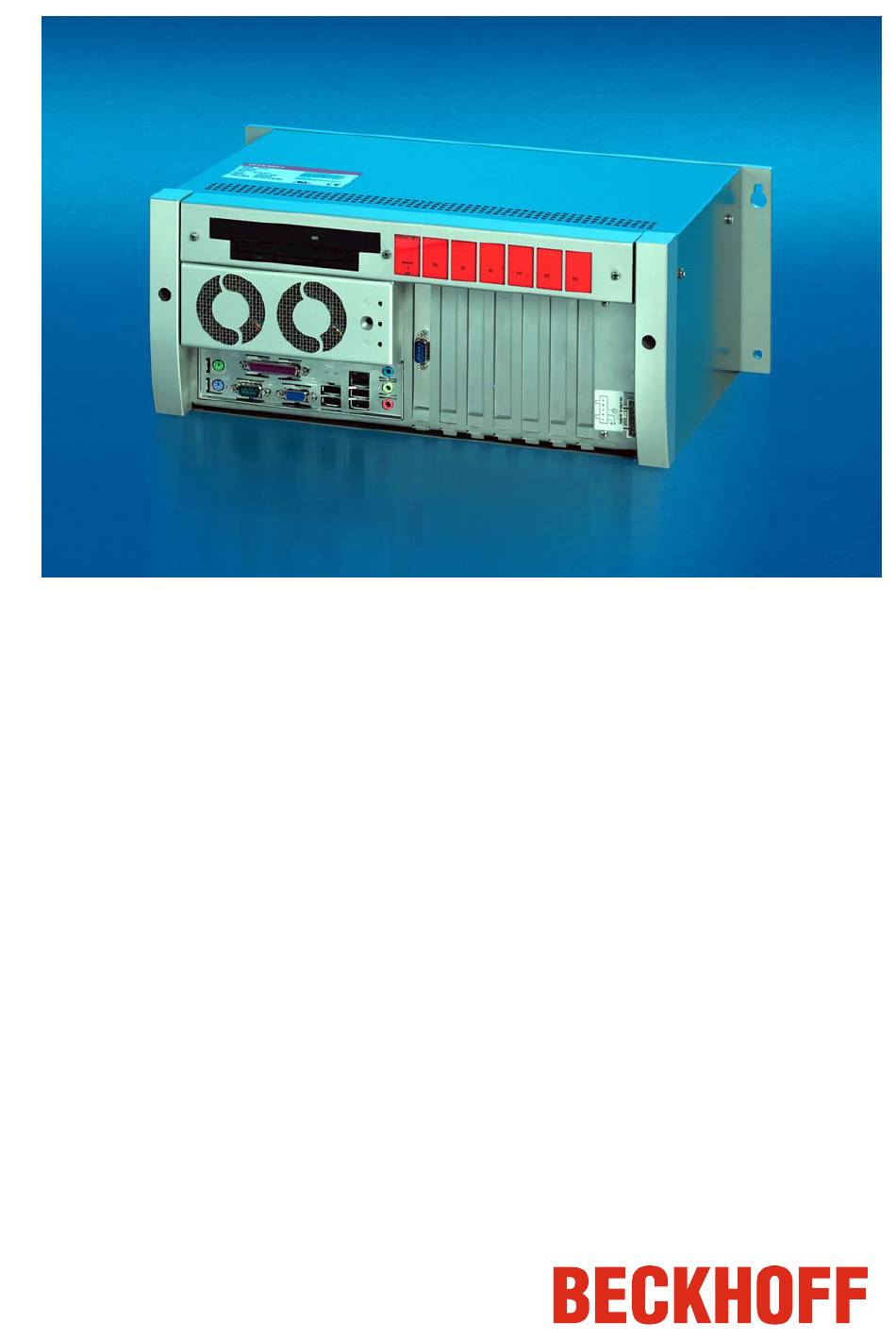

- Page 1 Installation and Operating instructions for Control Cabinet PC C6240 from -0060 Version: 2.0 Date: 2018-02-16...
-
Page 3: Table Of Contents
Table of contents Table of contents General instructions Notes on the Documentation Liability Conditions Trademarks Patent Pending Copyright State at Delivery Delivery conditions Description of safety symbols Basic safety measures Operator's obligation to exercise diligence Operator requirements Product Description Appropriate Use Structure Interfaces from C6240-0060 PS/2 connections... - Page 4 Table of contents Technical data Approvals FCC: Federal Communications Commission Radio Frequency Interference Statement FCC: Canadian Notice C6240...
-
Page 5: General Instructions
General instructions General instructions Notes on the Documentation This description is only intended for the use of trained specialists in control and automation engineering who are familiar with the applicable national standards. It is essential that the following notes and explanations are followed when installing and commissioning these components. -
Page 6: Description Of Safety Symbols
General instructions Description of safety symbols The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions. This symbol is intended to highlight risks for the life or health of personnel. Danger This symbol is intended to highlight risks for equipment, materials or the environment. -
Page 7: Operator's Obligation To Exercise Diligence
General instructions Operator's obligation to exercise diligence The operator must ensure that • the Industrial PC is only used for its intended use (see also Product Description). • the Industrial PC is in a sound condition and in working order during operation. -
Page 8: Product Description
Product Description Product Description Appropriate Use The C6240 Industrial PCs is designed for mounting in control cabinets for machine and plant engineering applications. Structure Front view of Industrial PC C6240 Opening the housing To open the PC housing, initially rotate the two fast closing screws (see photograph above) by 90 degrees in either direction using a screwdriver. - Page 9 Product Description View of the open PC Under the housing cover (1) is a 7 slot computer core with standard ATX motherboard (2) and power supply unit (3). The connections are located at the front of the housing (4). C6240...
-
Page 10: Interfaces From C6240-0060
Product Description Interfaces from C6240-0060 ATX motherboard X116 X105 interfaces X104 X117 X115 X112 X113 X103 X118 X109 X111 X114 X119 X108 X110 PS/2 connections PS/2 The upper PS/2 connector (X104) allows a PS/2 mouse to be used, while a PC keyboard can be connected to the lower PS/2 connector (X103). -
Page 11: Installation Instructions
Installation Instructions Installation Instructions Please also refer to chapter General instructions. Transport and Unpacking The specified storage conditions must be observed (see chapter Technical data). Transport Despite the robust design of the unit, the components are sensitive to strong vibrations and impacts. During transport, your Industrial PC should therefore be protected from excessive mechanical stress. -
Page 12: Installation Of The Pc In The Control Cabinet
Installation Instructions Installation of the PC in the control cabinet The C6240 Industrial PC is designed for mounting in control cabinets for machine and plant engineering applications. The ambient conditions specified for operation must be observed (see chapter Technical data). Preparation of the control Four holes for the fixing bolts have to be provided in the control cabinet cabinet... -
Page 13: Power Supply Connection
Installation Instructions Power Supply Connection The 5-pin CAGE CLAMP plug connector and mounting flange illustrated is located on the PC housing in order to connect the power supply. Socket at the PC housing Technical data Connecting socket Number of contacts Contact spacing 5 mm Minimum conductor cross-section... -
Page 14: Fitting The Power Supply Cable
Installation Instructions Fitting the Power Supply Cable Coding pieces The connectors are coded differently at the factory, using snap-on coding pieces, according to the power supply unit that has been fitted. Differently coded plug connectors Coding for the 24 V power supply Coding for the 100-240 V unit... -
Page 15: Pin Assignment And Cable Requirements
Installation Instructions Pin assignment and cable requirements Pin assignment There is an adhesive label with the pin assignments on the top of the female plug connector. The minimum permitted conductive cross- section is 1.5 mm², fused for 10 A (AWG 16). Industrial PCs with 100-240 V , 50-60 Hz power supply unit Pin assignment for the... -
Page 16: Connecting Devices
Installation Instructions Connecting devices The power supply plug must be withdrawn! Warning Please read the documentation for the external devices prior to connecting them. During thunderstorms, plug connector must neither be inserted nor removed. When disconnecting a plug connector, always handle it at the plug. Do not pull the cable! Connecting cables The connections are located at the top of the Industrial PC and are... -
Page 17: Operating Instructions
Operating Instructions Operating Instructions Please also refer to chapter General instructions. Switching the Industrial PC on and off Switch on The Industrial PC does not have its own mains switch. The Industrial PC will start when the equipment is switched on, or when it is connected to the power supply. -
Page 18: Maintenance
Operating Instructions Maintenance Please also refer to chapter General instructions. Cleaning the Industrial PC Switch off the Industrial PC and all connected devices, and disconnect the Industrial PC from the power supply. Danger The Industrial PC can be cleaned with a soft, damp cloth. Do not use any aggressive cleaning materials, thinners, scouring material or hard objects that could cause scratches. -
Page 19: Troubleshooting
Troubleshooting Troubleshooting Please also refer to chapter General instructions. Fault correction Fault Cause Procedure Nothing happens after the Industrial No power supply to the Industrial Check power supply cable. PC has been switched on Other cause. Call Beckhoff Service. The Industrial PC does not boot Floppy disk or CD in the drive. -
Page 20: Service And Support
Troubleshooting Service and Support Beckhoff and their partners around the world offer comprehensive service and support, making available fast and competent assistance with all questions related to Beckhoff products and system solutions. Beckhoff's branch offices and representatives Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! -
Page 21: Assembly Dimensions
Assembly dimensions Assembly dimensions The following pages show diagrams of the Industrial PC, with dimensions in mm. The assembly of the unit must take place with the orientation diagrammed here. Warning Horizontal Installation Front View Side View Top View C6240... - Page 22 Assembly dimensions The assembly of the unit must take place with the orientation diagrammed here. Warning Horizontal Installation With C9900 – M630 Front View Side View Top View C6240...
- Page 23 Assembly dimensions The assembly of the unit must take place with the orientation diagrammed here. Warning Vertical Installation Front View Side View Top View C6240...
-
Page 24: Appendix
Appendix Appendix Technical data Industrial PC C6240 Dimensions (W x H x D): 430 x 170 x 274 mm Weight: 12.3 kg (basic configuration) Do not use the PC in areas The Industrial PC may not be used in areas of explosive hazard. of explosive hazard The following conditions must be observed during operation: Ambient temperature:...
