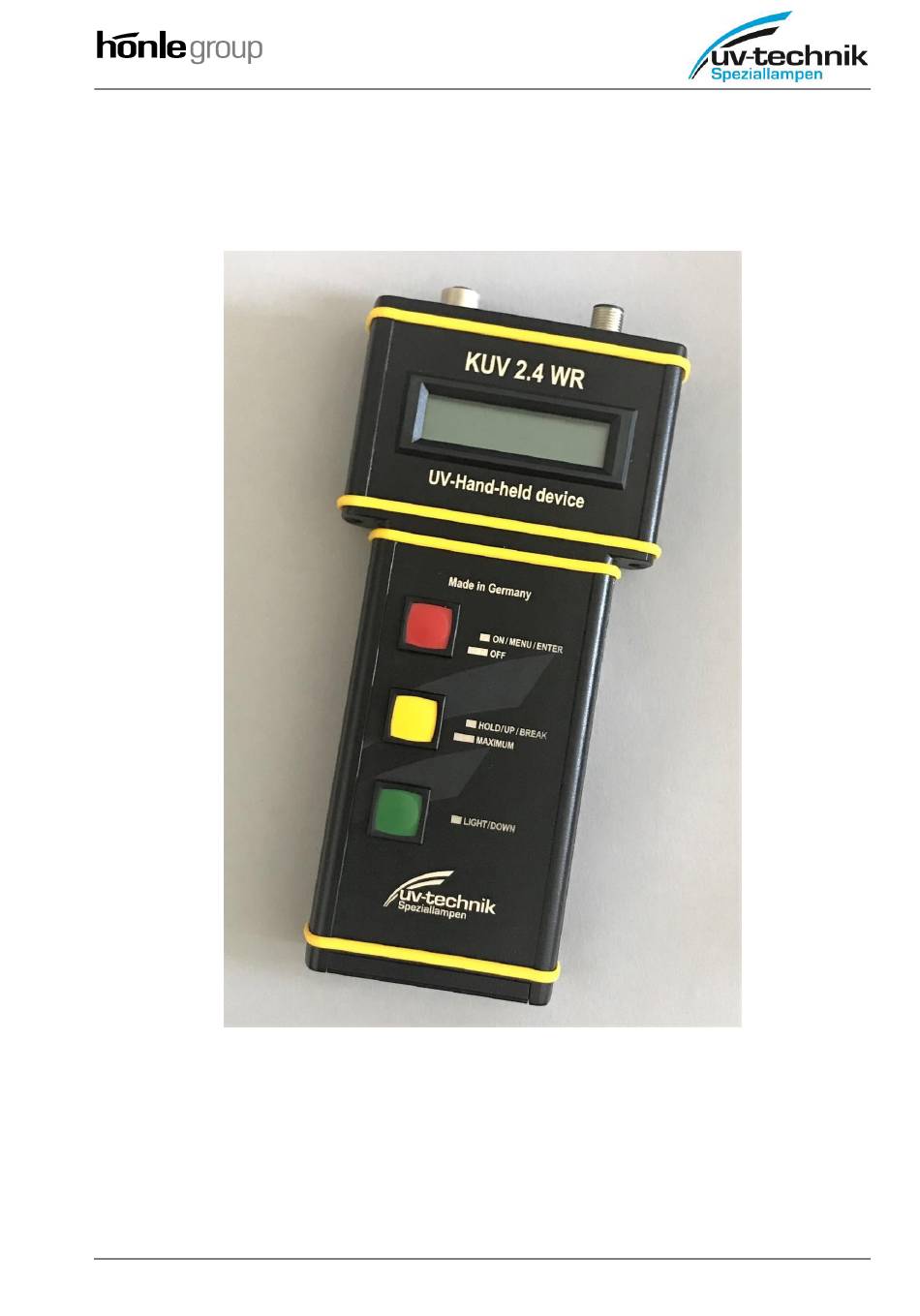

- Page 1 Speziallampen GmbH, Gewerbegebiet Ost 6, 98693 Ilmenau Technical description and user manual UV-Radiometer KUV 2.4 WR MD Version 1.2 subject to change without notice 1 / 5 MES KUV 2.4WR MD MA v1.1.0 E...
-
Page 2: Technical Data

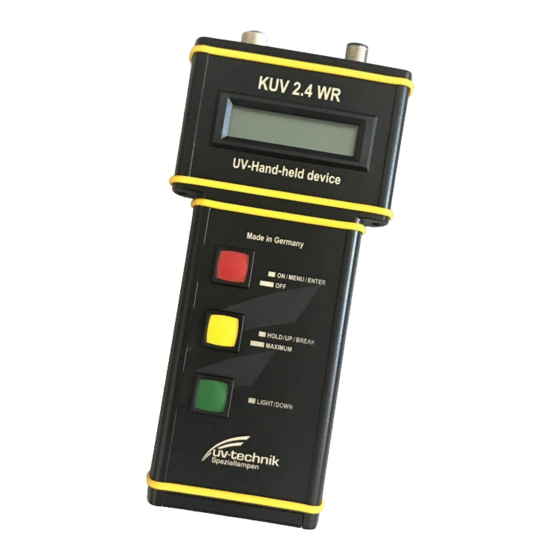

Speziallampen GmbH, Gewerbegebiet Ost 6, 98693 Ilmenau UV radiometer KUV 2.4 WR MD Description The UV measuring device KUV2.4 WR MD is used in conjunction with UV sensors of various types as a mobile handheld device for checking ballast water UV systems. - Page 3 Speziallampen GmbH, Gewerbegebiet Ost 6, 98693 Ilmenau Commissioning The device must be charged before commissioning. To do this, the round plug of the power supply unit must be inserted into the appropriately labelled hollow socket in the battery/connection compartment at the bottom of the device.
-
Page 4: Measurement Output
Speziallampen GmbH, Gewerbegebiet Ost 6, 98693 Ilmenau Measurement output An analogue and digital interface are available for the measured value output. The analogue output is designed as a voltage output of 0.1 to 4.1 V for each measuring range. 0.1 V corresponds to 0 W/m²; 4.1 V corresponds to 2/20/200/20000 W/m², i.e. -
Page 5: Menu Structure
Speziallampen GmbH, Gewerbegebiet Ost 6, 98693 Ilmenau Menu structure Version 1.2 After switching on, press the red button again briefly to enter the main menu. The navigation is simple and usually intuitive. The following overview shows the menu structure.
