Summary of Contents for Megaman Lightwave RF Connect Series

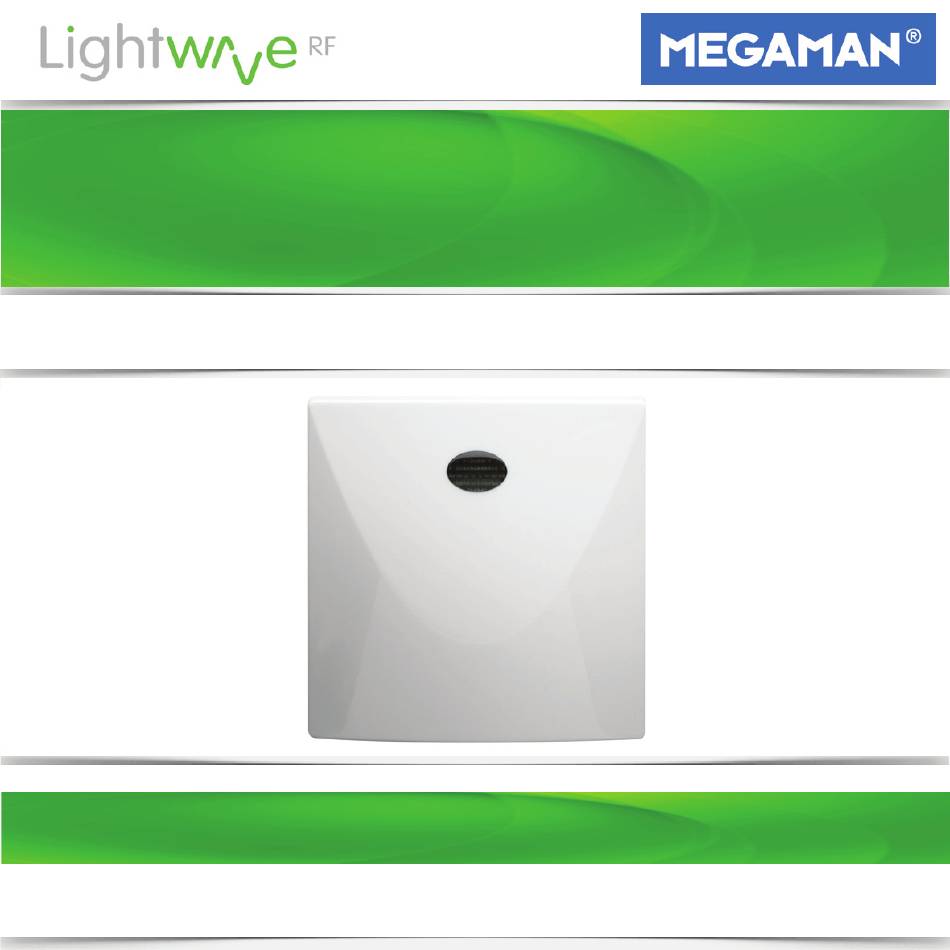

- Page 1 Signal Booster Model No. JSJSLW800 Instruction Manual Connect Series www.lightwaverf.house Version 2...
- Page 2 EC DECLARATION OF CONFORMITY Responsible Authority: LightwaveRF PLC, Innovation Campus Birmingham Faraday Wharf Holt Street Birmingham B7 4BB Tel: +44 (0)121 250 3625 Email: enquiries@lightwaverf.com Model Number(s): JSJSLW800 Description: Signal Booster Directives this equipment Complies with: 2006/95/EC The Low Voltage Directive N/A 2004/108/EEC The Electromagnetic Compatibility Directive 1999/5/EC R&TTE Directive 93/68/EEC CE Marking Directive...
-
Page 3: Device Setup
Device Setup How do I get started? Please refer to the following instructions that will guide you through the setup of a LightwaveRF Signal Booster. Once successfully setup, the Booster will extend range linked LightwaveRF Controllers (including Lightwave Link & Smartphone App). How does it work? The Signal Booster is a wireless, portable device should... - Page 4 Device Setup Overview Front Main indicator Waterproof housing IMPORTANT: Please retain these instructions for guidance on how to link the sensor to other LightwaveRF devices. For additional guidance please visit www.lightwaverf.house.
- Page 5 Device Setup Back (cover and stand removed) Cover Waterproof seal mounting screw hole Linking button Battery compartment Stand mounting hook...
-
Page 6: Removing The Back Cover
Quick Start Guide Device Setup Removing the back cover In order to setup the Signal Booster, and to insert or replace the batteries, the back cover must first be removed. Gently unhook the rear stand using a flathead screwdriver as shown. -
Page 7: Inserting The Batteries
Device Setup Inserting the batteries The battery compartment is accessed from the rear of the booster beneath the cover. 2 x AA batteries are required (not included). NOTE: When the batteries are low, the booster LED will flash every 3 seconds. Linking the booster to a LightwaveRF controller Ensure that the controller (or... - Page 8 Device Setup Press and release the linking button (located under the back cover). The LED on the Signal Booster will flash repeatedly to indicate that it has entered linking mode. Whilst the device is in linking mode, send a command from the controller / App.
- Page 9 Device Setup Unlinking the booster from a LightwaveRF device Press and release the linking button (located under the back cover). The LED on the Signal Booster will flash repeatedly to indicate that it has entered linking mode. Whilst the device is in linking mode, send a command from the controller / App.
- Page 10 Device Setup NOTE: The Signal Booster can be linked to six independent commands in total from any LightwaveRF controllers, including the Lightwave Link & App. If it will not successfully link to a new controller then it is possible that the booster memory is full.
- Page 11 Specification Specification RF frequency: 433.92 MHz Input rating: 1.5V (2 x AA Batteries) Range: 15m (indoors) IP56 Approved.
- Page 12 Version 2 2 Quadrant Park Mundells Welwyn Garden City Herts AL7 1FS 01707 386035 www.lightwaverf.house...
- Page 13 FAQs Can I link the Signal Booster to the Lightwave Link? The Signal Booster can boost to up to 6 specific commands (total) from any combination LightwaveRF controllers. This includes commands from the Lightwave Link. To boost a Lightwave Link command, that command needs to be sent from the LightwaveRF App whilst the booster is in linking mode.
