Summary of Contents for Philips VRB412AT

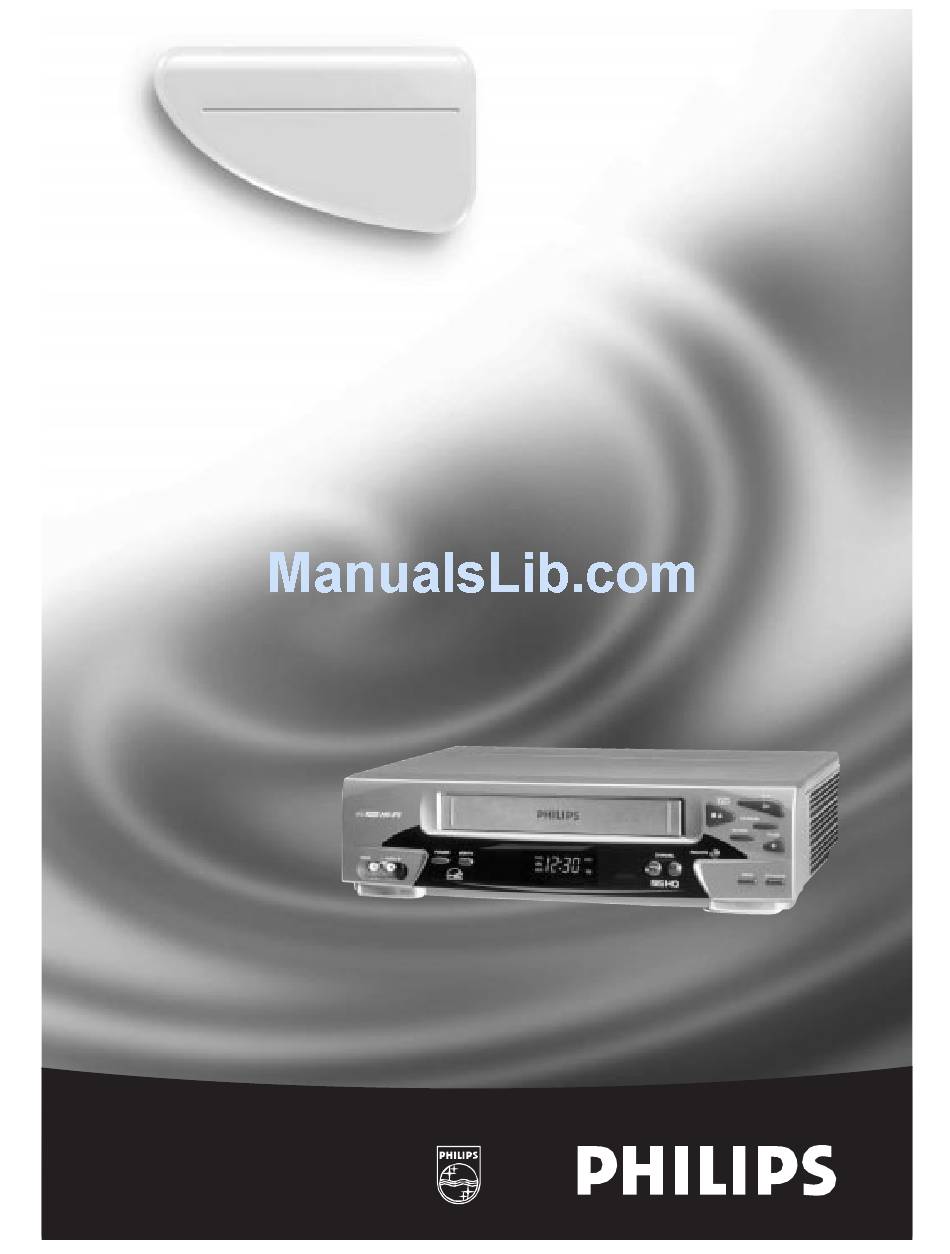

- Page 1 Video Cassette Recorder VRB412AT VRB612AT Hookup Pages Important! Return your Warranty Registration Card within 10 days. See why inside.
-
Page 2: Hookups Without A Cable Box/Direct Broadcast System
Cable Box or a Direct Broadcast System, please see pages eight-nine. If you have a Stereo TV, please see page 10. After you hook up the VCR, go to page 11 to turn on the VCR. (The VRB612 is illustrated here. The VRB412 has single AUDIO IN/OUT jacks.) Disconnect the antenna or cable from your TV. - Page 3 Set the TV to the same channel. For example, when playing a tape, if the CH3/CH4 switch is set to CH3, the TV should be on channel 03. You are ready to turn on the VCR. Please go to page 11 before turning on the VCR. AUDIO...
-
Page 4: Hookups With A Cable Box/Direct Broadcast System
You may not program channels at the VCR. You can only program a timer recording for one channel at a time. Set the TV and the VCR to the Cable Box/DBS output channel (channel 03 or 04). Set the CH3/CH4 switch to the same channel. Set your Cable Box/DBS to the channel you want to record. -
Page 5: Recording One Channel/Watching Another
Put the Cable Box/DBS on the same channel as the VCR’s CH3/CH4 switch. Set the TV to the Cable Box/DBS output channel (03 or 04). Then, with the VCR in VCR position (the VCR light will appear on the display panel), use the CH(annel) o/p button to select the chan- nel you want to record at the VCR. -
Page 6: Hookups With A Stereo Tv
TV’s right and left channels.) This hookup will not give you stereo sound. To get stereo sound, use the connections on pages six - seven and select the channel to be viewed at the TV (with the VCR turned off). -
Page 7: Front Panel
During tape playback, press to fast forward the tape while the picture stays on the screen. Details are on page 41. Press to select an item in the VCR menu or to change the setting of a menu item. -
Page 8: Rear Panel
AUDIO IN Jack(s) Connect audio cables coming from the AUDIO OUT Jacks of a camcorder, another VCR, or an audio source here. Details are on page 37. The VRB612 is shown here. The VRB412 has only one AUDIO IN jack. -
Page 9: Helpful Hints
Audio and Video cables are not supplied. Make the connections shown above. VCR 1 will play your tape. Put a prerecorded tape in VCR 1. VCR 2 will record your tape. Insert a blank tape in VCR 2. The VCR must be in VCR position. (The VCR light will appear on the display panel.
