TOOLS YOU WILL NEED:
Power Drill
Screw Driver
Level
Rubber Mallet
Pencil
Safety Glasses
Tape Measure
Caulk Gun
WARNING: Safety glasses should always be worn when installing tempered glass.
IMPORTANT
• Read installation instructions carefully before starting project.
•
Familiarize yourself with all parts as shown on the next page.
•
The exploded view will provide a helpful reference related to the location of the parts
and how they are mounted.
• Keep instructions for warranty information.

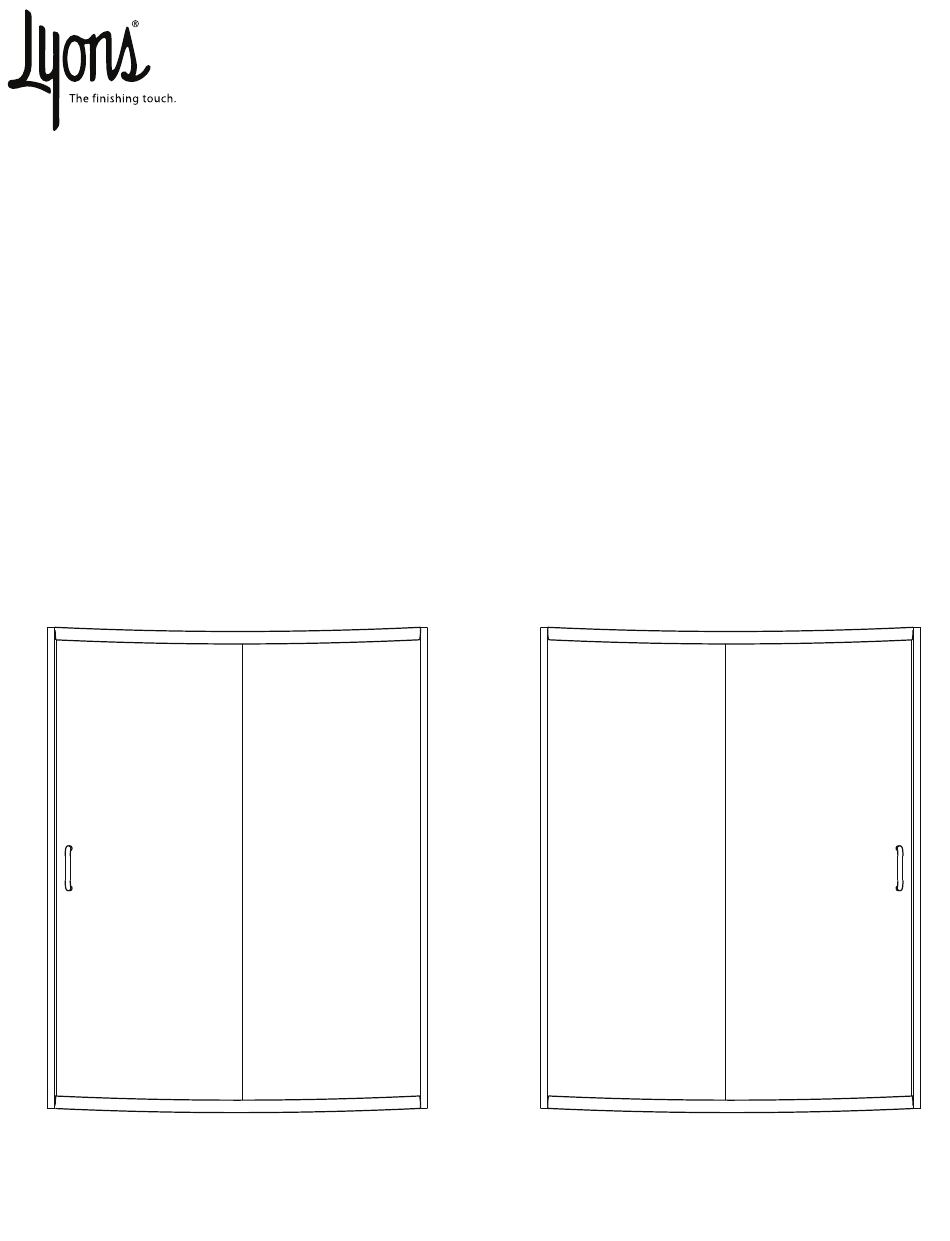

Contour™ Sliding Door (DCT5758-CL-xx)
Left Hand Install
Outside View
DO NOT RETURN PRODUCT!
FOR QUESTIONS OR CONCERNS
please call or e-mail our customer support team
8:00am-4:30pm EST Monday - Friday
1-800-458-9036
lyonssupport@lyonsindustries.com
(color code replaces "xx" in SKU)
SUPPLIES YOU WILL NEED:
1/8" Drill Bit
1/4" Masonry Drill Bit (For Tile Install Only)
Silicone Caulk
Right Hand Install
Outside View
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Lyons Contour DCT5758-CL Series
- Page 1 DO NOT RETURN PRODUCT! FOR QUESTIONS OR CONCERNS please call or e-mail our customer support team 8:00am-4:30pm EST Monday - Friday 1-800-458-9036 lyonssupport@lyonsindustries.com TOOLS YOU WILL NEED: SUPPLIES YOU WILL NEED: Power Drill Screw Driver 1/8” Drill Bit Level Rubber Mallet 1/4”...
- Page 2 Contour Sliding Door SCREW 3/8" Actual Size 16 17 SCREW 1" Actual Size SCREW 2-3/4" Right Hand Door Shown Actual Size SCREW 1/2" Actual Size...
- Page 3 Part List WALL ANCHORS SCREW 3/8" (6 PCS) SCREW CAP (6 PCS) SCREW 2-3/4" (6 PCS) WALL JAMB (2 PCS) SIDE POST (1 PCS) (6 PCS) GLASS FIXING BLOCK SCREW 1/2" (4 PCS) SETTING BLOCK (2 PCS) (2 PCS) VINYL WEDGE (1 PCS) FIXED PANEL(1 PCS) TRACK (2 PCS)
- Page 4 STEP 2 Step 2.1 Move the entire door frame into place. Step 2.2 Place a level on the outside of the frame to ver y they are plumb, then mark the locations to drill. Outside View STEP 3 Now that you have marked your holes, remove Required Stud the door assembly (temporarily).
-
Page 5: Inside View
Step 4.2 Using a 1/8” drill bit, drill 3 evenly spaced holes through the jambs into the frame on the inside of door. Use screws to secure. Repeat on the other side. Cover screws with caps provided. SCREW 3/8" Actual Size Inside View Right Hand Assembly Left Hand Assembly... - Page 6 STEP 7 Slide magnet strip into magnet jamb . STEP 8 Step 8.1 Attach the top and bottom rollers at the top and bottom of the glass door. The H2OFF label should be facing outward. The glass may need to be turned upside down depending on a right or left hand installation.
-
Page 7: Final Step
24 hours. Your installation is minimum of 24 hours. Your installation is now complete. now complete. Inside View Inside View Have a question regarding installation? Please contact Lyons Customer Support at: 1-800-458-9036 M-F 8:00am - 4:30pm EST lyonsind@lyonsindustries.com Hours... - Page 8 Lyons be liable for lost pro ts, loss of use, incidental, special or consequential damages including, but not limited to, damage to or loss of use of the building or its contents, arising out of any defect in the xture; nor shall Lyons be liable for any amount in excess of the original purchase price of the xture.
