Summary of Contents for Magnavox VR400BMG

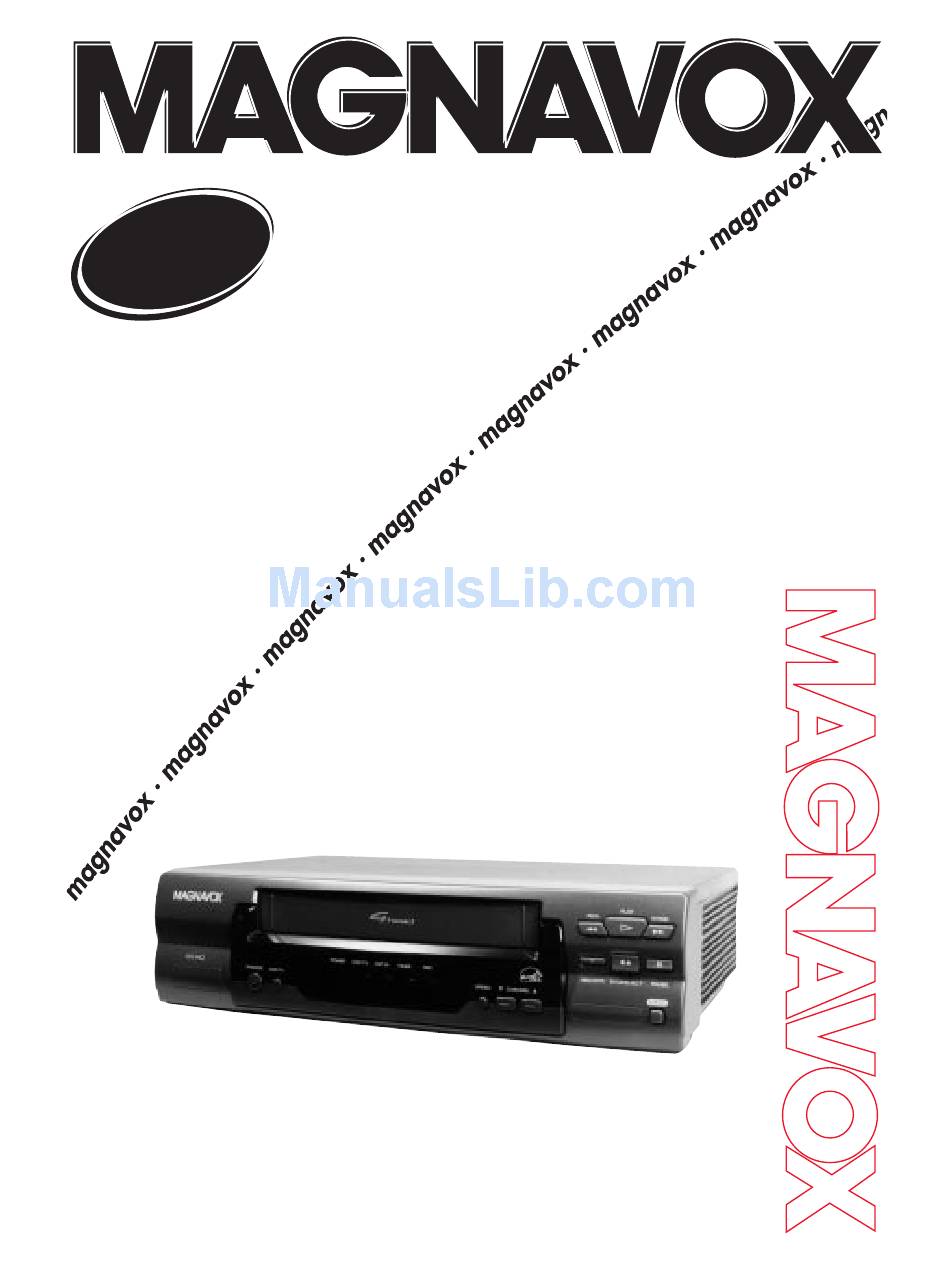

- Page 1 VR400BMG Video Cassette Recorder Video Cassette Recorder Hookup Pages Hookup Pages...
-
Page 2: Hookups With A Cable Box/Direct Broadcast System
You may not program channels at the VCR. You can only program a timer recording for one channel at a time. Set the TV and the VCR to the Cable Box/DBS output channel (channel 03 or 04), and set your Cable Box/DBS to the channel you want to record. -
Page 3: Recording One Channel/Watching Another
Recording One Channel/Watching Another Put the Cable Box/DBS on the same channel as the VCR’s CH3/CH4 switch. (Make sure the TV is on the Cable Box/DBS output channel, 03 or 04.) Then, with the VCR in VCR position (the VCR/TV light... -
Page 4: Hookups With A Stereo Tv
VCR. Connect a video cable to the yellow VIDEO OUT Jack on the back of the VCR. Then, connect the other end of the video cable to the VIDEO IN Jack on your TV. Connect an audio cable to the white AUDIO OUT Jack on the back of the VCR. -
Page 5: Front Panel
During tape playback, press to fast for- ward the tape while the picture stays on the screen. Details are on page 35. Press to select an item in the VCR menu. PLAY Button Press to play a tape. Also, press to release Slow, Search, or Still mode and return to normal play- back. -
Page 6: 22 Rear Panel
22 Rear Panel AC Power Cord Connect to a standard AC outlet to supply power to the VCR. AUDIO IN Jack Connect a cable coming from the audio out jack of a camcorder, another VCR, or an audio source here. Details are on page 33. -
Page 7: Helpful Hints
Make sure the record tab is intact (details are on page five). Make sure the VCR 2 power is on and VCR 2 is in VCR position. (The VCR/TV light will appear. If it does not, press the VCR/TV button once.)
