GEMSYS CD158
Currency Detector
USER MANUAL
www.gemsys.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD158 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gemsys CD158

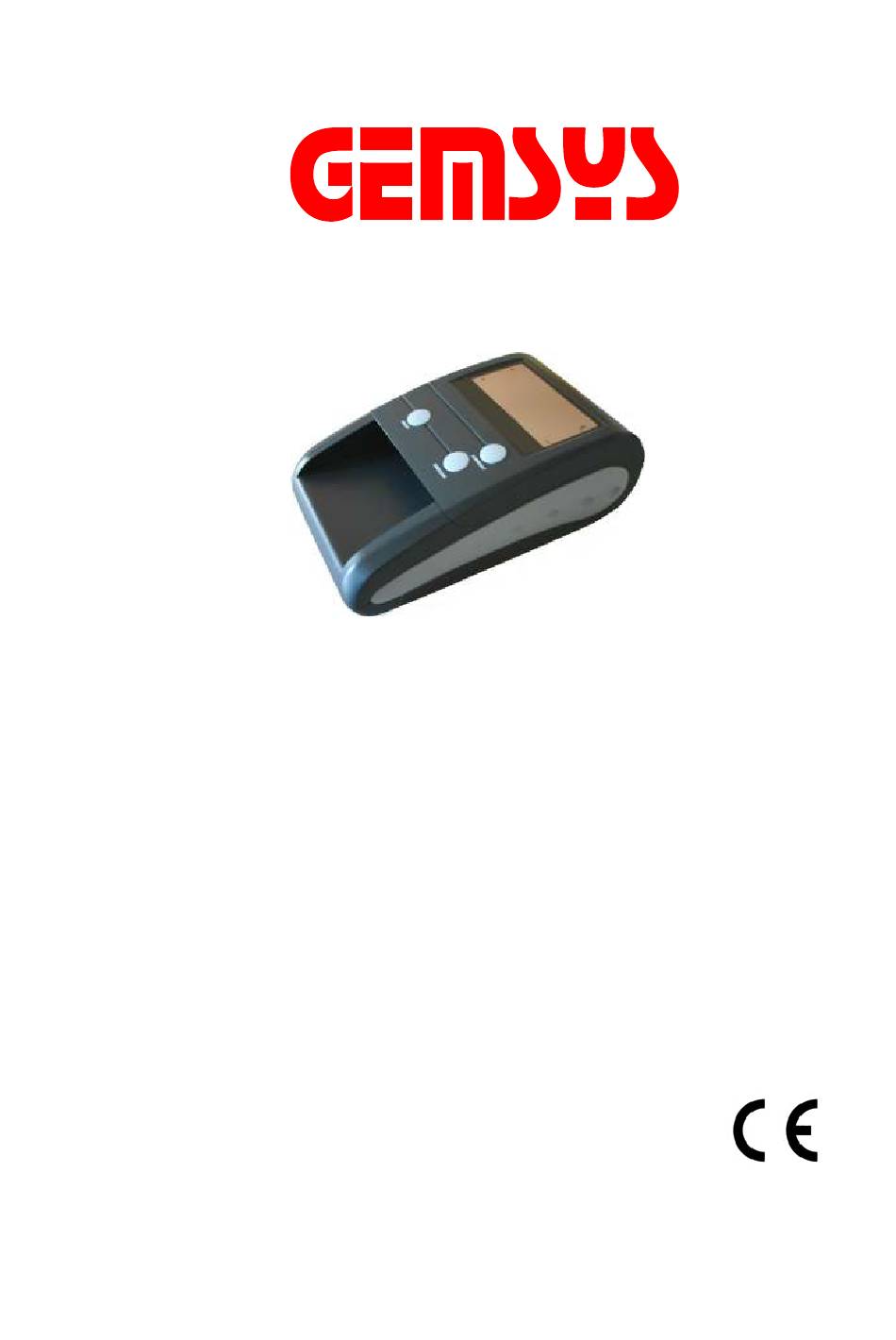

  • Page 1 GEMSYS CD158 Currency Detector USER MANUAL www.gemsys.eu...
  • Page 2 User Manual I. Illustration...
  • Page 3 Description 1. Backwards Indicator 2. Forwards Indicator 3. Number of Sheets Display 4. Total Value Display 5. Euro Indicator 6. British pound (or other banknote) Indicator 7. Currency Selection Key 8. Power On/Off Key 9. Exit Direction Key 10. Entrance 11.
  • Page 4 III. Operation Instruction 1 Working with AC/DC adapter Please plug the attached power supply adapter into main supply, and then connect the DC output plug into the DC socket on back of the machine, The machine will automatically start and perform a self-testing routine, then ‘0’ display on both Number of Sheets Display and Total Value Display, now the machine is ready to work.
  • Page 5 IV. Alarm code When a suspicious note is detected, The Number of Sheets Display will display the error message as following: : length failure -E2 -E3 : magnetism feature failure -E4 -E5 : infrared feature failure V. Troubleshooting 1. If the machine keeps alarm or works abnormal, Check the following; Whether the main power supply is within specified range: AC 100V~ 240V/50~60Hz Whether the DC output is within specified range: DC 12V Whether the supply plug is well connected.
  • Page 6 5. Battery: Rechargeable Lithium Battery 11.1V- 800mAH 6. Power Consumption: <10W 7. Speed: <0.5 second/sheet GEMSYS CD 158 Currency Detector The Manufacturer hereby declares that the equipment complies with the stipulations defined in the following guidelines and standards: EN 55022 : 1998 + A1: 2000 + A2 : 2003, EN 61000-3-2/-3 EN 55024 : 1998 + A1: 2001 + A2 : 2003, (EN 61000-4-2/-3/-4/-5/-6/-11) Budapest, 2007.
