Sierra KLD7003SA Manual

Onyx glass tube patio heater

Advertisement

Quick Links

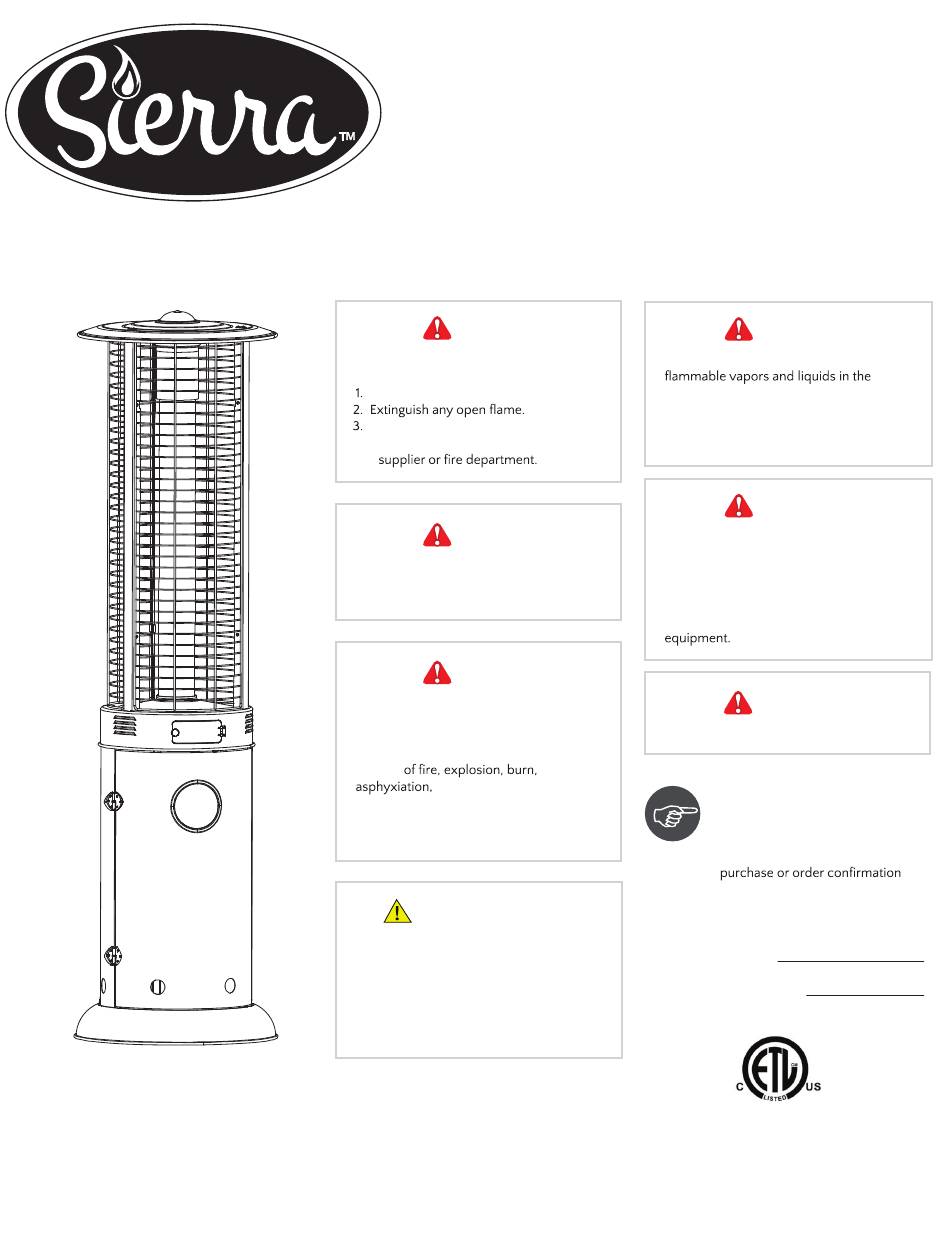

ONYX GLASS TUBE PATIO HEATER
DANGER
FOR YOUR SAFETY:
If you smell gas:
Shut off gas to the appliance.
If odor continues, keep away from
the appliance and immediately call your
gas
DANGER
DANGER indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
DANGER
Failure to comply with the precautions
and instructions provided with this heater
can result in death, serious bodily injury
and property loss or damage from
hazards
and/or carbon monoxide
poisoning. Only persons who can
understand and follow the instructions
should use or service this heater.
WARNING
This product can expose you to chemicals
including Lead, Chromium (hexavalent
compounds), Di(2-ethylhexyl) phthalate (DEHP)
and Diisononyl phthalate (DINP), which are known
to the State of California to cause cancer and birth
defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov.
Item # 9185
Model # KLD7003SA
WARNING
Do not store or use gasoline or other
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
WARNING
Improper installation, adjustment,
alteration, service or maintenance can
cause property damage, injury or death.
Read the installation, operation and
maintenance instructions thoroughly
before installing or servicing this
WARNING
FOR OUTDOOR USE ONLY!
ATTACH YOUR
RECEIPT HERE
Keep a copy of your proof of
which will be needed if you need
to contact us about warranty
coverage.
Serial No.
Purchase Date

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KLD7003SA and is the answer not in the manual?

Questions and answers

Summary of Contents for Sierra KLD7003SA

  • Page 1 ONYX GLASS TUBE PATIO HEATER Item # 9185 Model # KLD7003SA DANGER WARNING FOR YOUR SAFETY: Do not store or use gasoline or other If you smell gas: Shut off gas to the appliance. vicinity of this or any other appliance.
  • Page 2 his manual contains important information about the assembly, operation and maintenance of this patio heater. manual for future reference and to educate new users of this appliance. This manual should be read in conjunction with the labeling on the appliance. Safety precautions are essential when any mechanical or propane fueled with the respect and caution demanded will reduce the possibilities of personal injury or property damage.
  • Page 3: For Outdoor Use Only

    DANGER DANGER CAUTION CAUTION indicates an imminently EXPLOSION—FIRE HAZARD CARBON MONOXIDE HAZARD • Keep solid combustibles, such as building hazardous situation which, if not avoided, • This heater is a combustion appliance. may result in minor or moderate personal materials, paper, or cardboard a safe All combustion appliances produce carbon injury, or property damage.
  • Page 4 Preassembled Preassembled AA Battery 1-877-387-3639 Page 4...
  • Page 5 1-877-387-3639 Page 5...
  • Page 6 PREPARATION Before beginning assembly of this appliance, make sure all parts are present. Compare all parts with package contents list and hardware contents as listed on page 4 of this manual. If any part is missing or damaged, do not attempt to assemble this product.
  • Page 7 Attach the Back Plate (C ) with Bottom (D) with 5pcs M6x12 (AA) Bolts. Hardware Used: M6x12 Put the Burner unit (A) onto the Back plate (C ),fix it with 5pcs M6x12 (AA) Bolts. Hardware Used: M6x12 Attach the Door (B) to the Back plate (C ). Hook the Chain (J) into the holes of Back plate (C ).
  • Page 8 Attach the Up Cover (G) onto the Reflector (F) with 1pc M6x35 (EE) screw and M6 (BB) nut. Hardware Used: M6 Hardware Used: M6x35 Unscrew the 6pcs preassembled M6x12 (FF) screws, attach the reflector onto the top,then fix them with M6x12 screws.
  • Page 9 Unscrew from the grid plate (I) the 4pcs M5x10 (GG) screws, disassemble 1 pc protection guard. Remove the protection Foam (H). Hardware Used: M5x10 Attach the protection guard back with grid plate (I) 4pcs M5x10 (GG). Complete. Hardware Used: M5x10 1-877-387-3639 Page 9...
  • Page 10 When installing an LPG cylinder, it may be easier to remove the Door Panel and set aside. Place the cylinder . Secure using the horizontal in the vertical side of each to prevent the cylinder from shifting. Connect the gas hose to 20lb LPG cylinder (not included). Screw the regulator to the cylinder.
  • Page 11: Before Turning Gas Supply On

    OPERATING INSTRUCTIONS BEFORE TURNING GAS SUPPLY ON: LEAK TEST WARNING Your heater was designed and 1. Make 2-3 oz. of leak test solution • Perform all leak tests outdoors. approved for OUTDOOR use only. • Do NOT use it inside a building, detergent and three parts water).
  • Page 12 OPERATING INSTRUCTIONS Hose / Regulator Regulator / Cylinder Connection Connection Do not store a spare LP- adjustment of propane gas. Storage of an appliance indoors is permissible only gas cylinder under or near if the cylinder is disconnected and removed from the appliance. A cylinder must this appliance.
  • Page 13: When Heater Is On

    OPERATING INSTRUCTIONS LIGHTING WARNING FOR YOUR SAFETY Be careful when attempting to manually PILOT ignite this heater. Holding in the control NOTE: For initial start or after any cylinder knob for more than 10 seconds before change, hold the control knob in for 2 upon ignition.
  • Page 14: Operation Checklist

    OPERATION CHECKLIST: WARNING For a safe and pleasant heating experience, perform this check before FOR YOUR SAFETY each use: Heater will be hot after use. Handle with extreme care. BEFORE OPERATING: I am familiar with entire owner’s manual and understand all precautions noted.
  • Page 15: Care And Maintenance

    CARE AND MAINTENANCE To enjoy years of outstanding performance from your heater, make sure you WARNING perform the following maintenance activities on a regular basis: FOR YOUR SAFETY Do NOT touch or move heater for at KEEP EXTERIOR SURFACES CLEAN. least 45 minutes after use.
  • Page 16: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Gas valve may be off Turn gas valve ON Fuel tank may be empty Purge air from lines. Open gas lines and depress control Air in supply system knob for 2-3 minutes. Main burner will Loose connection not light Igniter...
  • Page 17: Limited Warranty

    1901 Aut. Transcanadienne Dorval, QC H9P 1J1, Canada www.jaytrends.com Customer Service: 1-877-387-3639 in USA & Canada custserv@jaytrends.com © 2023 Sierra Products, Inc. All rights reserved. Distributed by 4348125 Canada Inc. dba Jay Trends Sales, Dorval, Canada H9P 1J1. 1-877-387-3639 Page 17...
