Summary of Contents for Metkon VACUMET 52

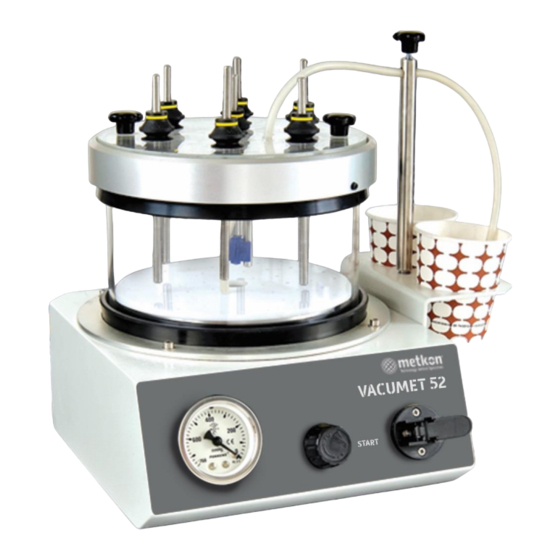

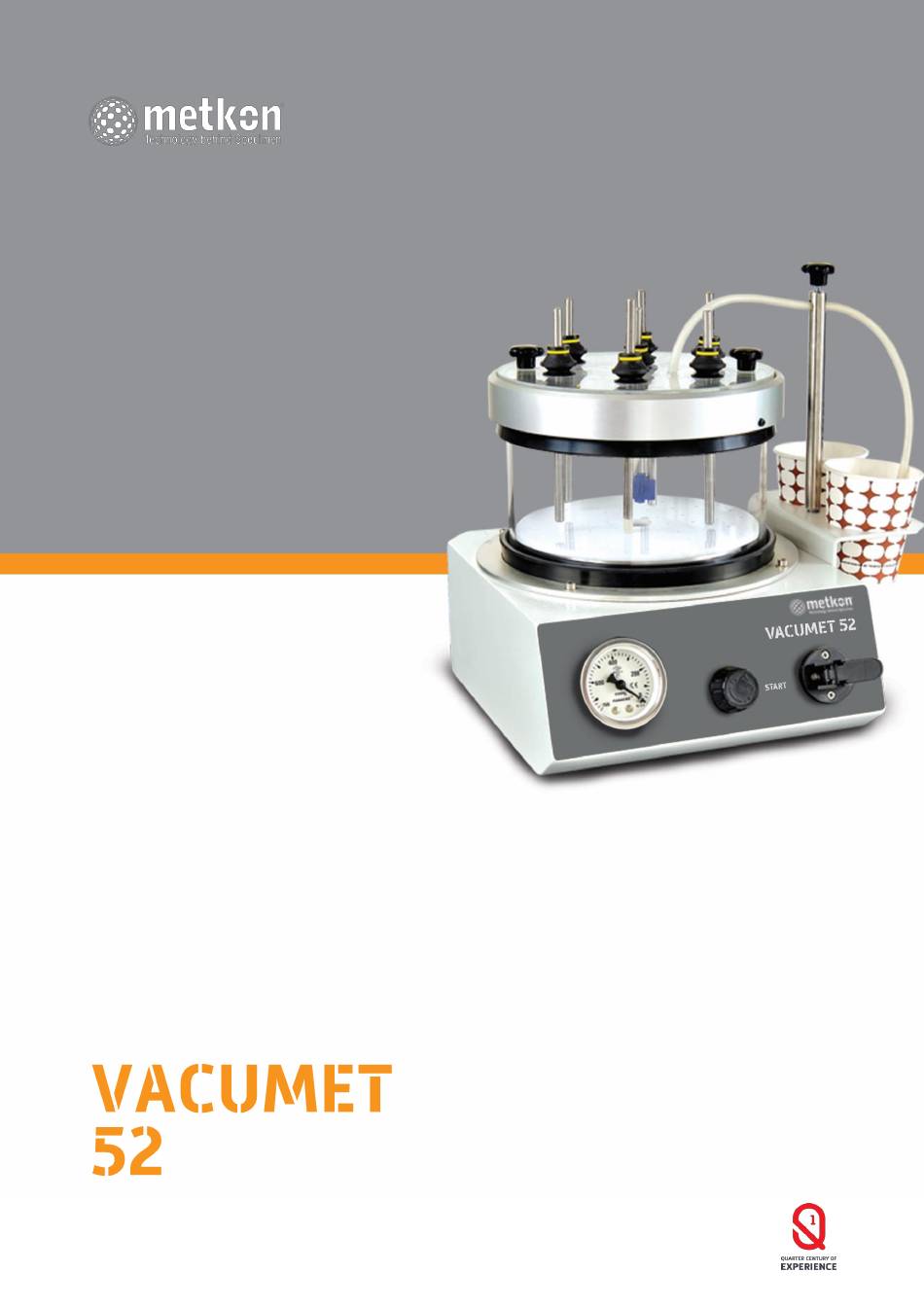

- Page 1 OPERATION & INSTRUCTION MANUAL VACUUM IMPREGNATION UNIT metkon.com...
- Page 2 EC Declaration of Conformity Manufacturer Metkon Instruments Inc. Address Demirtas Dumlupinar Organize Sanayi Bolgesi Ali Osman Sonmez Cd. No: 14 Bursa / TURKEY Model No VACUMET 52 Herewith declares that; Vacuum Impregnation Unit is in conformity with the provisions of the Machinery Directive...
-
Page 3: Table Of Contents
Index DESCRIPTION ..........................4 Design ..................................... 4 Technical Data ..................................5 Warranty ....................................5 Safety Precautions .................................. 5 INSTALLATION & SET UP ......................6 Unpacking & Checking Contents of Package ........................... 6 Installation and Set-Up ................................6 CONTROL PANEL ........................7 Control Button Functions ................................ -
Page 4: Description
VACUMET 52, close cover and turn on vacuum. That's all! Most mineralogical specimens have porosities, cavities, cracks, and ther fore need to be under vacuum. VACUMET 52 Two different operation is possible with VACUMET 52; fulfills this requirement easily and efficiently. In addition, embedding with sucking function or without sucking function. -
Page 5: Technical Data
Weight, kgs 8 kgs Warranty Safety Precautions The VACUMET 52 is guaranteed against defective material or Read the below instructions carefully before use. workmanship defects for a period of 12 months from the date Place the machine on a sturdy and safe table. -
Page 6: Installation & Set Up
Air Connection the discrepancy. VACUMET 52 requires air supply with 6 bars pressure to Carefully unpack and check that the following items have generate vacuum. been received: ... -
Page 7: Control Panel
Add 100 gr/23 gr (85 ml/20 ml) Epoxy resin/Hardner into VACUMET 52 has an easy to use operator panel with very a mixing cup and mix continuosly 3 minutes. simple controls. It has specially designed to quick operation. A ... -
Page 8: Accessories And Consumables
ACCESSORIES AND CONSUMABLES Accessories Order No Cold Mounting Accessories 29-551 Spatulas, (100 pcs) 29-552 Mixing Beakers, (10 pcs) 29-553-01 Embedding Form, ø 25 mm (5 pcs) 29-554-01 Embedding Form, ø 30 mm (5 pcs) 29-555-01 Embedding Form, ø 40 mm (5 pcs) 29-556-01 Embedding Form, ø... -
Page 9: Technical Documentation
THROTTLE 2839 1/8 YM 2961-00 VACUUM PUMP, VTX 10B (VTEC MARKA) YM 2962-00 SUCKER, VB20-N-M518MF (3209) YM 2964-01 Base plate plastic, Chamber, VACUMET 52 YM 2968-00 CLAMP S3-HL YM 2969-00 Hose, 4X6, VACUMET 52 Customer Service Our factory-trained assembly personal is at your disposal for customer service. - Page 12 info@microscopeworld.com | 800-942-0528...
