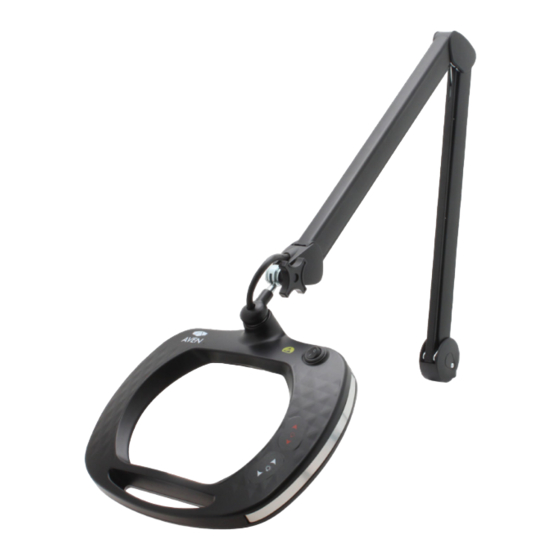

Aven Mighty Vue Inspector Quick Start Manual

www.aventools.com | info@aventools.com | 734-973-0099 | 4330 Varsity Dr, Ann Arbor, MI 48108

Setup Instructions

Step 1: Attach the clamp onto the edge of a table
and adjust it until the clamp is secure, then insert the
magnifying lamp into the hole located at the top of the
clamp
CAUTION: Carefully secure the lamp prior to removing the
twist tie to prevent the spring balanced arm from swinging
open
Step 2: Connect the power cable to the magnifying lamp
(located near the base of the magnifying lamp) and plug
it into an outlet
( If monitor inspection is not required, skip to step 4)
Step 3:
•Insert the Micro SD card into the magnifying lamp
•Connect the HDMI cable from the magnifying lamp to
your monitor or use the USB cable for PC connectivity
•Remove the lens cap
HDMI USB
Micro
Port
Port
SD Card
•Remove the protective battery film from the remote
Port
Power
Step 4: Power on the magnifying lamp to turn on the
magnifying lamp and monitor
(Unplug the USB cable before powering the device on or off)
