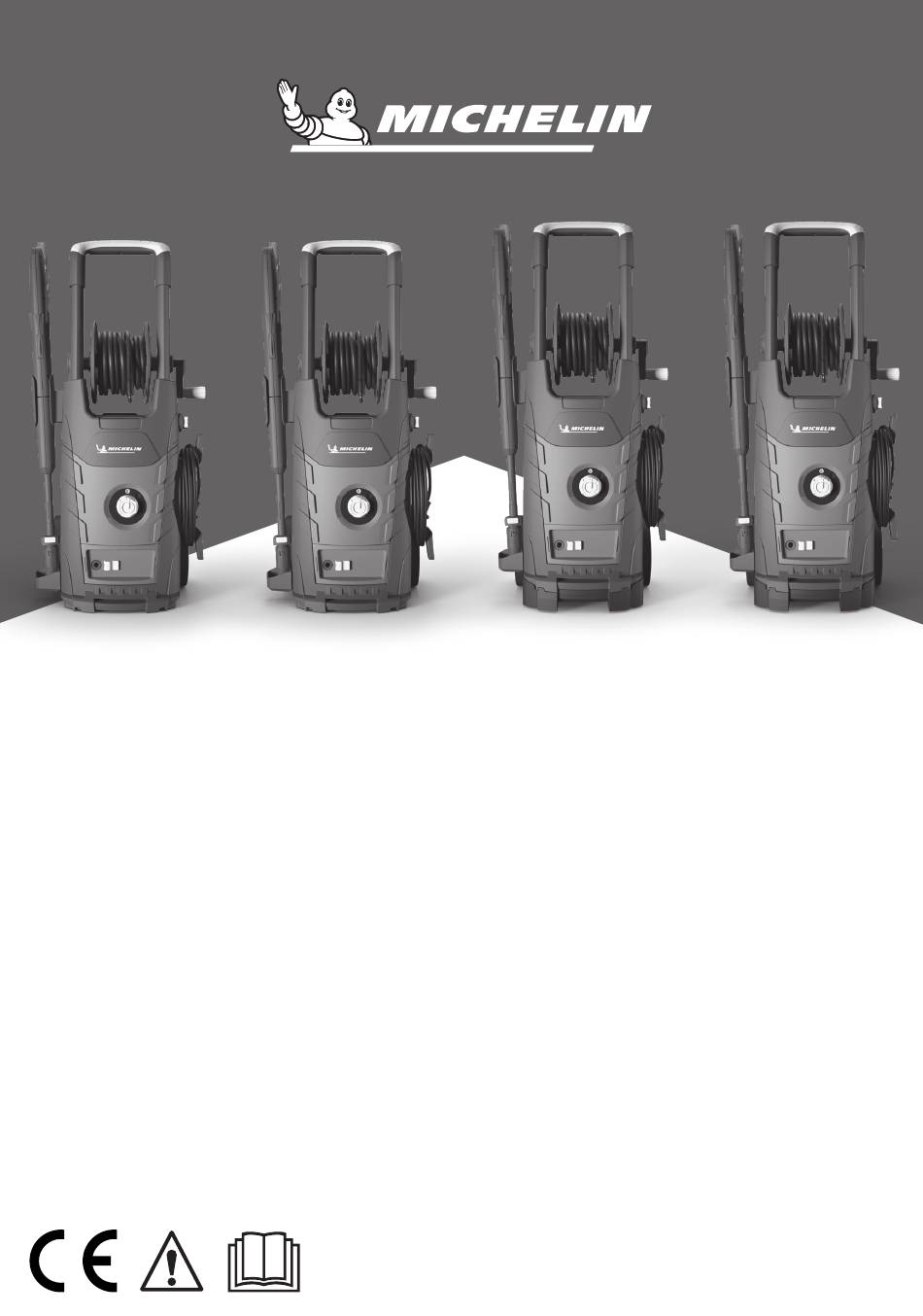

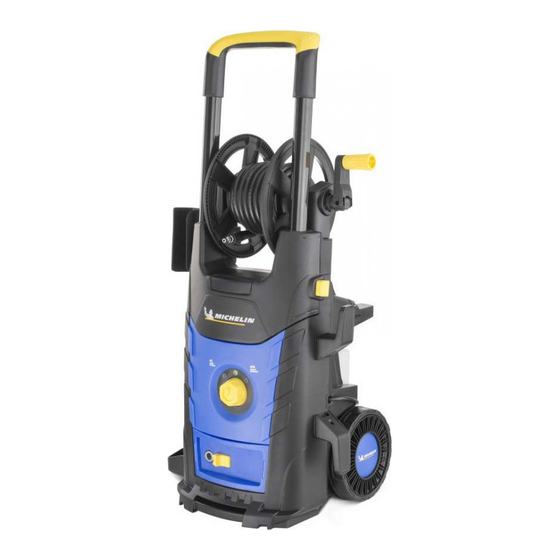

- Page 1 MPX 17Eh MPX 19EH MPX 22EH MPX 25EH High pressure washer Original instructions cod. 95198 Rev01_07062021 - FJ...
- Page 2 Please read these instructions carefully before use. Please retain these instructions for future reference. In case of problems or difficulties, please contact the consumer helpline: www.michelin-lifestyle.com Page: 7-16...
- Page 3 MPX 17EH - MPX 19EH MPX 22EH - MPX 25EH...
- Page 4 Ø13...
- Page 6 1 ÷ 25 m 25 ÷ 50 m Volt 220 - 240 V~ 2 x 1,5 mm 2 x 2,5 mm...
-
Page 7: Safety Instructions
English SAFETY INSTRUCTIONS 1.1 The appliance you have purchased is a technologically advanced product designed by one of the leading European manufacturers of high pressure washers. To obtain the best performance from your unit, read this booklet carefully and follow the instructions each time you use it. - Page 8 English Danger sign, warns users not to direct the water jet at people, animals, elec- trical equipment or the product itself. This product is rated in insulation class II. This means it has reinforced or double insulation (only if symbol appears on appliance). The product complies with the relevant European directives.
- Page 9 English SAFETY RULES/RESIDUAL RISKS SAFETY “DO NOTS” 3.1.1 W . DO NOT allow children to use the appliance; supervise them to ensure arning that they do not play with it. 3.1.2 W . High pressure jets may be dangerous if incorrectly used. arning 3.1.3 W .
- Page 10 English 3.1.19 W . DO NOT allow vehicles to drive over the high pressure hose. arning 3.1.20 W . DO NOT move the appliance by pulling on the high pressure hose. arning 3.1.21 W . When directed towards tyres, tyre valves or other pressurised arning components, the high pressure jet is potentially dangerous.
- Page 11 English 3.2.12 W . Water that has passed through backflow preventers is considered to arning be non-potable. 3.2.13 W . Maintenance and/or repair of electrical components MUST be carried arning out by qualified staff. 3.2.14 W . DISCHARGE residual pressure before disconnecting the hose from the arning appliance.
- Page 12 English - Thermostat valve (D1 where fitted) If the water temperature GENERAL INFORMATION (FIG.1)/PAGE 3 exceeds the temperature set by the manufacturer, the thermostat Use of the manual valve discharges the hot water and draws in an amount of cold The manual forms an integral part of the appliance and should be water equal to the amount of water discharged, until the correct kept for future reference.
- Page 13 English Adjusting the detergent Refilling and using detergent The detergent must be delivered using the accessories and by To deliver detergent at the correct pressure, set the nozzle (E) the procedures described in point 7.2. (where fitted) on " " or fit the detergent kit (C13) (where available) Use of a high pressure hose longer than the one originally supplied as shown.
-
Page 14: Troubleshooting
English TROUBLESHOOTING Problem Possible causes Remedy Nozzle worn Replace nozzle Water filter fouled Clean filter (L) (fig.5) Insufficient water supply Turn on water supply tap fully Air being sucked into system Check tightness of hose fittings Switch off the appliance and keep depressing and releas- Pump does not reach working Air in pump ing the gun trigger until the water comes out in a steady... -
Page 15: Ec Declaration Of Conformity
12.4 Never use the “Turbo Lance” for washing any part of the vehicle. 12.5 For further information refer to section: “8.7 Recommended cleaning procedure”. EC Declaration of Conformity We, Annovi Reverberi S.p.A, declare that the following Michelin Machine(s): Designation of machine High pressure washer Model No. -
Page 16: Technical Data
English Technical Data Technical Data Unit MPX 17EH MPX 19EH MPX 22EH MPX 25EH Flow rate l/min 5.33 Maximum flow rate l/min 7.33 7.66 7.66 8.33 Pressure 10.7 11.5 Maximum pressure Power Maximum inlet temperature °C Maximum inlet pressure Gun repulsive force at maximum pressure 11.70... - Page 17 ✍...
- Page 18 ✍...
- Page 19 ✍...
- Page 20 Via M.L. King, 3 41122 Modena (Italy) MICHELIN and/or the Michelin Man Device and/or BIBENDUM are trademark(s) owned by, and used with the permission of, the Michelin Group. © 2021 Michelin Customer enquiries: We’re at your service. Let us help you, nd a better way forward.
