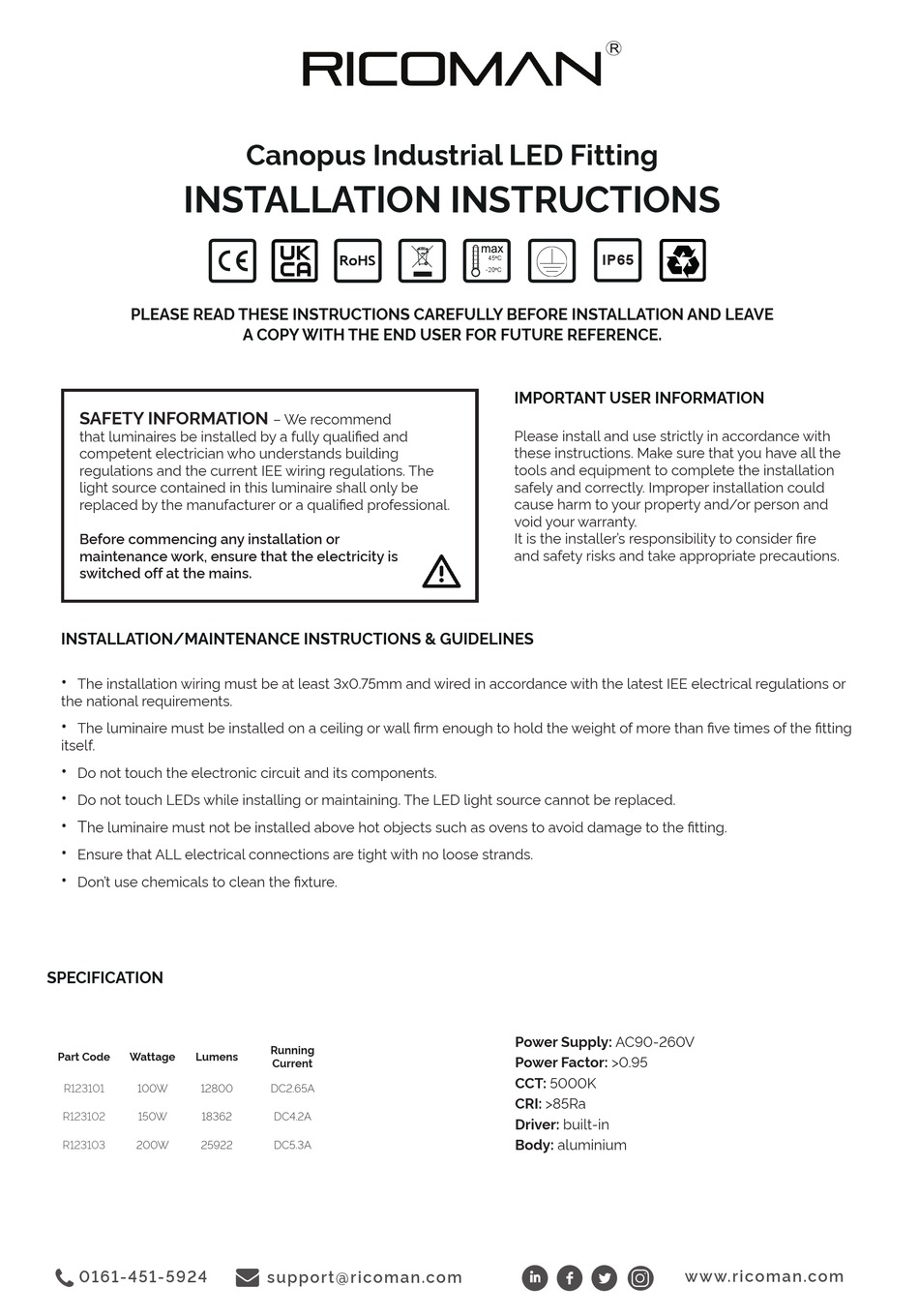

RICOMAN R123101 Installation Instructions

INSTALLATION INSTRUCTIONS
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION AND LEAVE
SAFETY INFORMATION
that luminaires be installed by a fully qualified and
competent electrician who understands building
regulations and the current IEE wiring regulations. The
light source contained in this luminaire shall only be
replaced by the manufacturer or a qualified professional.
Before commencing any installation or
maintenance work, ensure that the electricity is
switched off at the mains.
INSTALLATION/MAINTENANCE INSTRUCTIONS & GUIDELINES
•
The installation wiring must be at least 3x0.75mm and wired in accordance with the latest IEE electrical regulations or
the national requirements.
•
The luminaire must be installed on a ceiling or wall firm enough to hold the weight of more than five times of the fitting
itself.
•
Do not touch the electronic circuit and its components.
•
Do not touch LEDs while installing or maintaining. The LED light source cannot be replaced.
•
T
he luminaire must not be installed above hot objects such as ovens to avoid damage to the fitting.
•
Ensure that ALL electrical connections are tight with no loose strands.
•
Don't use chemicals to clean the fixture.
SPECIFICATION
Part Code Wattage Lumens
R123101 100W 12800
R123102 150W 18362
R123103 200W 25922
0161-451-5924
Canopus Industrial LED Fitting
RoHS RoHS
A COPY WITH THE END USER FOR FUTURE REFERENCE.
– We recommend
Running
Current
DC2.65A
DC4.2A
DC5.3A
support@ricoman.com
IP65
45 C
o
-20 o C
IMPORTANT USER INFORMATION
Please install and use strictly in accordance with
these instructions. Make sure that you have all the
tools and equipment to complete the installation
safely and correctly. Improper installation could
cause harm to your property and/or person and
void your warranty.
It is the installer's responsibility to consider fire
and safety risks and take appropriate precautions.
Power Supply: AC90-260V
Power Factor: >0.95
CCT: 5000K
CRI: >85Ra
Driver: built-in
Body: aluminium
i f l
