- Page 1 UIS - Tooling & Technologies 79 Moss Lane Farm, Moss Lane, Styal, Cheshire, SK9 4LQ T – 0161 428 7959 F – 0161 428 7959 E – info@uisltd.co.uk www.uisltd.co.uk AHP700LUIS Serialnummer Hydraulic Pressure Check pic. similar Instruction Manual HE.17532_F © 07/2016 R&D-2...

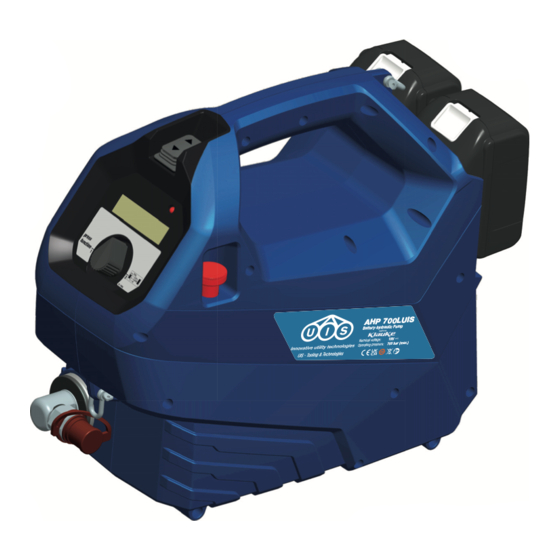

- Page 2 Instruction Manual Battery-hydraulic Pump AHP700LUIS pic. similar pic. 1 HE.17532_F © 07/2016...
- Page 3 Instruction Manual Battery-hydraulic Pump AHP700LUIS pic. similar made by UIS - Tooling & Technologies 304711 Squeeze off Auf dem Knapp 46 D-42855 Remscheid batch# e.g. 304711 datecode e.g. K = 2016; S = May Ductile Iron consecutive# e.g. „142“ = tool # 142...
- Page 4 Instruction Manual Battery-hydraulic Pump AHP700LUIS Use tool only with 18 V Makita battery ® DC18RC Li-ion & Ni-MH 7.2-18V BL1860(B) 55 min. RAL6UK BL1850(B) 45 min. RAL4 BL1840(B) 36 min. RAL40 BL1830 22 min. RAL2 10 - 40°C Li-ion Alle Bedienungsanleitungen auch unter www.klauke.de abrufbar All manuals are also available on www.Klauke.com...
- Page 5 Instruction Manual Battery-hydraulic Pump AHP700LUIS = 10 Nm max. 2. 2. pic. 13 pic. 14 pic. 15 2. 2. 4x 360° 4x 360° pic. similar pic. 16 pic. 17 pic. 17a HE.17532_F © 07/2016...
- Page 6 Instruction Manual Battery-hydraulic Pump AHP700LUIS pic. similar pic similar 2. 2. 4x 360° 4x 360° pic. 18 HE.17532_F © 07/2016...
- Page 7 Instruction Manual Battery-hydraulic Pump AHP700LUIS Squeeze off Ductile Iron Pipe Cutter TOTAL Click Stick t = 0.34 h Q = 0.49 Ah Clean Cut n = 43 HE.17474_B pic. 19 HE.17532_F © 07/2016...
-
Page 8: Scope Of Delivery
Instruction Manual Battery-hydraulic Pump AHP700LUIS Scope of delivery Accessories Please check whether you received all parts The following accessories can be ordered: mentioned in the scope of supply: Pos. Description Art.# Mains adapter 18 V for Pos. Qty. Description Art.#... - Page 9 Instruction Manual Battery-hydraulic Pump AHP700LUIS Tab. 1 When after working cycle 20 sec after inserting the battery Self check after working cycle 20 sec/2Hz while exceeding the temp. limit Unit too hot 20 sec/5Hz after working cycle 20 sec 20 sec/2Hz HE.17532_F ©...
- Page 10 Instruction Manual Battery-hydraulic Pump AHP700LUIS Index Introduction Remarks in respect of the determined use Warranty 4.1 Operation of the unit Description of the electro-hydraulic pumping unit 4.2 Explanation of the application range 3.1 Description of components 4.3 Oil changing and maintenance cycles 3.2 Brief description of the important...
-
Page 11: Warranty
Instruction Manual Battery-hydraulic Pump AHP700LUIS Symbols Safety Warnings Please do not disregard to avoid injuries and environmental damage Application Warnings Please do not disregard to avoid damaging the tool. Introduction Before starting to use the tool please read the instruction manual carefully. - Page 12 Instruction Manual Battery-hydraulic Pump AHP700LUIS Description of the electro-hydraulic pumping unit 3.1 Description of the components The electro-hydraulic pumping unit consists of the following components: Table 2 (see pic.1) Pos. Description Function Battery rechargeable 6 Ah Li-Ion battery (RAL6UK/BL1860) (RAL6UK/BL1860)
- Page 13 Instruction Manual Battery-hydraulic Pump AHP700LUIS 3.2 Brief description of the important features of the unit The unit is equipped with a special brake which stops the forward motion of the piston/dies when the trigger is re- leased. The unit is equipped with a double piston pump which is characterised by a rapid approach of the dies towards the connector and a slow crimping motion.
- Page 14 Instruction Manual Battery-hydraulic Pump AHP700LUIS 3.4 Description of crimping cycles A pressing procedure will be initiated by actuating the trigger. The pressing process is defi ned by the closing motion press of the pressing jaws. The rollers on top of the ram close the pressing jaws scissors like.
- Page 15 Instruction Manual Battery-hydraulic Pump AHP700LUIS Besides the built-in trigger (pic. 1.11) the following accessories can be connected: • Remote control HTA4 (pic. 25.8) • Safety foot switch incl. 4m cable FTA4 (pic. 26.2) The pump recognises the various accessories through a special coding; the forward key (pic. 1.11) will be deactivated accordingly.
- Page 16 Instruction Manual Battery-hydraulic Pump AHP700LUIS 4.2 Explanation of the application range The battery hydraulic pump can be operated with all of the cutting-/crimping- and punching heads in our catalogue. Attention Do not crimp on live cables or conductors. Before starting to work make sure there are no live lines in the working area.
- Page 17 Instruction Manual Battery-hydraulic Pump AHP700LUIS Attention Maintain power tools thoroughly. Check for functionality or jamming of moving parts, breakage of parts and any other condition that may aff ect the power tools operation. The battery-hydraulic pump is equipped with a controller enabling the user to see when the next service is due by fl...
-
Page 18: Troubleshooting
Instruction Manual Battery-hydraulic Pump AHP700LUIS Attention Hydraulic oils can cause cutaneous eruption (eczema) or other health hazards. Avoid longer skin contact. Wash your hands carefully after each contact. Attention Spilled hydraulic oil has to be absorbed immediately. 4.4 Reference as to which spare parts can be exchanged by the customers Within the determined use of the tool the customers may only change the oil. -
Page 19: Technical Data
Instruction Manual Battery-hydraulic Pump AHP700LUIS Technical Data max. operation pressure: 172 bar / 700 bar Hydraulic oil: Rivolta S.B.H. 11 Reservoir capacity: approx. 760 ml Useable oil capacity: approx. 740 ml Environmental temperature: -12°C bis +40°C Control voltage: 18 V DC Driving motor: direct-current permanent fi... - Page 20 Battery-hydraulic Pump Type AHP700LUIS (D) CE - Konformitätserklärung. Wir erklären in alleiniger Verantwortlichkeit, daß dieses Produkt mit den (PL) CE - Zgodnosc z dyrektywami CE. Swiadomi odpowiedzialnosci oswiadczamy, ze niniejszy produkt jest folgenden Normen oder normativen Dokumenten übereinstimmt: zgodny z nastepujacymi normami lub dokumentacja normatywna:...
