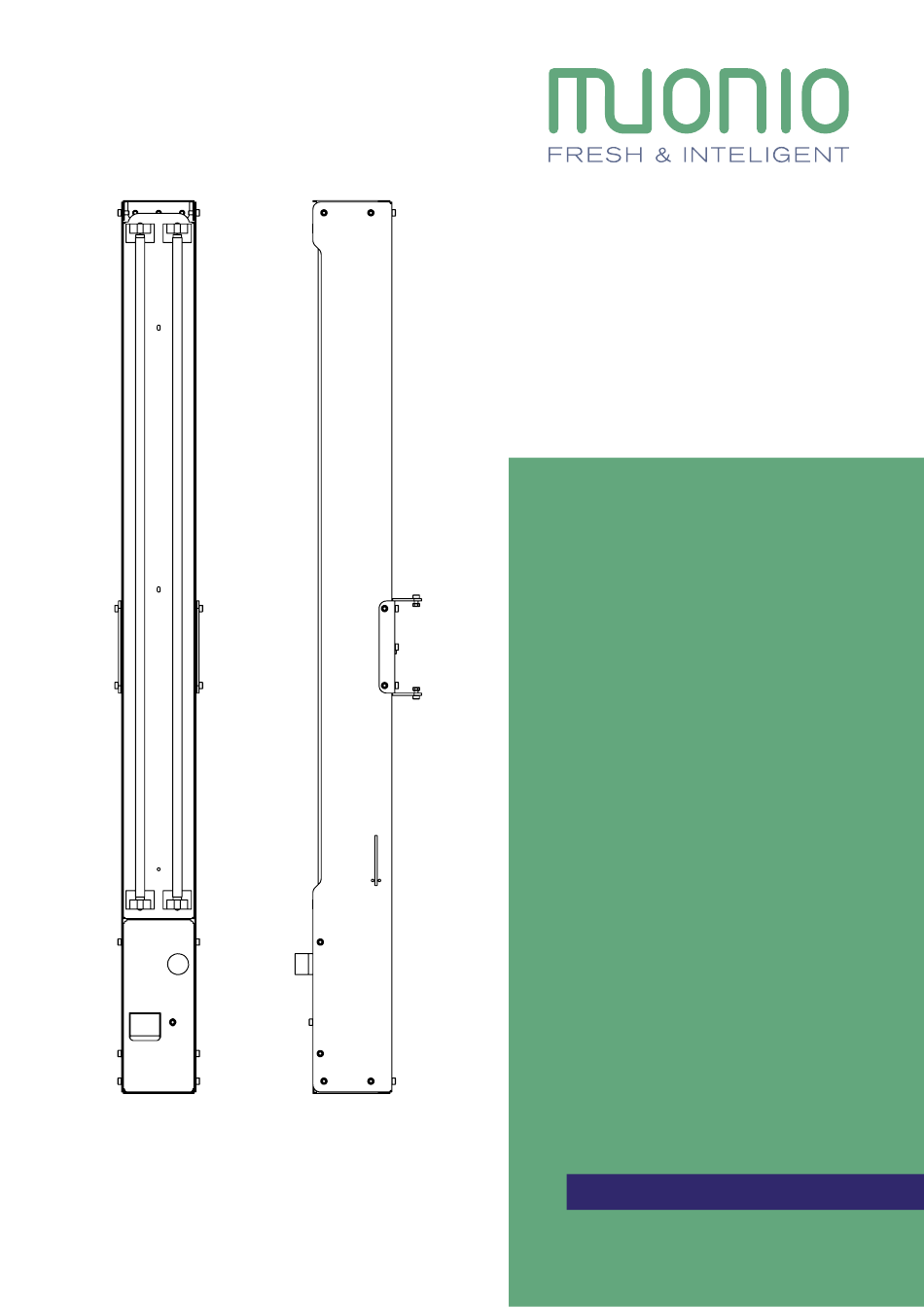

MUONIO UV-O
UVC Surface/Air Disinfectant Unit
People spend 90% of their time indoors
but indoor air quality is 2-5 times worse
than outdoor air quality. Many diseases are
transmitted through poor indoor air quality
or unsterilized surface areas (viruses,
bacteria, moulds are all found indoors on
surfaces and in the air).
UVC treatment is an environmentally
friendly and chemical-free method of
sterilizing surfaces and air that does
not produce harmful byproducts during
sterilization.
MUONIO UV-O systems operate safely
on a timed or constant demand basis to
disinfect the air and all surfaces exposed
to the UV-O unit. The UV-O has a built in
motion sensor which will switch the unit
off if activated thus minimizing the risk of
injury.
The unit uses well established UVC
radiation which has been utilized
extensively in medical, food preparation
and other professions for more than 90
years to disinfect the air, surfaces and to
help mitigate the risk of contracting and
spreading an infection.
All bacteria and viruses tested to date
(including various coronaviruses) respond
to UVC disinfection.
MUONIO UV-O purification system is
particularly suitable for office areas,
hospitality, hospitals, retail sector and
many more.
The UV-O disinfectant device is part of
a broader system range that combines
INSTALLATION MANUAL
Advertisement
Table of Contents
Related Manuals for Muonio UV-O
Summary of Contents for Muonio UV-O
- Page 1 UV-O unit. The UV-O has a built in motion sensor which will switch the unit off if activated thus minimizing the risk of injury.
-
Page 2: Warning Information
A designated fused double pole isolation switch, with at least 3 mm (1/8”) contact separation in both poles is required, to power the Muonio UV-O. The point of connection to the mains (Isolator) should be readily accessible and, if possible, adjacent to the UV-O device. - Page 3 Introduction UVC radiation has sanitizing properties and has many uses in commercial, healthcare, and consumer settings. UVC has germicidal benefits, depending on the exposure dosage (based on strength, proximity and time). However, there are serious risks to UVC exposure, so safety precautions are essential. WARNING The product as described herein contains components that emit UVC light.
- Page 4 / clothing is used. Technical Data The UV-O is a UVC disinfection device that makes surrounding surfaces and air cleaner/healthier by significantly reducing the risk of surface and airborne infections. When operated, it works towards eliminating Viruses, Bacteria & Fungi, Including SARS, Coronaviruses and mould, by exposing the micro-organisms on surfaces and in the air to the UVC light.
-
Page 5: Locating The Unit
Always isolate the AC mains supply before installing or work- ing on any components that require 230 V~, 50 Hz supply. Pre- Installation Information Eye & Skin Burn Hazard ’ MUONIO UV-O his insTallaTion manual s guidelines are for informaTion producT conTains componenTs ThaT emiT only... -
Page 6: General Layout
General layout GENERAL LAYOUT MOUNTING BRACKET UVC LAMPS ULTRASONIC VISUAL / AUDIO MOTION ALARM SIGNAL LUX / TIME / SENSITIVITY ADJUSTMENT FIG 1 EARTH CONNECTION FIG 2... -
Page 7: Installation
The when operaTing nsure The appliance is earThed muonio uv-o o noT use This in areas where excessive dusT exisTs lways disconnecT lecTrical ains upply... -
Page 8: Wall Bracket
FIG 7 Wall bracket supplied with the unit is intended to mount the unit in the horizontal or vertical position. The bracket can support the UV-O unit being installed on the wall or ceiling. SPACE REQUIREMENTS 2 Screws are required per bracket on... - Page 9 UVC LAMPS , uvc iniTial TesTing seTup proTecTive cloThing and goggles musT be worn f The angle of The uv-o uniT musT be alTered afTer iniTial operaTion ULTRASONIC MOTION make sure To solaTe The ains lecTrical ower...
- Page 10 To The uniT should serve The uv-o device only Control Module Connections (pcb) muonio uv-o he conTrol board in The also used in oTher devices and some elemenTs are noT required in This producT ome conTrol oard elemenTs are noT used •...
- Page 11 POSITIONING THE UV-O POSITION OF THE UNIT TOWARD THE ROOM The Muonio UV-O can be installed on the ceiling or on the wall. Place the unit toward the room/area you want to disinfect. Use the bracket to correctly adjust the The MUONIO UV-O can disinfect objects / surfaces upto 25m away, if directly exposed to the UVC Light.
- Page 12 SETUP The Muonio UV-O is available in a single (UV-O 55) 55 watt or double (UV-O 110) 2 x 55 watt bulb unit. UVC also reacts to dust in the room. If dust is from an organic sources (like human skin or hair), the UVC radiation can create a slight odour which is harmless.
- Page 13 TesT The niT To begin a disposing of a lamp ThaT has broken disinfecTion cycle Cleaning Guidelines uv-o u leaning The niT periodically is essenTial for opTimal performance approximaTely every Three monThs wiTh inTervals based on The usage paTTern and condiTions...
-
Page 14: Warranty
WRONG WITH YOUR PRODUCT, CALL 00353 (0)21 4355728 TO RECEIVE A RETURN HOW LONG DOES THE COVERAGE LAST? MERCHANDISE AUTHORISATION (RMA) AND INSTRUCTIONS FOR RETURNING THE MUONIO UVO UNIT INCLUDING THE LAMPS AND POWER SUPPLY, ARE THE PRODUCT TO A LICENSED DISTRIBUTOR IN YOUR AREA OR DIRECTLY TO THE MANUFACTURER. -
Page 15: Disposal Of Old Devices
WARRANTY & SERVICE DISPOSAL Disposal of Old Devices Devices marked with this symbol are subject to European Directive 2002/96/EC. All electric and electronic devices must be disposed of separately from household waste at official disposal centres. Avoid hazards to the environment and dangers to your personal health by disposing of the device properly.
