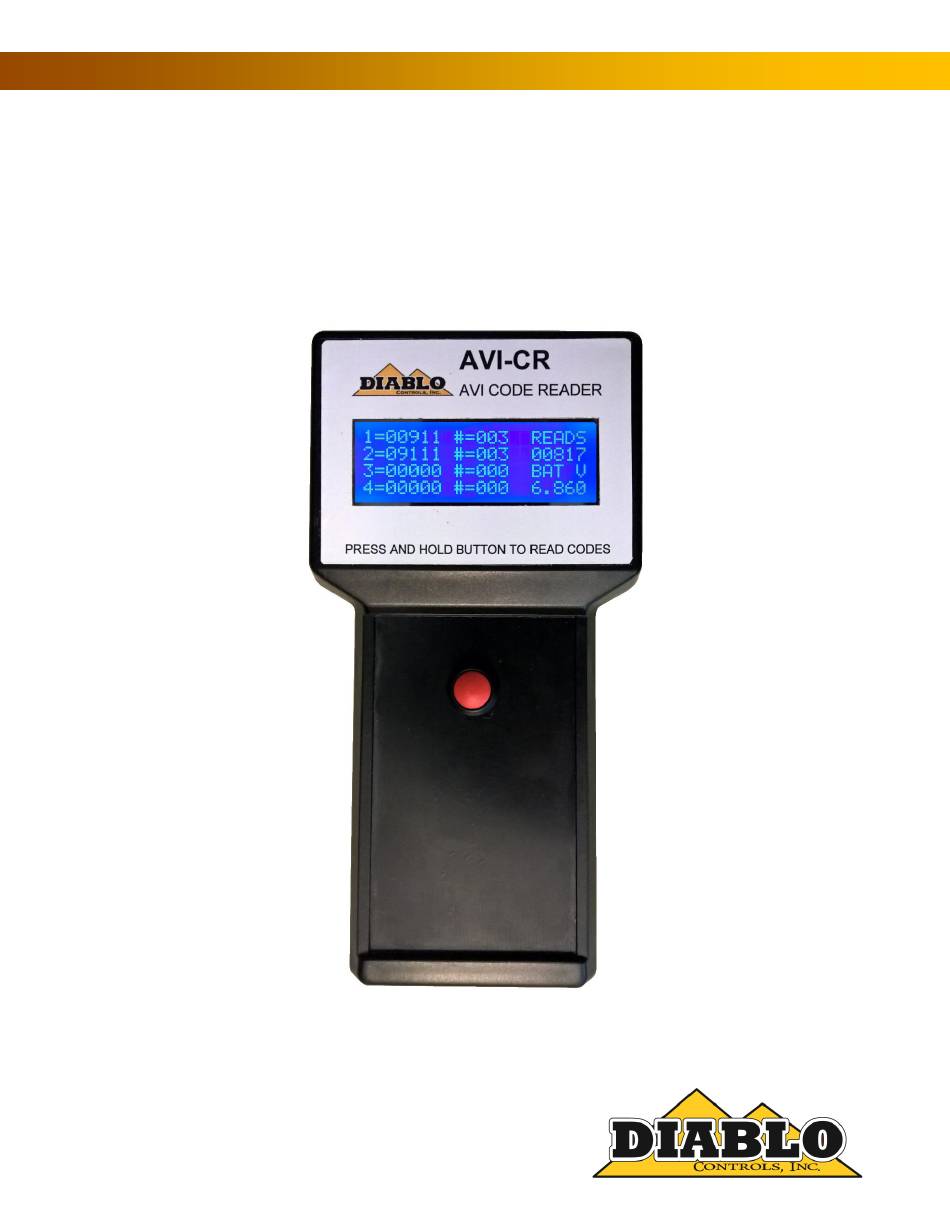

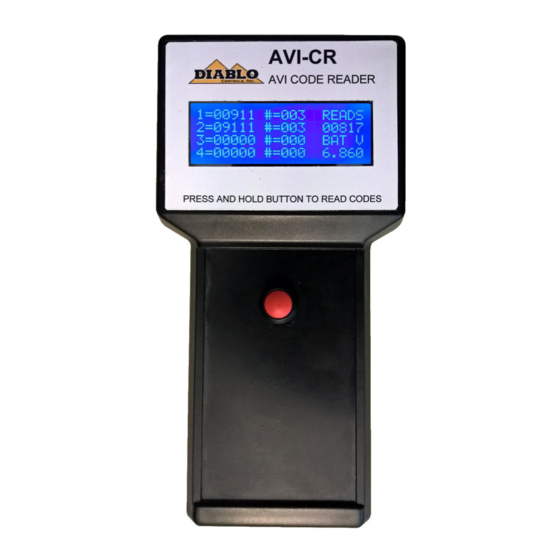

- Page 1 User Manual AVI-CR Automatic Vehicle Identification Code Reader Diablo Controls, Inc. Copyright © 2015-2017 Document: AVICR_MAN_B Released: July 7, 2017 Pros Who Know Trust Diablo...
- Page 2 Weak Reception..............................7 The Display is Hard to Read ............................ 7 Figures Figure 1: AVI Code Reader as supplied ........................3 Figure 2: Code Display Screen ............................5 Figure 3: Wand Extension Clamp ..........................6 AVI-CR User Manual Page 2 of 7 AVICR_MAN_B...
- Page 3 Some receivers are capable of receiving more than one AVI code to activate its output. The AVI-CR is a handheld unit used to verify the operation of AVI transmitters. Since most transmitters will already be mounted on a vehicle, the code reader is supplied with a sensing wand. The sensing wand has an extendable shaft that allows the unit to be compacted for storage.
- Page 4 Splash Screen When the power button is first pressed, a splash screen will be displayed for one second. It will identify the product and the firmware version. AVI-CR User Manual Page 4 of 7 AVICR_MAN_B...
- Page 5 10. Battery voltage – This is the real-time display of the 9-volt battery voltage. A low battery message will be displayed in this area when the battery voltage drops below six volts. AVI-CR User Manual Page 5 of 7 AVICR_MAN_B...
- Page 6 Adjust the sensing head angle to be parallel to the transmitter to be read then retighten the finger nut. AVI-CR User Manual Page 6 of 7...
- Page 7 Make sure that the transmitter being tested is actually working correctly. Check the reception strength with a known good transmitter. If the unit does not operate normally, return it to Diablo Controls for service. The Display is Hard to Read If the battery is good, open the display unit by removing all six screws from the back of the unit.
