SERIE
CSAD UiAWP 100/200/300 PS
EDITION
04/09

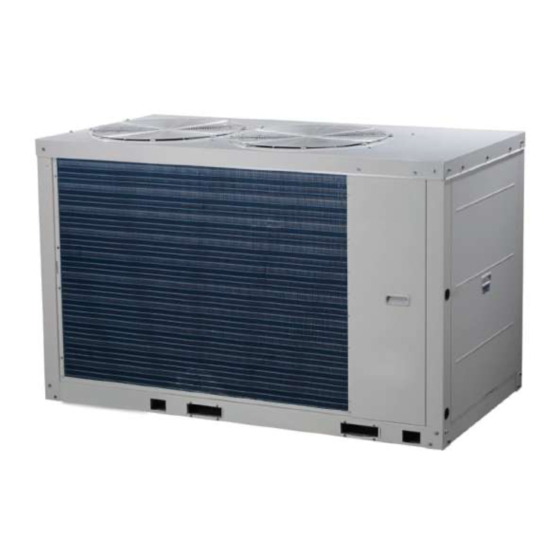

MODULAR CHILLER INVERTER
Models:
CSAD UiAWP 100 PS
CSAD UiAWP 200 PS
CSAD UiAWP 300 PS
IM
En
INSTALLATION
MANUAL
