ROBB Smarrt ROB 200-004-0 Quick Start Manual

ROBB SMARRT Zigbee dimmer basic
Important: Read All Instructions Prior to Installation

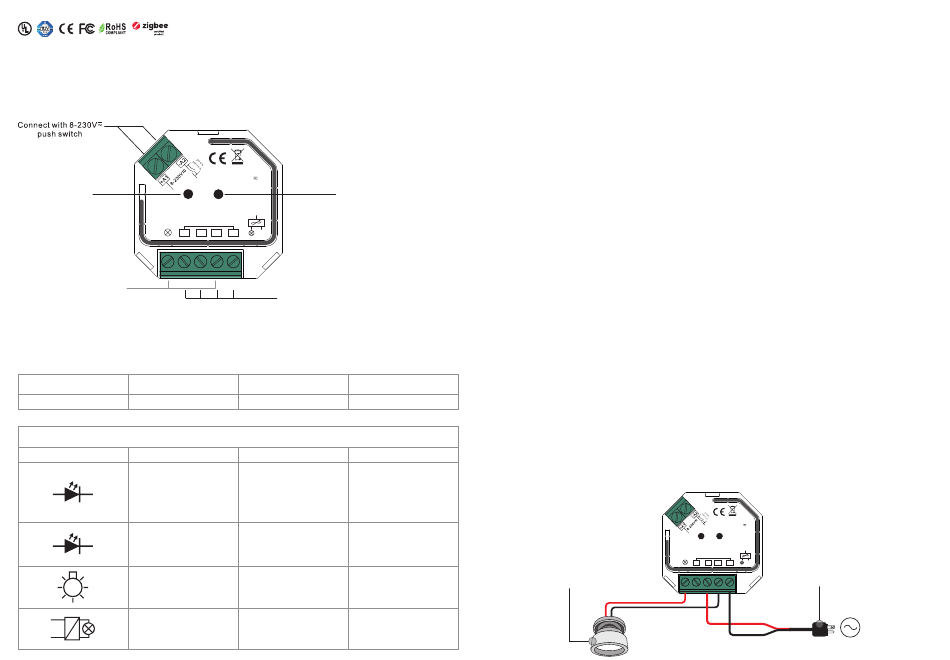

Function introduction

"Reset" Key: for
network pairing,
touchlink, factory
reset of the dimmer,
Reset
turn on/off load
AC 100-240V
OUT
L
1 CH 100-240VAC output
Product Data
Input Voltage Output Voltage
100-240VAC 100-240VAC
Load Symbol Load Type
Dimmable LED lamps
Dimmable LED drivers
Incandescent lighting,
HV Halogen lamps
Low voltage halogen
lighting with electronic
transformers
SKU ROB_200-004-0
SKU 7439647744702
A1-A2: 8-230V
"Min. Set" Key: to set
or delete a minimum
Min.Set
dimming level
N
L N N L
AC 100-240V power input
Output Current
1.5A max 45.5x45x20.3mm
Compatible Load Types
Maximum Load
Due to variety of LED lamp
designs, maximum number
200W @ 220V of LED lamps is further
100W @ 110V dependent on power factor
result when connected to
dimmer.
Maximum permitted number
200W @ 220V
of drivers is 200W divided
100W @ 110V
by driver nameplate power
rating.
400W @ 220V
200W @ 110V
200W @ 220V
100W @ 110V
• ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol
V2
• 100-240VAC Wide Input and Output Voltage
• Supports resistive loads and capacitive loads
• 1 Channel Output, Up to 400W
• Input and Output with Screw Terminals, Safe and Reliable
• Trailing edge version
• Enables to control ON/OFF and light intensity of connected triac dimmable led light or led driver
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
• Supports self-forming zigbee network without coordinator and add other devices to the network
• Supports find and bind mode to bind a ZigBee remote
• Supports zigbee green power and can bind max. 20 zigbee green power remotes
• Compatible with universal ZigBee gateway products
• Can be controlled by universal 8-230V input single wire momentary push switch
• Mini Size, Easy to be Installed into a standard wall box
• Radio Frequency : 2.4GHz
• Waterproof grade: IP20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
ZigBee Clusters the device supports are as follows:
Input Clusters
• 0x0000: Basic
• 0x0006: On/off
Output Clusters
• 0x0019: OTA

Operation

1.Do wiring according to connection diagram correctly.
Size(LxWxH)
2.This ZigBee device is a wireless receiver that communicates with a variety of ZigBee compatible systems. This
receiver receives and is controlled by wireless radio signals from the compatible ZigBee system.

3. Zigbee Network Pairing through Coordinator or Hub (Added to a Zigbee Network)

Step 1: Remove the device from previous zigbee network if it has already been added to, otherwise pairing will
Remarks
fail. Please refer to the part "Factory Reset Manually".
Step 2: From your ZigBee Controller or hub interface, choose to add lighting device and enter Pairing mode as
instructed by the controller.
Step 4: Connected light will blink 5
times and then stay solid on, then the
device will appear in your controller's
menu and can be controlled through
controller or hub interface.
• 0x0003: Identify • 0x0004: Groups
• 0x0005: Scenes
• 0x0b05: Diagnostics
• 0x0008: Level Control
A1-A2: 8-230V
Reset Min.Set
N
AC 100-240V
OUT
L L N N
Step 3: Re-power on the device to set
it into network pairing mode
(connected light flashes twice
L
slowly), 15 seconds timeout, repeat
the operation.
AC Power
50/60Hz
