Summary of Contents for ADDA-TOP T-TOP

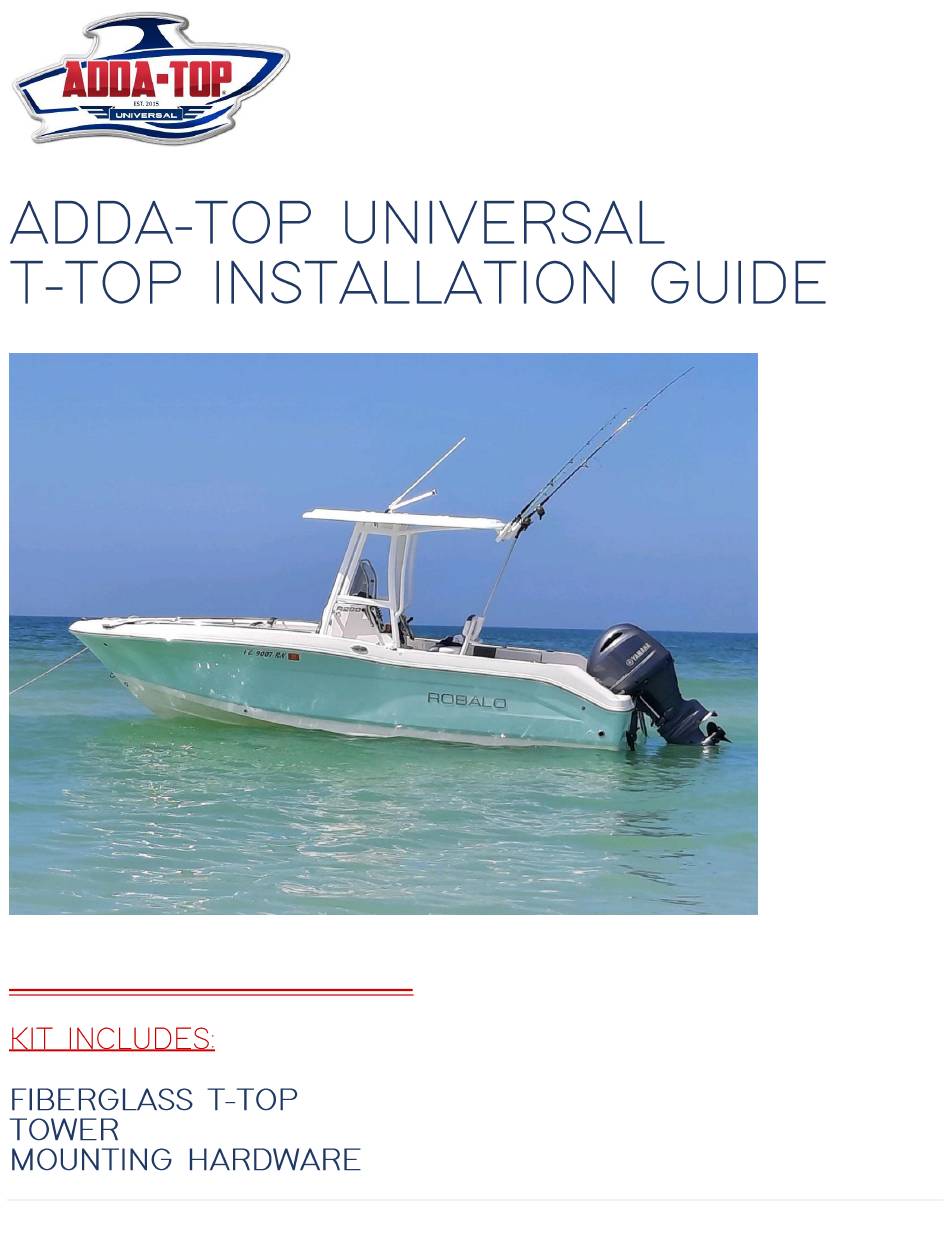

- Page 1 1 | P a g e...
- Page 2 Read through this entire installation guide before beginning. Do an inventory check. Compare what you received with the parts list below. If you are missing any parts, contact us before starting the installation. Make all measurements before you begin to ensure the T-top is installed in the correct position.
- Page 3 STARBOARD AND (1) PORT LEG FIBERGLASS TOP (2) 3x5 STANDOFF BRACKETS (2)2X4 STANDOFF BRACKETS (4) BACKING PLATES (8) ROUND TOP WASHERS 3 | P a g e...
- Page 4 (8)-5/16” Stainless Bolts (8) 3/8” Stainless Pan Head Screws (8)-5/16” Stainless Nyloc Nuts (4)-Stainless Locking T-bolts (4)-M10 Stainless Nyloc Nuts (8) Stainless #14 Tapping Screws (24) Stainless Washers S T E P O N E: ATTACHING THE TOP TO THE TOWER Your Top is predrilled with 8 holes for tower installation.
- Page 5 Take each designated leg and align with the pre-drilled holes in the top. Use the (8) 3/8” Stainless Pan head screws and fasten. The (2) shorter pan head screws are for the rear pads. The two large mounting pads on the tower go to the front and the small pads go to the rear. (** we recommend applying anti-seize or 5200 for installing stainless hardware, Take a 3/8”...
- Page 6 S T E P T W O: INSTALLATION OF THE OPTIONAL UPGRADES: ELECTRONICS BOX, GLOVE BOX, LED LIGHTS & ROD RACKS There are guide tabs on the underside of the top to align the e-box. The holes will need to be drilled with a 1/4'”...
- Page 7 THE CONSOLE SHOULD BE BETWEEN 2 TO 5 INCHES. (SEE ATTACHED DIAGRAM 6B) Your ADDA-TOP Tower is made with a universal groove that allows for adjustability. Taking your locking T-bolt, align your standoffs where you can flush mount one side to the console and the other to the rail. The side that attaches to the console needs to be drilled for the (8) 5/16”...
- Page 8 Attaching the stand-offs help determine your port and starboard distances. Once all four standoffs are in place, you will be ready to attach the feet to the deck. S T E P F O U R: ATTACHING YOUR FRAME TO YOUR DECK Once you have your stand-off brackets attached you are clear to attach your feet.
-
Page 9: Wiring Instructions
INSTALLATION COMPLETE! Add your boat to our customer gallery! After you have installed your RT Marine AddaTop T-Top, take some photos and send them to us – info@rtmarine.net. We thank you for choosing RT Marine! 9 | P a g e... -
Page 10: Important Notices
IMPORTANT NOTICES: NOT A PLATFORM!!! NO JUMPING, DIVING, SITTING, STANDING ON TOP! -WE SUGGEST USING ANTI-SEIZE ON ALL BOLTS. STAINLESS BOLTS CAN SEIZE WHEN UNDER HEAT AND PRESSURE. WE RECOMMEND HAND TIGHTENING ALL HARDWARE BEFORE USING IMPACT WRENCHES. -WE SUGGEST USING MARINE GRADE SILICONE (EX. 3M 5200) ON ALL MOUNTING AREAS. - CARE &... - Page 11 STAND OFF DIAGRAM (6B) ** You want to get your stand offs preferably in the lateral to the console and as close to the elbows as possible. See diagram for reference. Optimal is as forward to the bow as possible on the lateral and as high on the rear leg as possible.
