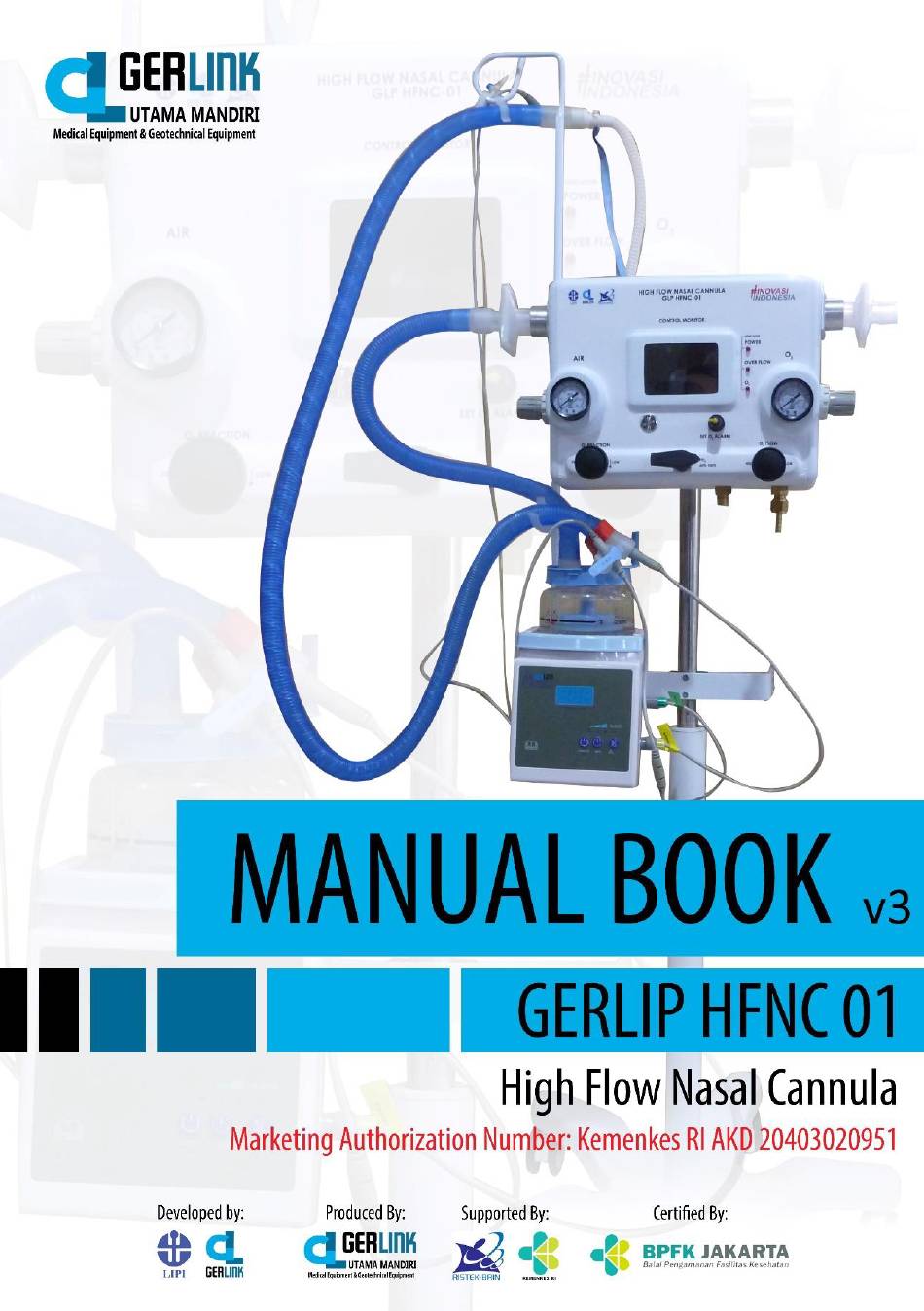

GERLINK UTAMA MANDIRI Gerlip HFNC 01 Manual Book

GERLINK UTAMA MANDIRI Gerlip HFNC 01 Manual Book

High flow nasal cannula

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the Gerlip HFNC 01 and is the answer not in the manual?

Questions and answers

Summary of Contents for GERLINK UTAMA MANDIRI Gerlip HFNC 01

  • Page 2 Introduction GLP HFNC 01 is the first High Flow Nasal Cannula product produced by children of the nation in Indonesia. This product is the result of research collaboration by the LIPI Research Institute and PT. Gerlink Utama Mandiri. This product is one product that needed by COVID-19 patients during this pandemic.
  • Page 3 Components Flow Control Humidified Heater Nasal Cannula (HFNC 01C01) (HFNC 01C02) (HFNC 01C03) Main Unit Main Unit Disposable Product Humidified Chamber Breathing Circuit Bacteria Filter (HFNC 01C04) (HFNC 01C05) (HFNC 01C06) Disposable Product Disposable Product Disposable Product Connector Medical Hose Oxygen Tank Regulator Oxygen Hose (JIS/CIG and Omega)
  • Page 4 Tiang Penyangga (HFNC 01C14) Support Main Component Features 1.1. Flow Control...
  • Page 5 1. O fraction adjuster. 2. Power button. 3. FiO selector. 4. Air/compressor inlet. 5. O alarm adjuster. 6. O inlet. 7. O flow adjuster. 8. O regulator adjuster. 9. O indicator lamp. 10. Over flow indicator lamp. 11. Power indicator lamp. 12.
  • Page 6 1.2. Heater Humidifier 1. Temperature value display (in Celcius). 2. Power indicator lamp 3. Heating mode indicator lamp 4. Warning indicator lamp 5. Power, heating mode, and silent alarm button 6. Alarm indicator lamp 7. Heating mode indicator lamp 8. Heater wire 9.
  • Page 7 Work Flow 1. O source and compressed air get in to the regulator box, both adjusted with pressure to 2 bars, it same with 2 kg/cm 2. After O set by regulator at first branch to nozzle through ball valve and needle valve, another one get in 3 way valve 3.
  • Page 8 6. If that air flow through nozzle and entering the ventury hole, then the air at around the nozzle will suctioned. If the needle valve fraction closed, then air from the outside will sunctioned thruogh check valve 7. If needle valve opened, then supply from 3 ways valve will enter with 2 bars pressure.
  • Page 9 Installation Guide 1. Install lower supporting pillar to the wheels. 2. Tighten the lower section of pilar with 8mm L key. 3. Loose the knob, then pull the pillar until stuck, then tighten again.
  • Page 10 4. Loose the holder of Humidifier slot with 10 mm key, then install it to the pillar.
  • Page 11 5. Loose the holder of hook pillar with 10 mm key, install the pillar, then tighten back.
  • Page 12 6. Put the Humidifier on the holder.
  • Page 13 7. Put the Flow Control into upper holder. 8. Result of installation. 9. Put Chamber on the Humidifier.
  • Page 14 10. Install Bacteria Filter to the both side of respiratory.
  • Page 15 11. Install 50 cm Breathing Circuit to the respiratoru outlet. 12. Install Nasal Cannula to the 150 cm Breathing Circuit. 13. Install 150 cm Breathing Circuit to the Humidifier.
  • Page 16 14. Install temperature cable (green connector) to the temperature probe port. 15. Install temperature sensor connector to Humidifier and the end of 150 cm Breathing Circuit. 16. Install Heater Wire (yellow) to it’s port.
  • Page 17 17. Install power supply wire to power connector of Flow Control. 18. If using oxygen tube, use HFNC 01C08 connector for connecting oxygen tube and oxygen hose. 19. If using central gas oxygen, use HFNC 01C10 connector to for connecting double regulator and hospital central gas oxygen wall.
  • Page 18 Instruction For Use 1. Make sure that Flow Control has been connected with oxygen tube or central gas. 2. Turn on Humidified Heater by pressing power button. Indicator lamp will be turned on. 3. On the Humidified Heater, set heating mode to level 2 (for non-invasive ventilator.
  • Page 19 4. Turn on the Flow Control with pressing power button. mode corresponding to patient’s need. 5. Set FiO 6. Set O regulator to 2-3 bars.
  • Page 20 flow corresponding to patient’s need. 7. Set O fraction corresponding to patient’s need. 8. Set O 9. Set O alarm to remind that oxygen supply will running out. See the Set Alarm monitor.
  • Page 21 Maintenance Guide 1. Release power supply wire from power source if HFNC not in use. 2. Release oxygen hose and compressed air hose on the Flow Control if not in use. 3. Release oxygen hose from oxygen supply/source. 4. Prevent HFNC from water. 5.
  • Page 22 Troubleshooting Flow Control Indication Analysis Action - Set O Replace with new O flow below value tube Beeping O of first setting - Empty oxygen alarm Beeping over Set O Flow above 70 - Check O regulator flow alarm LPM (device limit (Set 2-3 Bar) maximum) - Low the O...
  • Page 23 Information If you have any question, advice, or complaint, please contact us: Address : Tanjungsari Raya Street No. 16 Antapani Wetan, Sub- District of Antapani, Bandung City, West Java – Indonesia Website : www.gerlink.id Telephone : +6222-20531020...
  • Page 24 www.gerlink.id...
