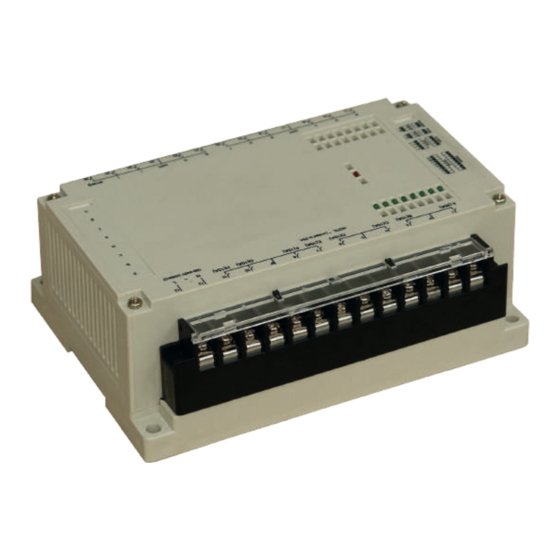

Model : AYLNA switch controller
General features
Hybrid system with all kinds of infrastructure,
wired and wireless.
Manages lighting, curtain, shutter, unlocking,
air conditioning, water, electricity and
energy controls.
"All in one" technology provides 128 different
input and output solutions over a single system.
Does not need to be programmed.
The down inputs control the top outputs
Technical Information
Total Number of Linye
8 output.
Power Range
180V 〜 240V (50 Hz)
Operating Power Consumption
≤ 100mA
Power Consumption in Standby
≤ 100mA
Operating Environment
-10 〜 70 °C
Relative Humidity
≤80% （non-condensing ）
Size (L * W * H)
154mmx110mmx60mm, 8.5 DIN Rail Unit
154mm
Number of Line According to
Usage Purpose
- Power cut 1 line
- Door lock on / off 2 puls contact (4-6 outputs)
- Curtain/Blinds Open/Close 2 Line
- Socket control 1 Line (domestic type
contactors)
- Each lighting 1 line
- Watercut, Aypro motorized valve, 2 linye
- Thermostatic hydraulic valve 1 linye
Use Details
1
2
A(20A)
B(10A) C(10A)
G
H
I
110mm
J
a
b
14
15
60mm
A
B
3
4
5
6
7
8
9
10
11
12
13
D(10A)
E(10A) F(10A)
G(10A) H(10A)
N
L
F
E
c
com
d
e
f
g
h
com
i
j
emerg
16
17
18
19
20
21
22
23
24
25
26
C
D
Advertisement
Table of Contents
Summary of Contents for AYPRO aLink Alyna
- Page 1 - Socket control 1 Line (domestic type ≤ 100mA contactors) Power Consumption in Standby - Each lighting 1 line ≤ 100mA - Watercut, Aypro motorized valve, 2 linye Operating Environment - Thermostatic hydraulic valve 1 linye -10 〜 70 °C Use Details Relative Humidity ≤80% （non-condensing ）...
- Page 2 Explanation DipSwitch Setting H: Curtain Configuration: 8 CH. DIN modules 8 channel, 3 isolated group poutput: When DIN module is configured to switch contact Relay output , each output must be that can be configured to four curtain ,the channel supports pass-through connected to the...
