Introduction

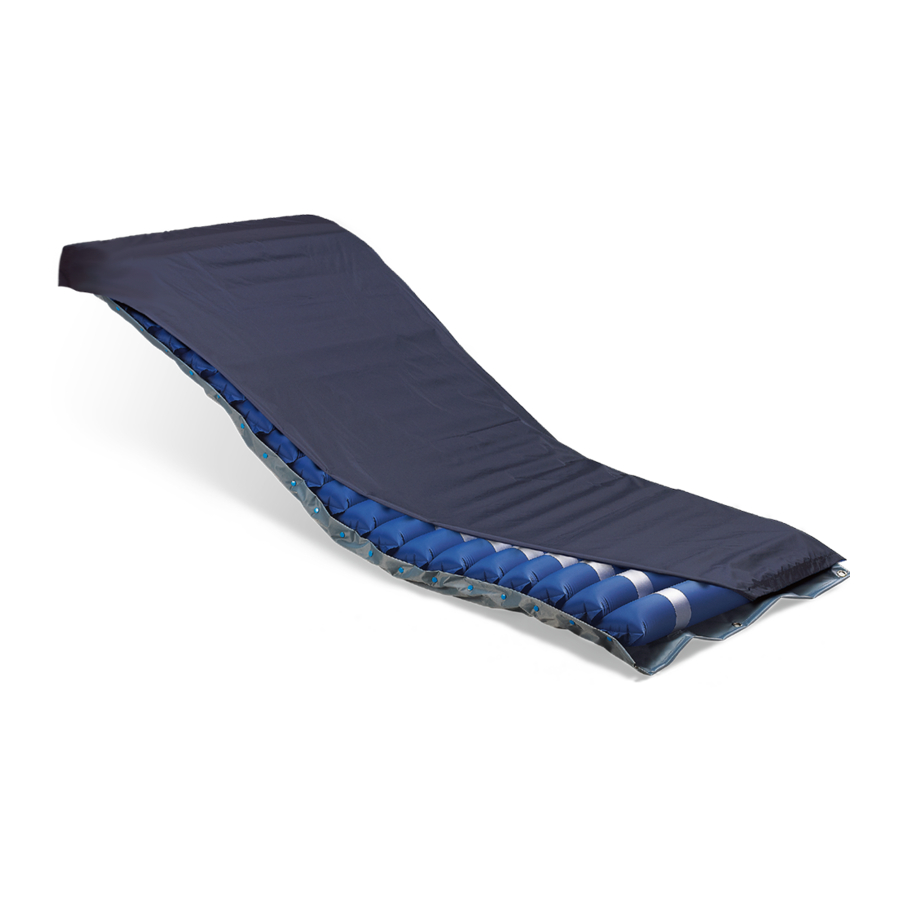

Thank you for purchasing Rossmax cell air mattress. With proper care and use, your air mattress will provide you with many years of reliable treatments. We encourage you to thoroughly read this guide-book to learn about setting up and the features of your air mattress. The mattress relieves pressure by sequentially deflating and inflating alternate air cells on approximately 12 minutes timed intervals. It is intended to help and reduce the incidence of pressure ulcers while optimizing patient comfort, long term care of patients suffering from pressure ulcers.

warning Attention warning :
Consult the accompanying documents. Please read this manual carefully before use. Please be sure to keep this manual.

Name/Function of each parts

Control Panel
ON/OFF Switch
Pressure Adjust Knob
Hanger
Air Hose Port

Product caution

Do not smoke on or near the pump.
Keep the pump away from heated surfaces.
Explosion risk if used in the presence of flammable anesthetics.
Never operate this product if it has a damaged cord or plug, if it is not working properly, please contact Rossmax service if necessary.
Replace fuse as marked: T1A 250V.
Do not use with patients who have a spinal cord injury.
Close supervision is necessary when this product is used on or near children.
Use this product only for its intended use as described in this manual. Do not use other mattress not recommended by manufacturer.
Do not modify this product without authorization of the manufacturer.
If you suspect that you may have had or are having an allergic reaction, please consult your physician immediately.
Do not service or maintain device while in use.

How to use

Place the mattress on the bed frame with the hose end at the foot section of the bed frame.
Using the integrated hangers, securely hang the pump on the bed end at the foot end or place on a smooth flat surface.
Connect the air hoses from the mattress to the pump unit.
Note: Check and ensure the air horses are not kinked or tucked under mattress.
Plug the pump into a wall electrical outlet. Be sure the power cord is safely away from possible hazards.
Note: After installation, the extra length of power cord, if any, should be neatly arranged to avoid any tripping accidents.
Turn on the power switch on the control panel of the pump. The pump will begin to inflate the mattress.
Note: The pump should only be used with mattress recommended by manufacturer. Do not use it for any other purpose.
While inflation, adjust the pressure setting based upon patient comfort level by turning the pressure adjustment knob clockwise to increase firmness.
Note: Every time the mattress is set up for use, it is recommended that the pressure first to be set to max., and then adjust air mattress weight levels to the desired softness after set up has been completed.

Clean and disinfection

Wipe the pump unit with a damp cloth and mild detergent. If other detergent is used, choose one that will have no chemical effects on the surface of the plastic case of the pump unit.
Wipe down the mattress with warm water containing a mild detergent and air dried thoroughly before use.
Note:
- Do not use phenolic based product for cleaning.
- After cleaning, dry the mattress without direct exposure sunlight.

Troubleshooting

Symptoms	Check point/Correction
Power is not ON	Check if the plug is connected to mains. Check for a blown fuse.
Patient is bottoming out	Pressure setting might be inadequate for the patient, adjust higher pressure and wait for a few minutes for best comfort.
No air produced from some air outlets of the air tube connector	This is normal since there is alternating mode, air outlets take turns to produce air during their cycle time.

warning Note: If the pressure level is consistently low, check for any leakage (tubes or air hoses). If necessary, replace any damaged tube or hoses or contact Rossmax service if necessary.

Specification

Pump unit
Dimension (L x W x H)	26.5 x 13.5 x 10 cm
Weight	3 lbs (1.4 kg)
AC power source	AC 230V/50Hz or AC 220V/60Hz or AC 110V/60Hz
Cycle time	12 mins
Mattress
Dimension (L x W x H)	79"×33.86"×3.74" (200 ×86 ×9.5 cm)
Weight	10 lbs (4.5 kg)
Weight Capacity	298 lbs (135 kg)
Operating Condition	10°C to 40°C (50°F to 104°F),10% to 75% RH; 700~1060hPa
Storage & Transportation Condition -18°C to 43°C(0°F to 110°F),10% to 95% RH
	Type BF applied parts
IP Classification	IP21: Protection against harmful ingress of water and particulate matter
